Main Dimensions & Performance Data
| d | 304.8 mm | Bore diameter |
| D | 342.9 mm | Outside diameter |
| B | 19.05 mm | Width |
| Cr | 35,000 N | Basic dynamic load rating, radial |
| C0r | 69,000 N | Basic static load rating, radial |
| nG | 1,660 1/min | Limiting speed |
| ≈m | 2.36 kg | Weight |

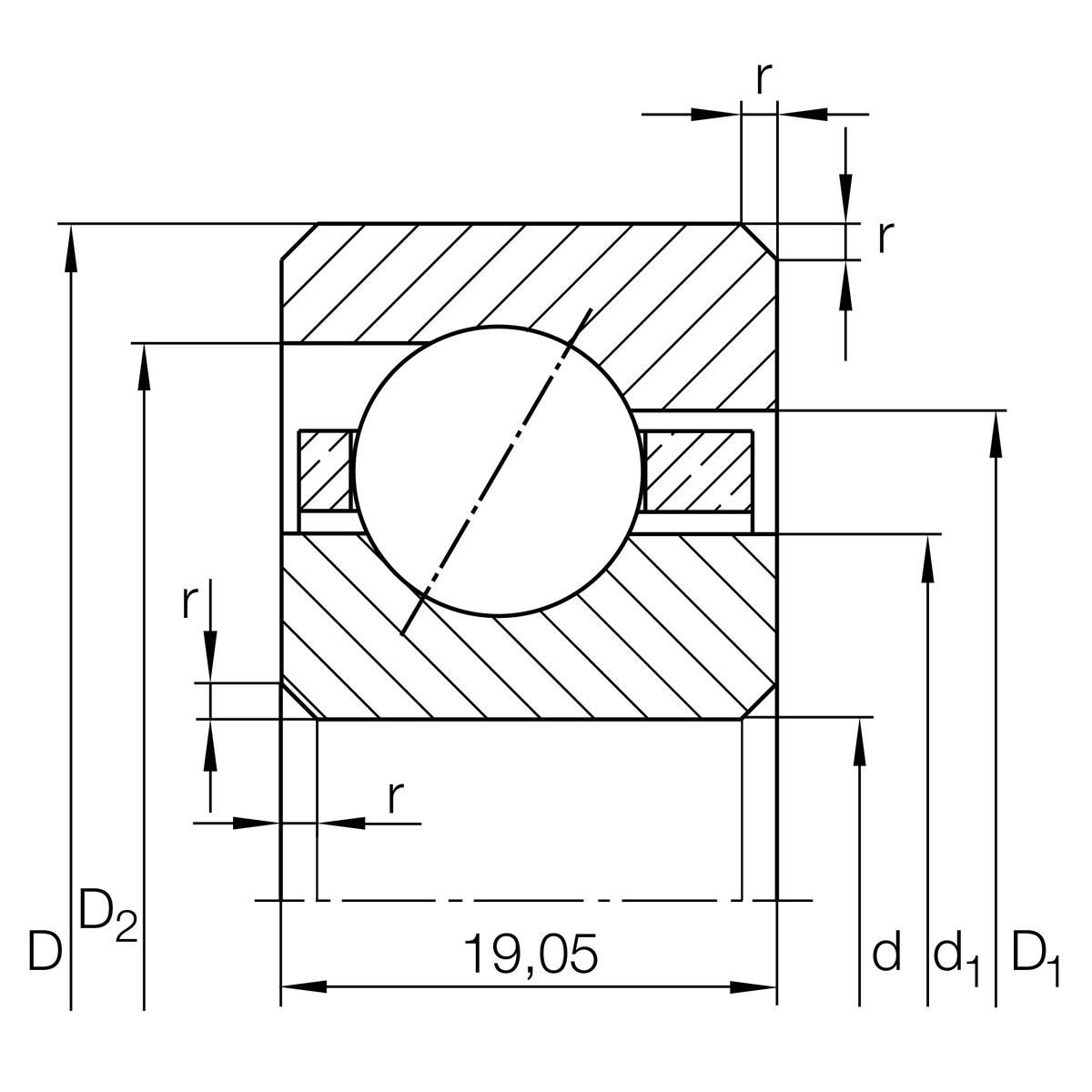

Dimensions
| rmin | 2 mm | Minimum chamfer dimension |
| d1 | 318.9 mm | Shoulder diameter inner ring |
| D1 | 328.8 mm | Shoulder diameter on outer ring wide side face |
| D2 | 332.8 mm | Shoulder diameter on outer ring small side face |
| α | 30 ° | Contact angle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Logistical code | HLE | - |
| Sealing | Without | Not sealed |
| Cage | YP | brass sheet metal |
| Tolerance class | PL1 | Class PL1, Normal |
| Lubricant | Without | Bearing not greased |
