Main Dimensions & Performance Data
| d | 9.5 in | Shaft diameter |
| H | 31 in | Housing height |
| B | 36 in | Length base |
| ≈m | 1,889.996 lbs | Weight |

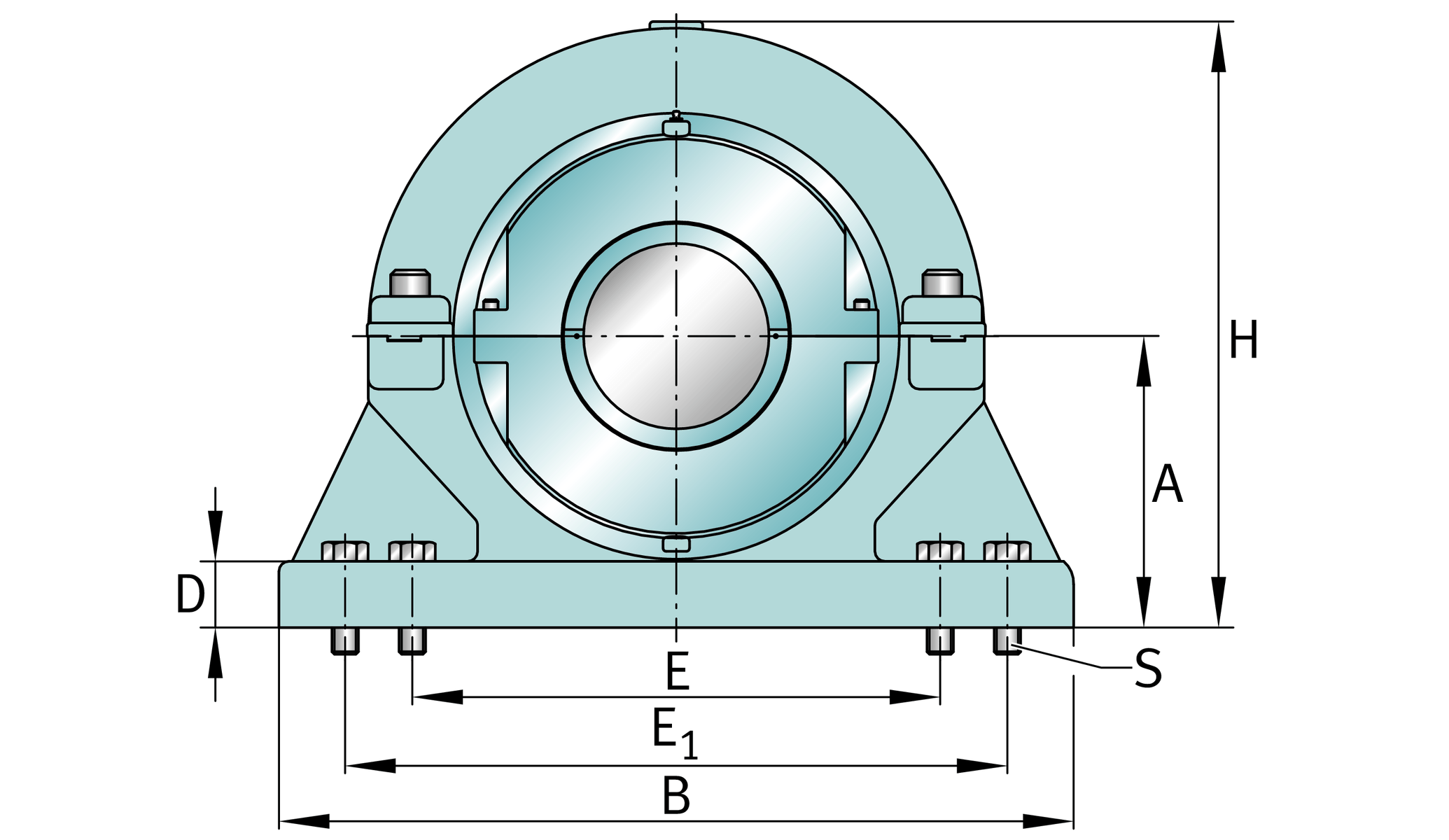

Dimensions
S3BCH-908-FL | Complete unit float | |
S3BCH-908-HD | Complete unit held | |
PH-315 | Housing designation | |
| A | 15.5 in | Center height |
| C | 16 in | Base width |
| D | 3 in | Base height |
| Emin | 25.625 in | Base hole distance 1 min |
| Emax | 27.125 in | Base hole distance 1 max |
| F | 12 in | Base hole distance 2 |
| s | 4 | # of mounting bolts |
| s | 1.75 in | Mounting bolt diameter |
S3BC-908-FL | Cartridge float bearing | |
S3BC-908-HD | Cartridge held bearing | |
S3C-1000 | Cartridge | |
| G | 13.1875 in | Lenght through bore |
| L | 22 in | Outside diameter cartridge |
18 lbs | Grease capacity | |
747 lbs | Cartridge weight | |
S3B-908-FL | Bearing float | |
S3B-908-HD | Bearing held | |
347 lbs | Bearing weight | |
1000 Grp | Bearing Group | |
| Cr | 366,755 lbf | Basic dynamic load rating, radial |
| C0r | 592,566 lbf | Basic static load rating, radial |
| Ca | 17,823 lbf | Basic dynamic load rating, axial |
920 1/min | Limiting speed | |
| D0 | 19 in | Outside diameter bearing |
| C0 | 8.307 in | Width inner ring |
| B0 | 4.906 in | Width outer ring |
