Main Dimensions & Performance Data
| d | 203.2 mm | Bore diameter |
| D | 228.6 mm | Outside diameter |
| B | 12.7 mm | Width |
| Cr | 15,600 N | Basic dynamic load rating, radial |
| C0r | 27,000 N | Basic static load rating, radial |
| nG | 2,600 1/min | Limiting speed |
| ≈m | 0.69 kg | Weight |

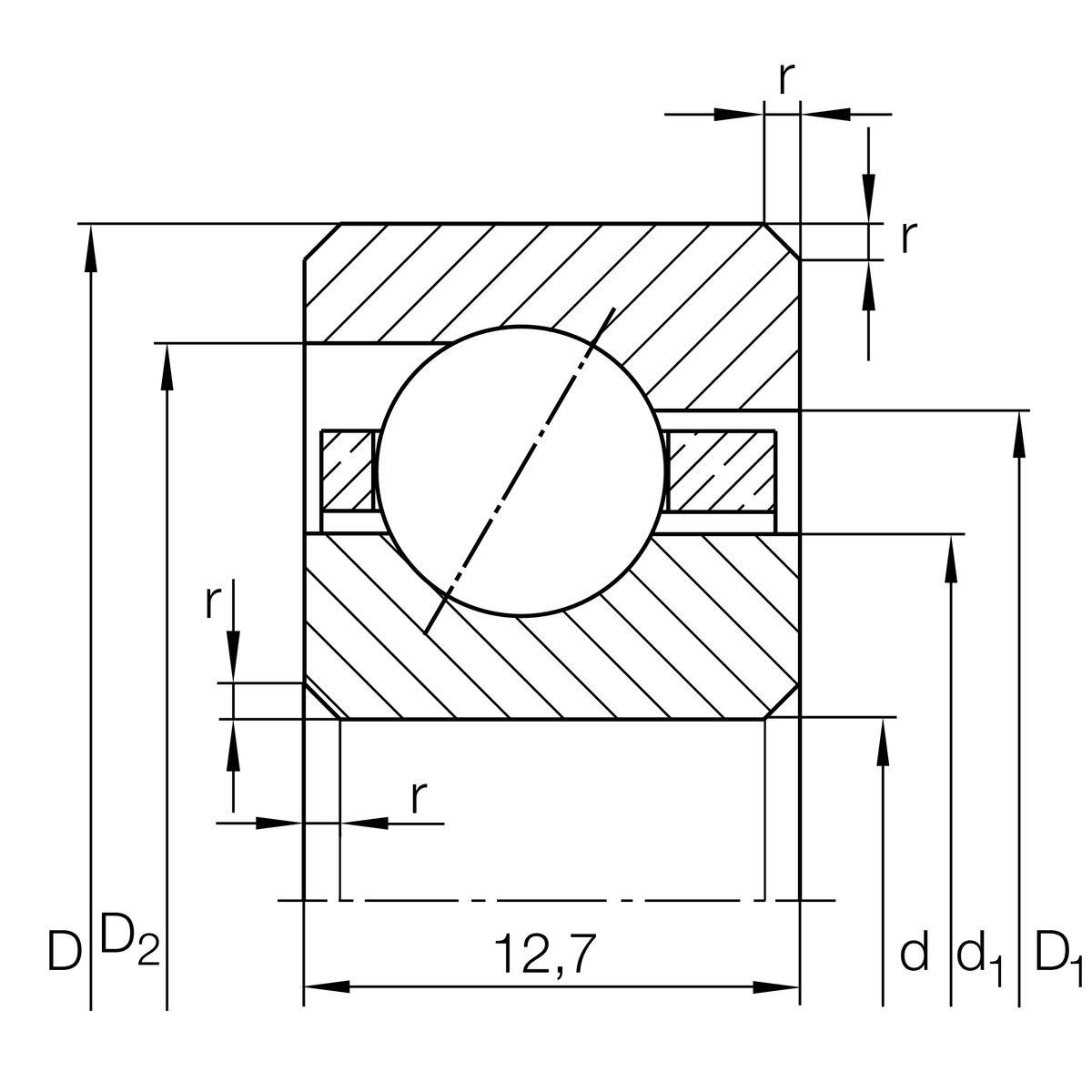

Dimensions
| rmin | 1.5 mm | Minimum chamfer dimension |
| d1 | 212.6 mm | Shoulder diameter inner ring |
| D1 | 219.2 mm | Shoulder diameter on outer ring wide side face |
| D2 | 221.8 mm | Shoulder diameter on outer ring small side face |
| α | 30 ° | Contact angle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Logistical code | HLE | - |
| Sealing | Without | Not sealed |
| Cage | YP | brass sheet metal |
| Tolerance class | PL1 | Class PL1, Normal |
| Lubricant | Without | Bearing not greased |
