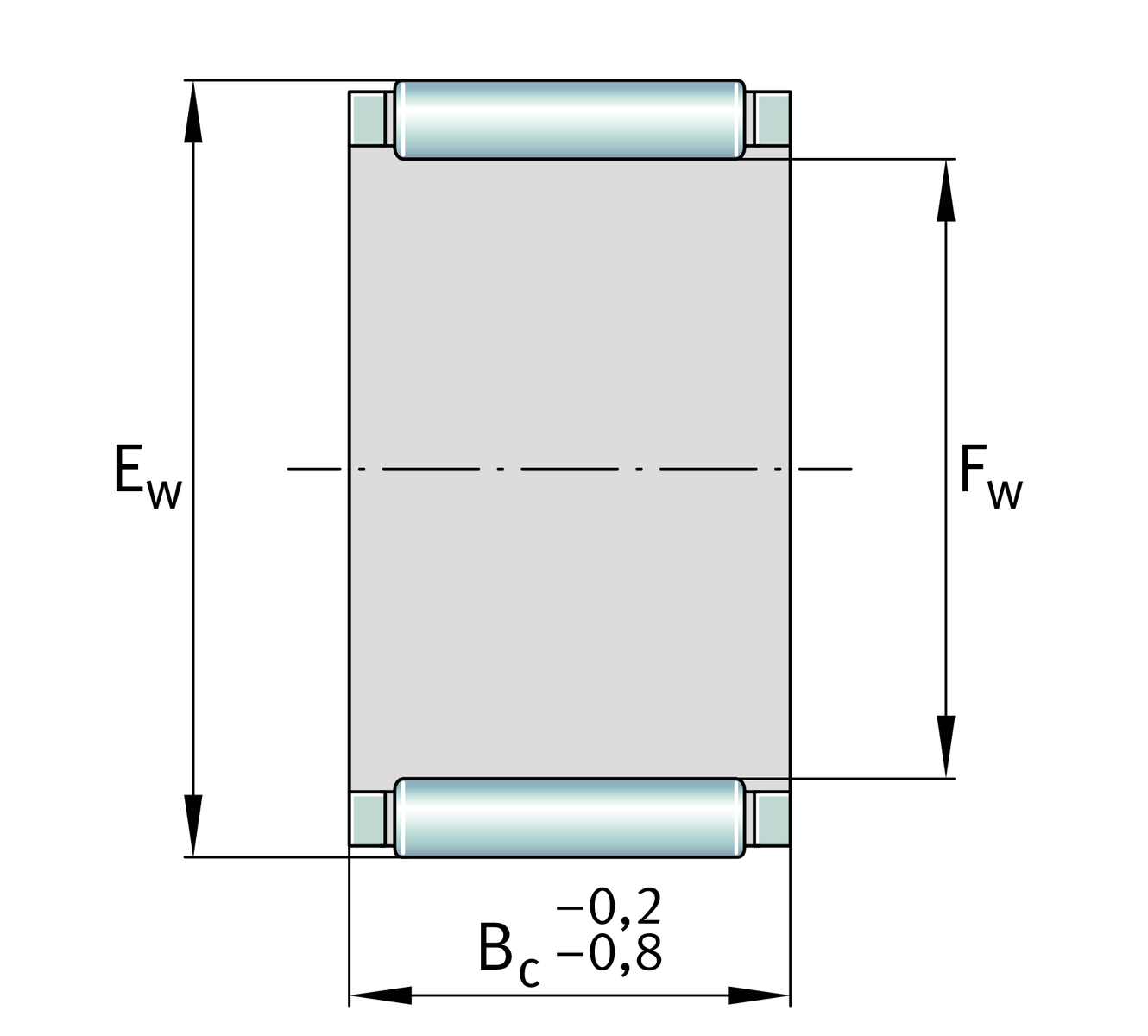

Main Dimensions & Performance Data
| Fw | 10 mm | Inner diameter of needle roller complement |
| Ew | 13 mm | Outside diameter of needle roller complement |
| Bc | 10 mm | Width |
| Cr | 4,750 N | Basic dynamic load rating, radial |
| C0r | 5,500 N | Basic static load rating, radial |
| Cur | 760 N | Fatigue load limit, radial |
| nG | 29,500 1/min | Limiting speed |
| nϑr | 24,900 1/min | Reference speed |
| ≈m | 1.57 g | Weight |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Cage | TV | Plastic Cage made from PA66 |
