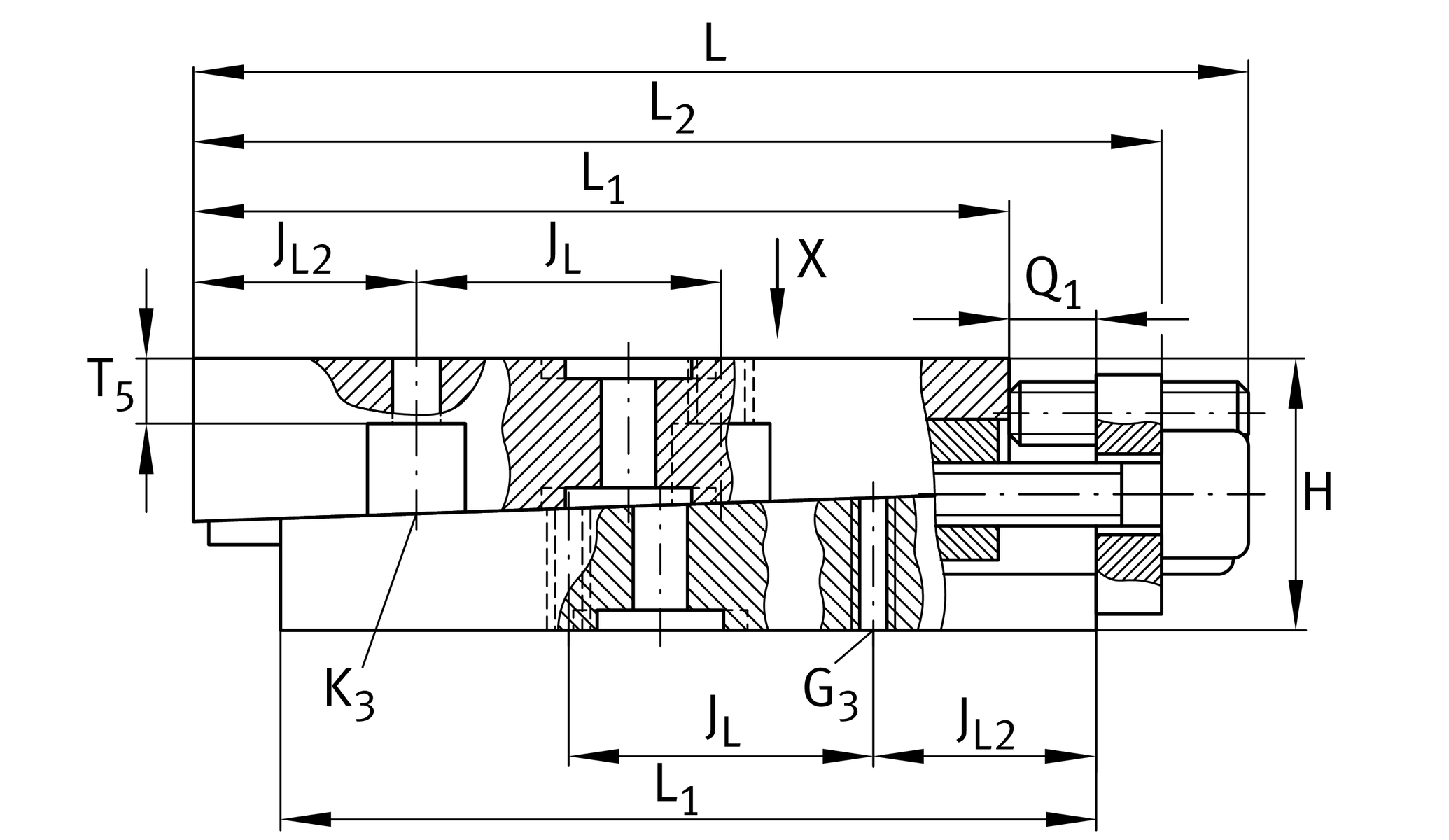

Main Dimensions & Performance Data
| L | 107 mm | length max |
| H | 25 mm | heigth min |
| B | 37.6 mm | width |
| ≈m | 0.632 kg | Weight |

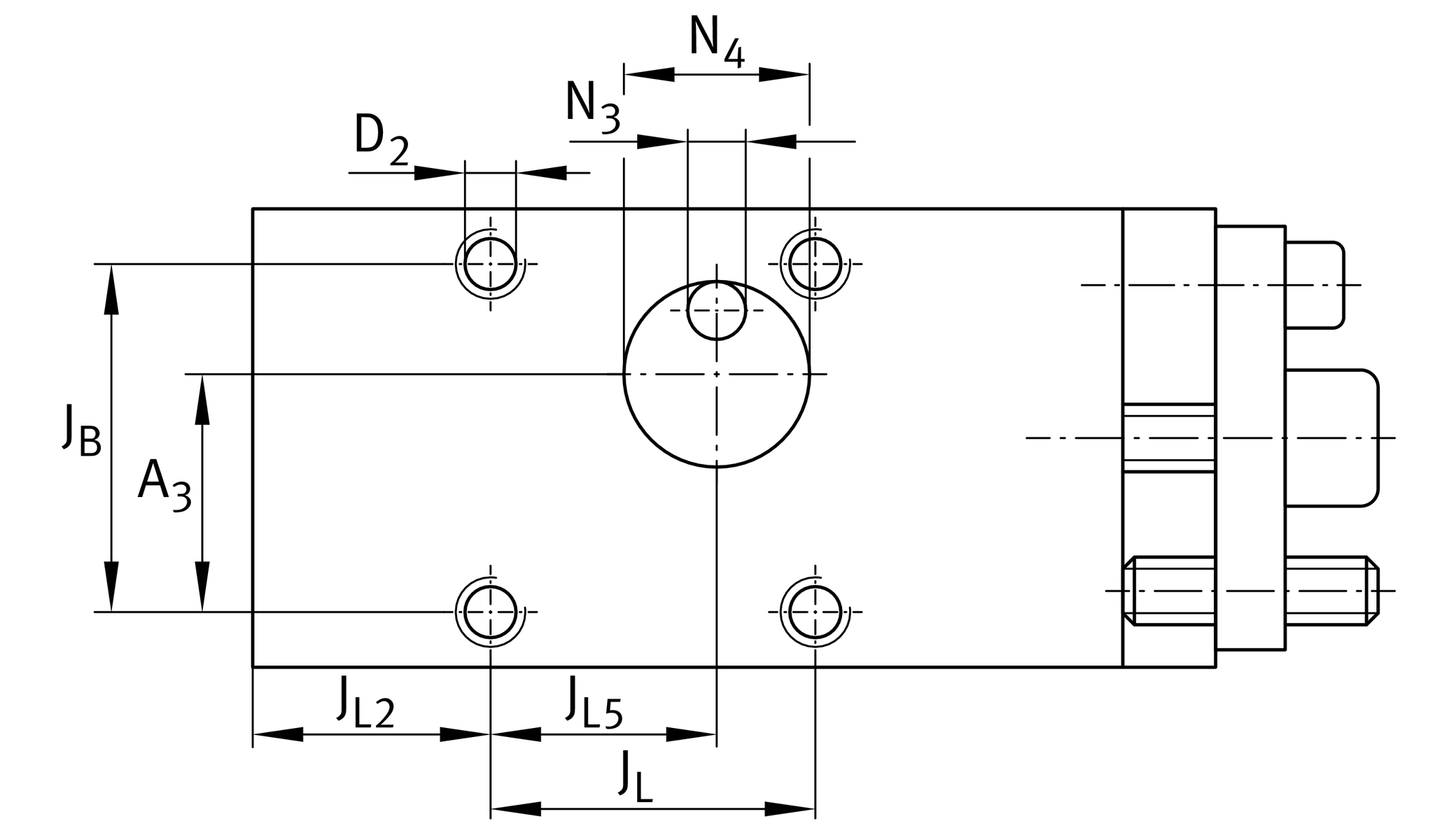

Mounting dimensions
| L1 | 85 mm | |
| L2 | 99 mm | max |
| JB | 31 mm | |
| TolJB | +0,1 | Upper tolerance |
| TolJB | -0,1 | Lower tolerance |
| JL | 38 mm | |
| TolJL | +0,1 | Upper tolerance |
| TolJL | -0,1 | Lower tolerance |
| JL2 | 20.5 mm | |
| JL5 | 20 mm | |
| Q1 | 8 mm | max |
| A3 | 22.3 mm | |
| N3 | 5 mm | 1 |
| N4 | 16 mm | |
| T5 | 6 mm |
Additional information

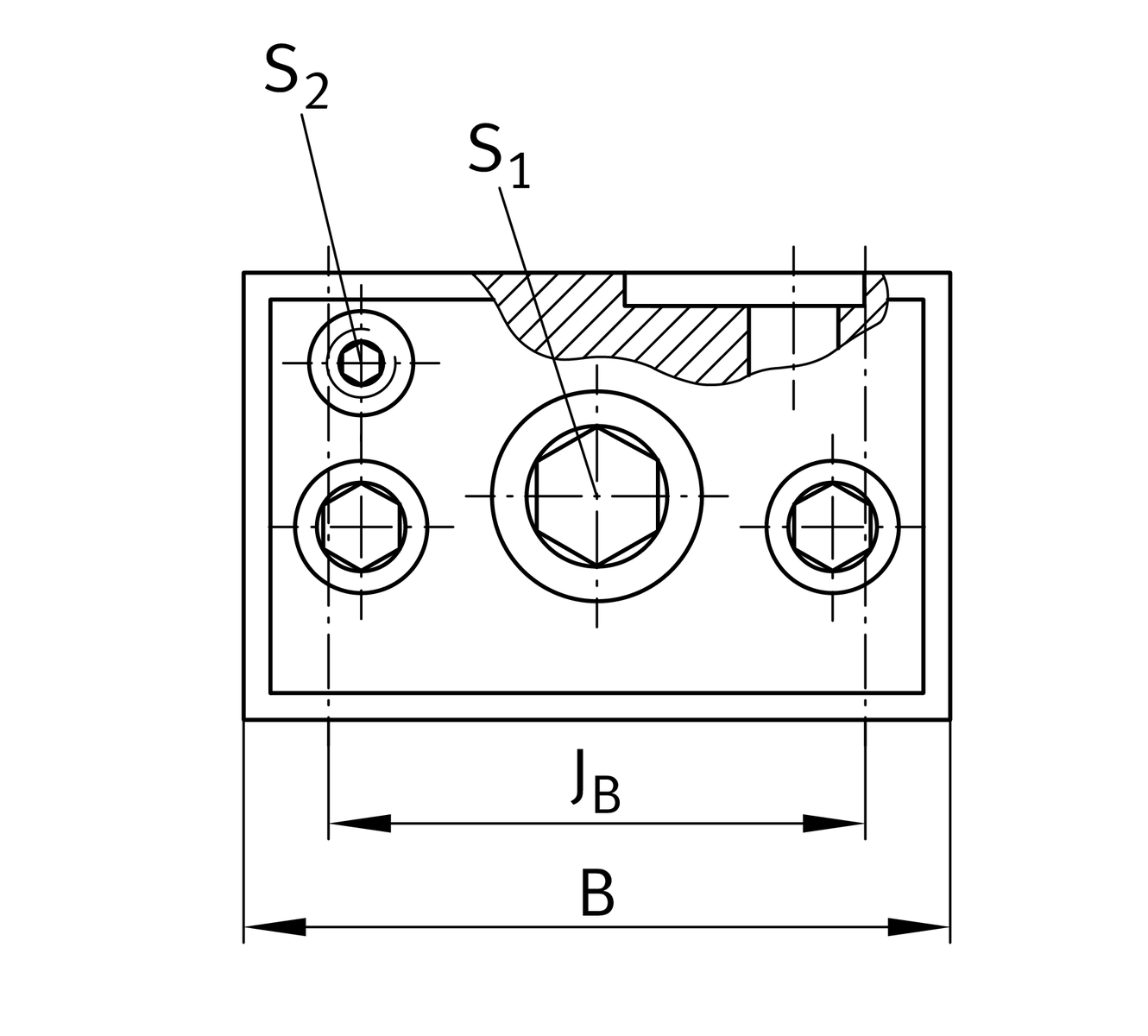

| S1 | 6 mm | adjustment screw hexagon socket |
| S2 | 3 mm | locking/extraction screw hexagon socket 2 |
| G3 | M4 | fixing screws DIN ISO4762-12.9 |
| MA G3 | 5 Nm | tightening torque |
| K3 | M4 | fixing screws DIN ISO4762-12.9 |
| MA K3 | 5 Nm | tightening torque |
| D2 | 5 mm | core hole |
| Δh | 0.4 mm | adjustment max |
0.05 mm | adjustment per screw revolution |
Related products
PR14061 | for linear roller bearing |
Your current product variant
| Size code | 18059 | |
| Version | A |
