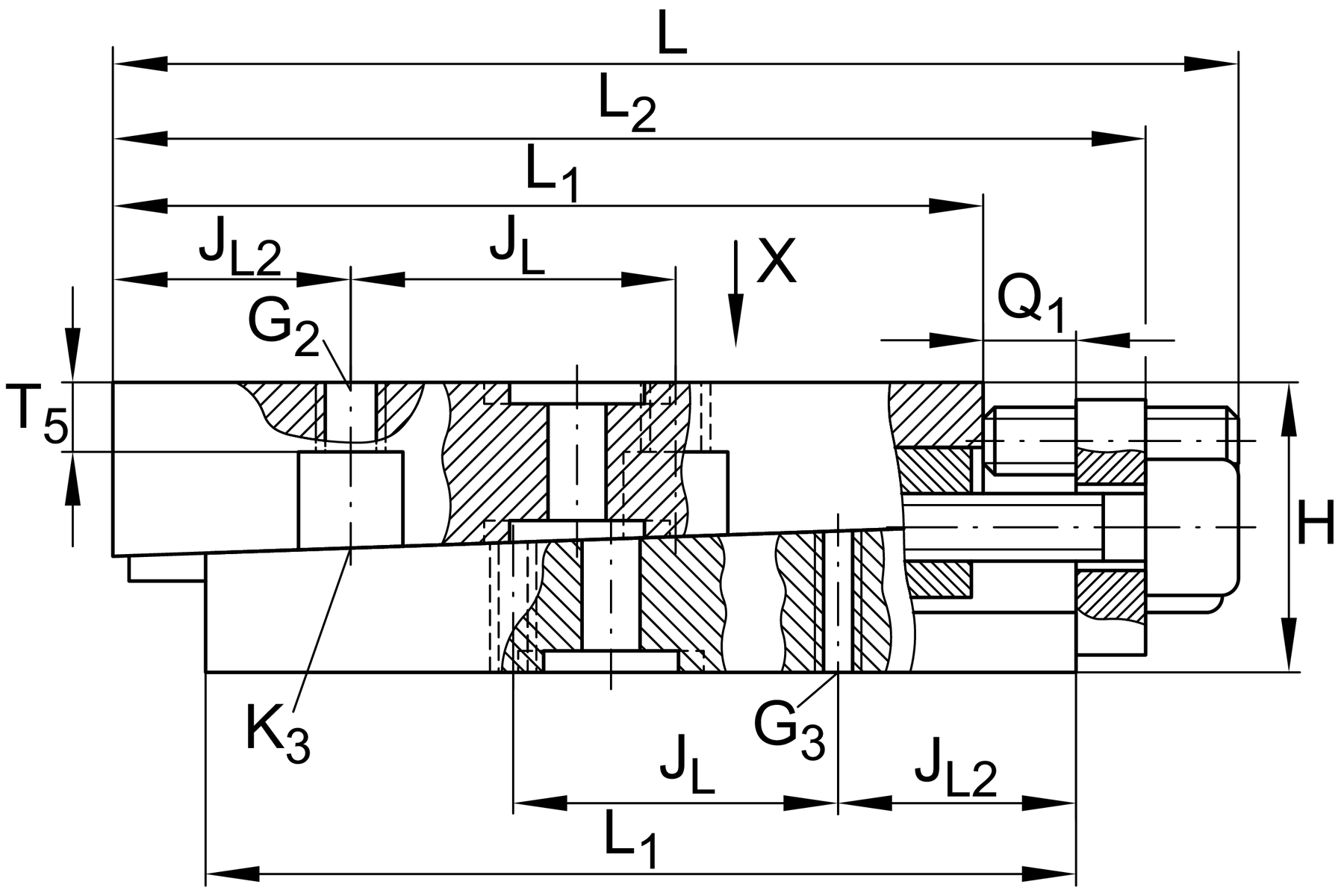

Main Dimensions & Performance Data
| L | 314 mm | length max |
| H | 38 mm | heigth min |
| B | 100 mm | width |
| ≈m | 8.37 kg | Weight |

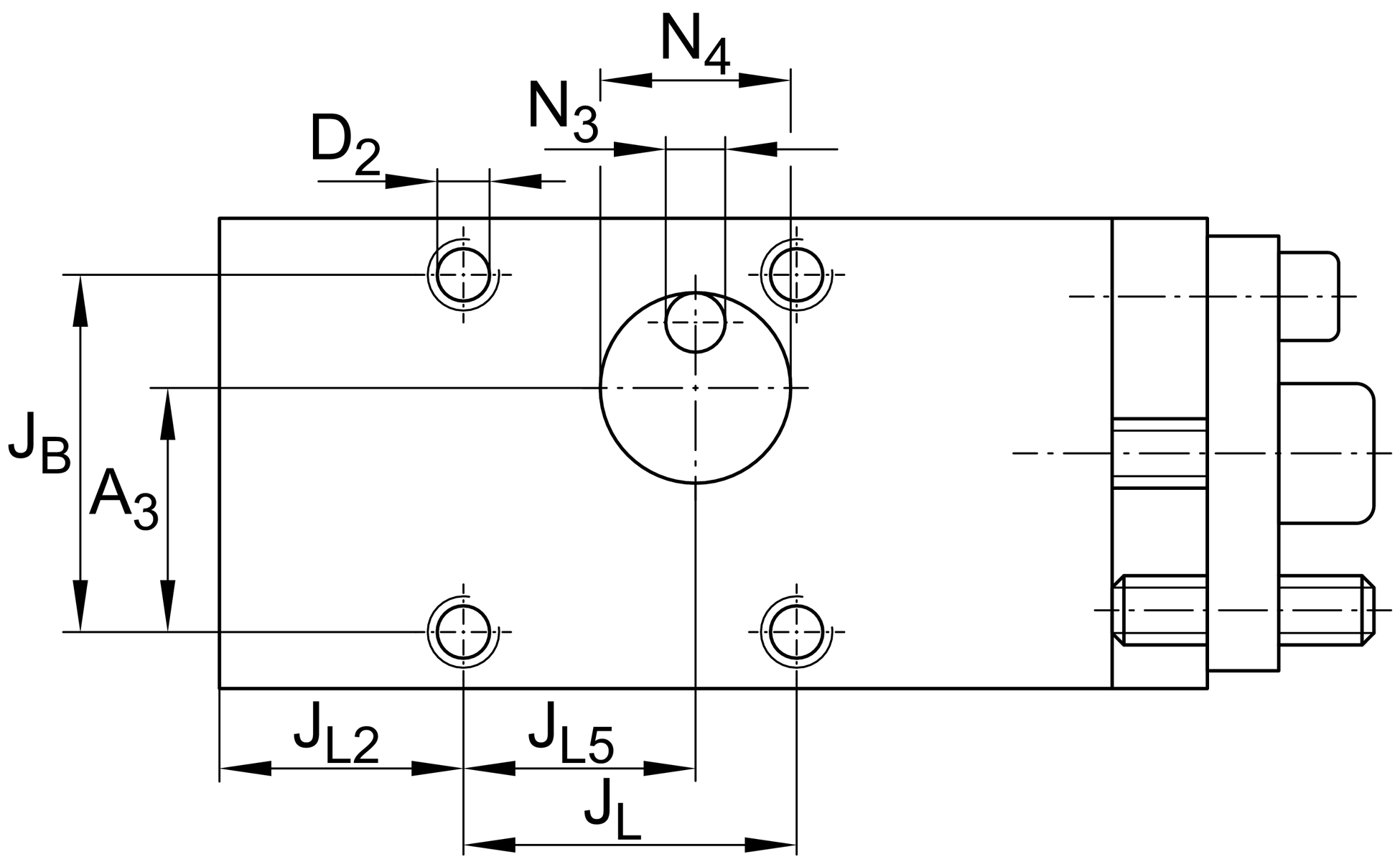

Mounting dimensions
| L1 | 280 mm | |
| L2 | 300 mm | max |
| JB | 82.5 mm | |
| TolJB | +0,1 | Upper tolerance |
| TolJB | -0,1 | Lower tolerance |
| JL | 101.5 mm | |
| TolJL | +0,1 | Upper tolerance |
| TolJL | -0,1 | Lower tolerance |
| JL2 | 89 mm | |
| JL5 | 53.5 mm | |
| Q1 | 10 mm | max |
| A3 | 41.25 mm | |
| A4 | 25 mm | |
| N3 | 8 mm | 1 |
| N4 | 10 mm | |
| T5 | 6 mm |

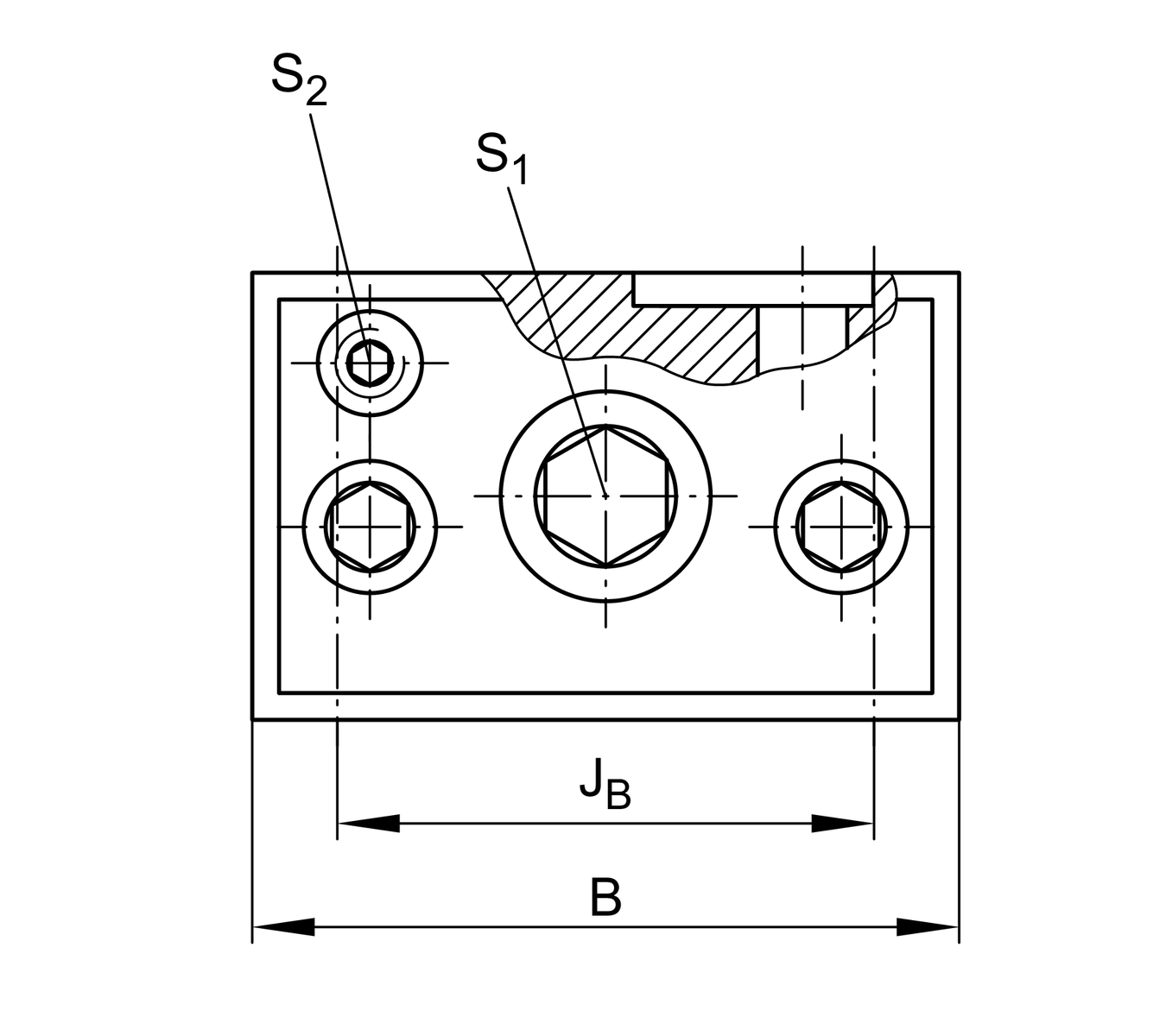

Additional information
| S1 | 12 mm | adjustment screw hexagon socket |
| S2 | 4 mm | locking/extraction screw hexagon socket 2 |
| G2 | M14 | fixing screws DIN ISO4762-12.9 |
| MA G2 | 220 Nm | tightening torque |
| G3 | M10 | fixing screws DIN ISO4762-12.9 |
| MA G3 | 83 Nm | tightening torque |
| K3 | M10 | fixing screws DIN ISO4762-12.9 |
| MA K3 | 83 Nm | tightening torque |
| D2 | 12.5 mm | core hole |
| Δh | 0.5 mm | adjustment max |
0.075 mm | adjustment per screw revolution |
Related products
RUS85280 | for linear roller bearing |
Your current product variant
| Size code | 85280 |
