VBS42

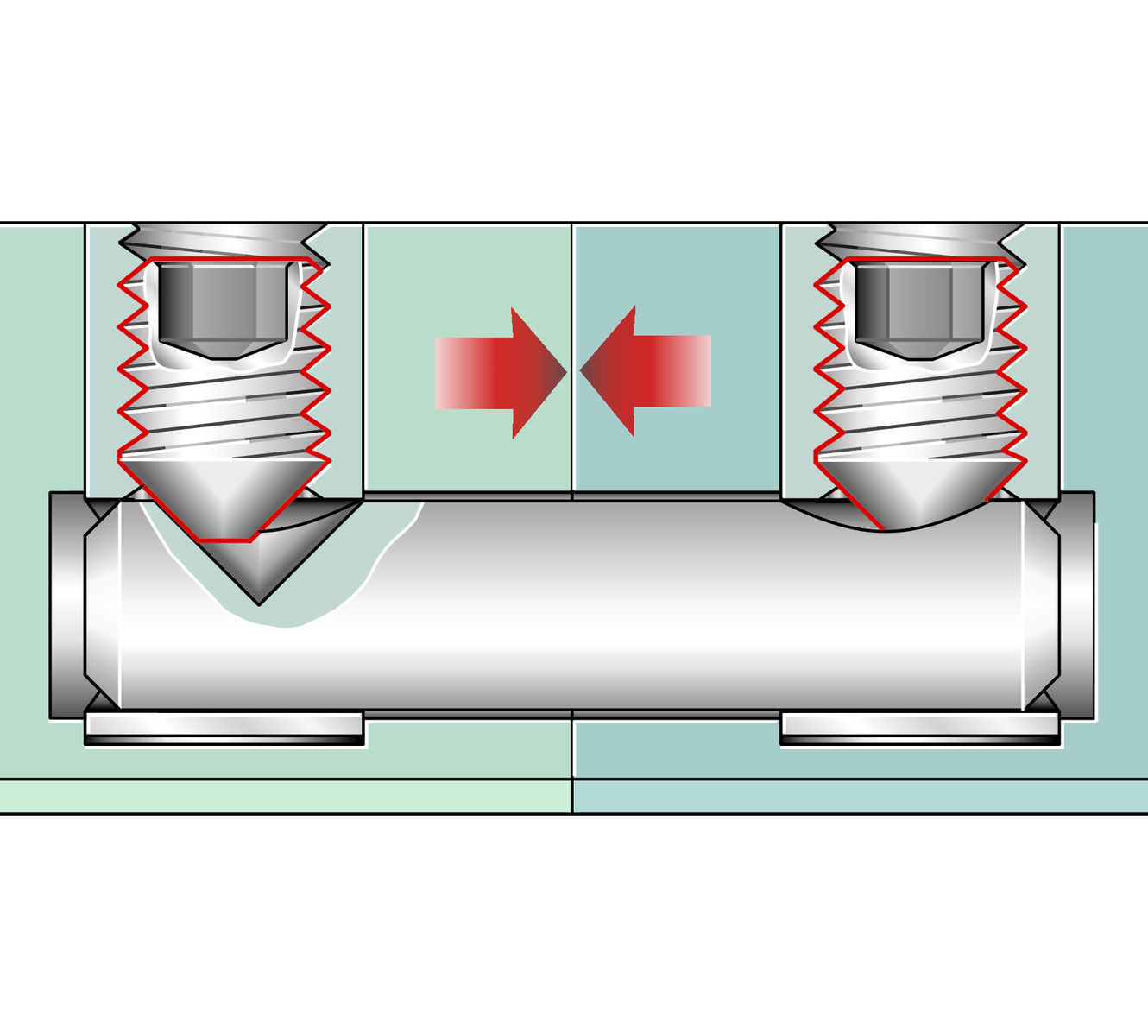

Guideway connectors VBS42

Thêm vào yêu cầu báo giá

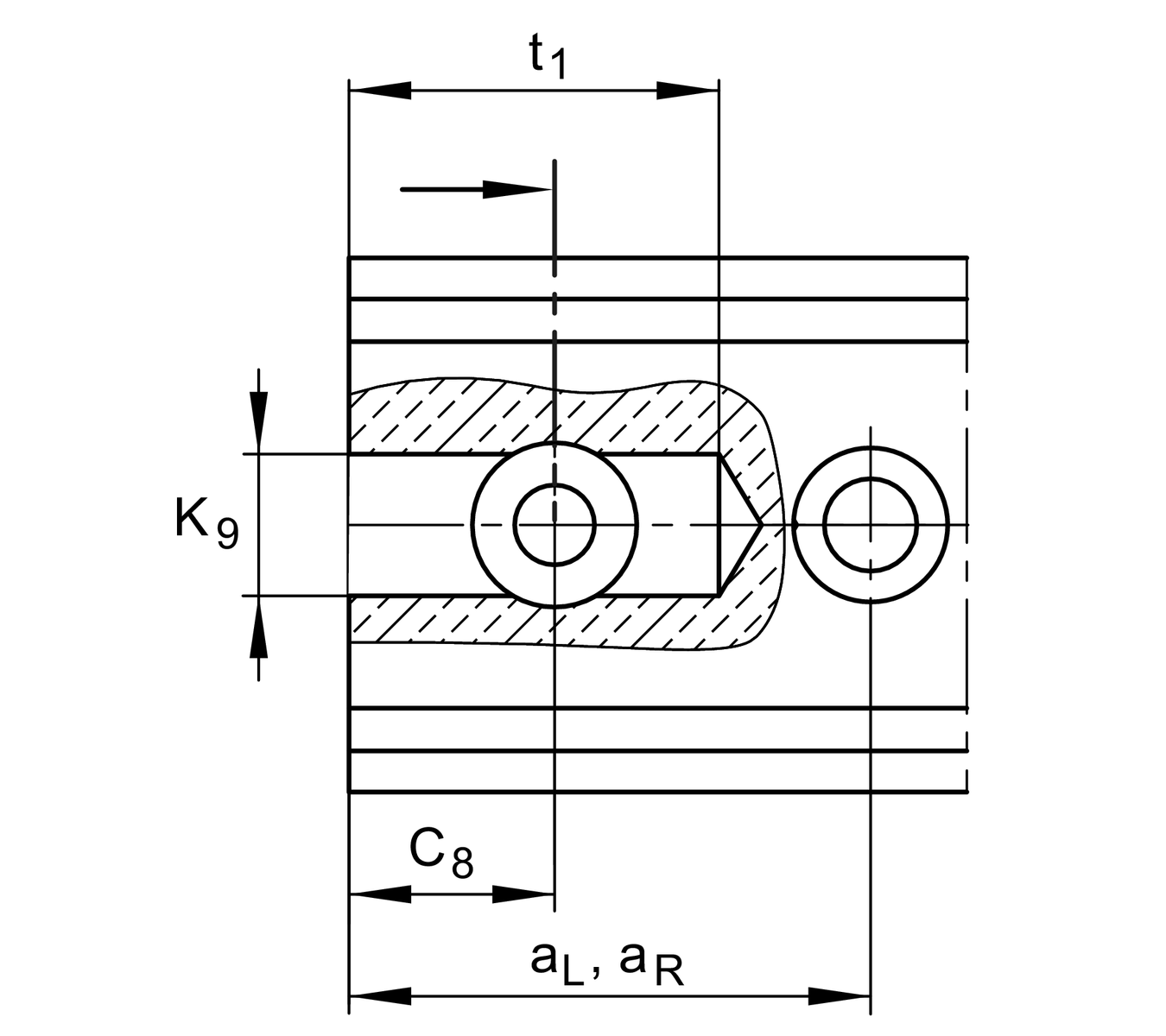

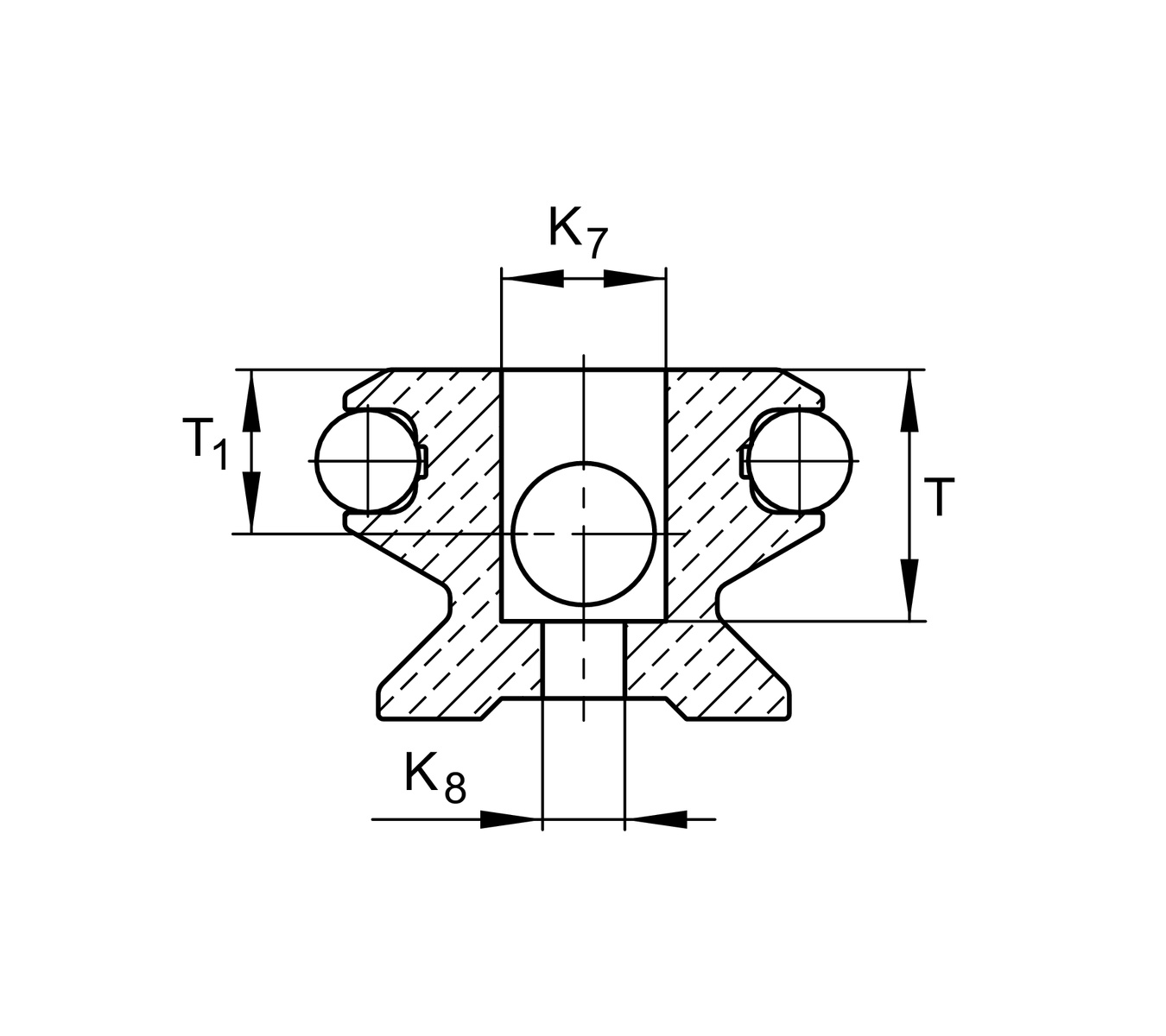

Main Dimensions & Performance Data

a_{L min}	30 mm
a_{R min}	30 mm
C₈	15 mm
C_{8 Tol}	0.1 mm
C_{8 Tol}	-0.1 mm
K₇	12 mm
K_{7 Tol}	0.2 mm
K₈	6.5 mm
K₉	9 mm
K_{9 Tol}	0.5 mm
T	16.5 mm
T₁	10 mm
T_{1 Tol}	0.1 mm
T_{1 Tol}	-0.1 mm
t₁	25 mm
t_{1 Tol}	0.5 mm
≈m	35 g	Weight

Related products

	LFS42-C	Compatible with the following guide rail
	LFS42-CE	Compatible with the following guide rail

Your current product variant

Size code	42
