GRA108-NPP-B-AS2/V
Radial insert ball bearing GRA108-NPP-B-AS2/V
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
38.1 mm
Bore diameter
d
38.1 mm
Bore diameter, inch
DSP
80 mm
Outside diameter
B1
43.8 mm
Locking collar total width
B
30.2 mm
Width
Cur
940 N
Fatigue load limit, radial
Cr
32,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
≈m
0.625 kg
Weight

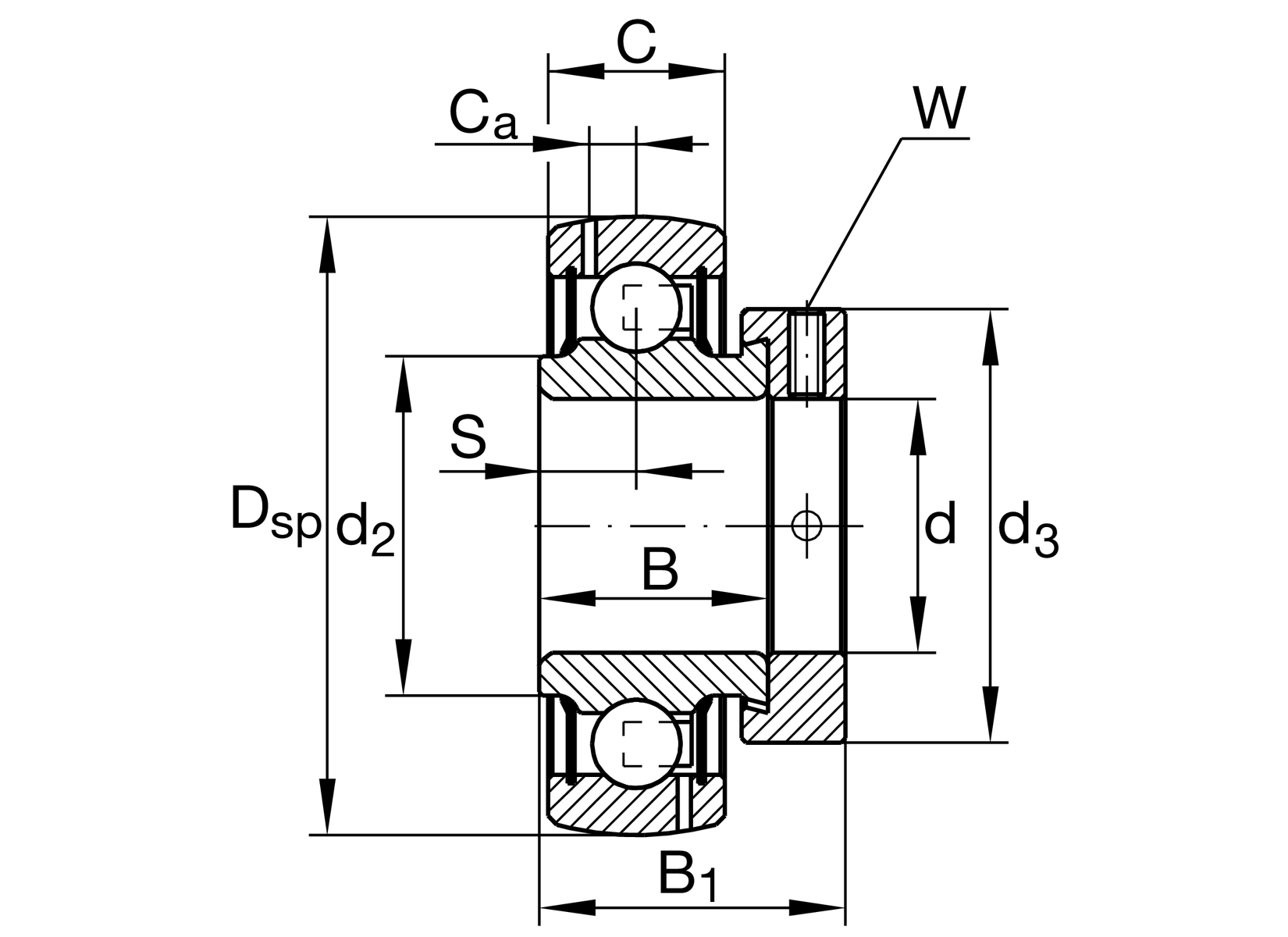

Dimensions
C
21 mm
Width, outer ring
S
11 mm
Distance raceway
d2
49.3 mm
Rib diameter sealing inner ring
Ca
6.5 mm
Distance to lubrication hole
d3
58 mm
Outside diameter locking collar/locknut
W
4.762 mm
Width across flats (Inch)

Calculation factors
f0
13.6
Calculation factor

Your current product variant
SealingNPPLip seal on both sides
Shape of outer surfaceB
Lubrication hole transposedAS2/VAS2/V
