TCJT40-XL-N
Flanged housing unit TCJT40-XL-N
Thêm vào yêu cầu báo giá

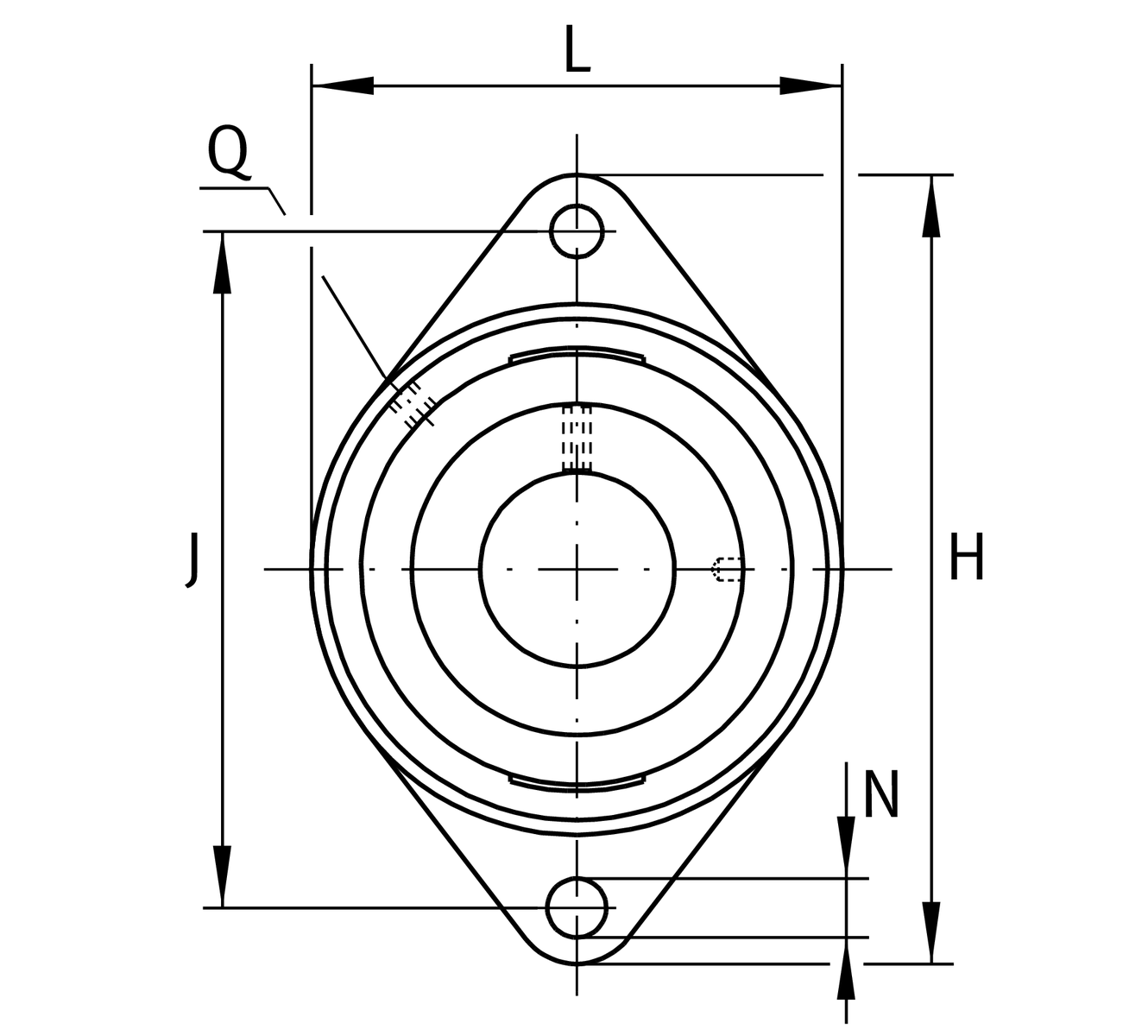

Main Dimensions & Performance Data
d
40 mm
Bore diameter
L
105 mm
Flange width
H
172 mm
Height flange
U
59.1 mm
Total height unit
Cr
34,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
Cur
840 N
Fatigue load limit, radial
≈m
1.7 kg
Weight

Mounting dimensions
J
143.5 mm
Distance fixing bore
N
14 mm
Fixing bore
n
2
Number of screwing holes
W
5 mm
Width of flats

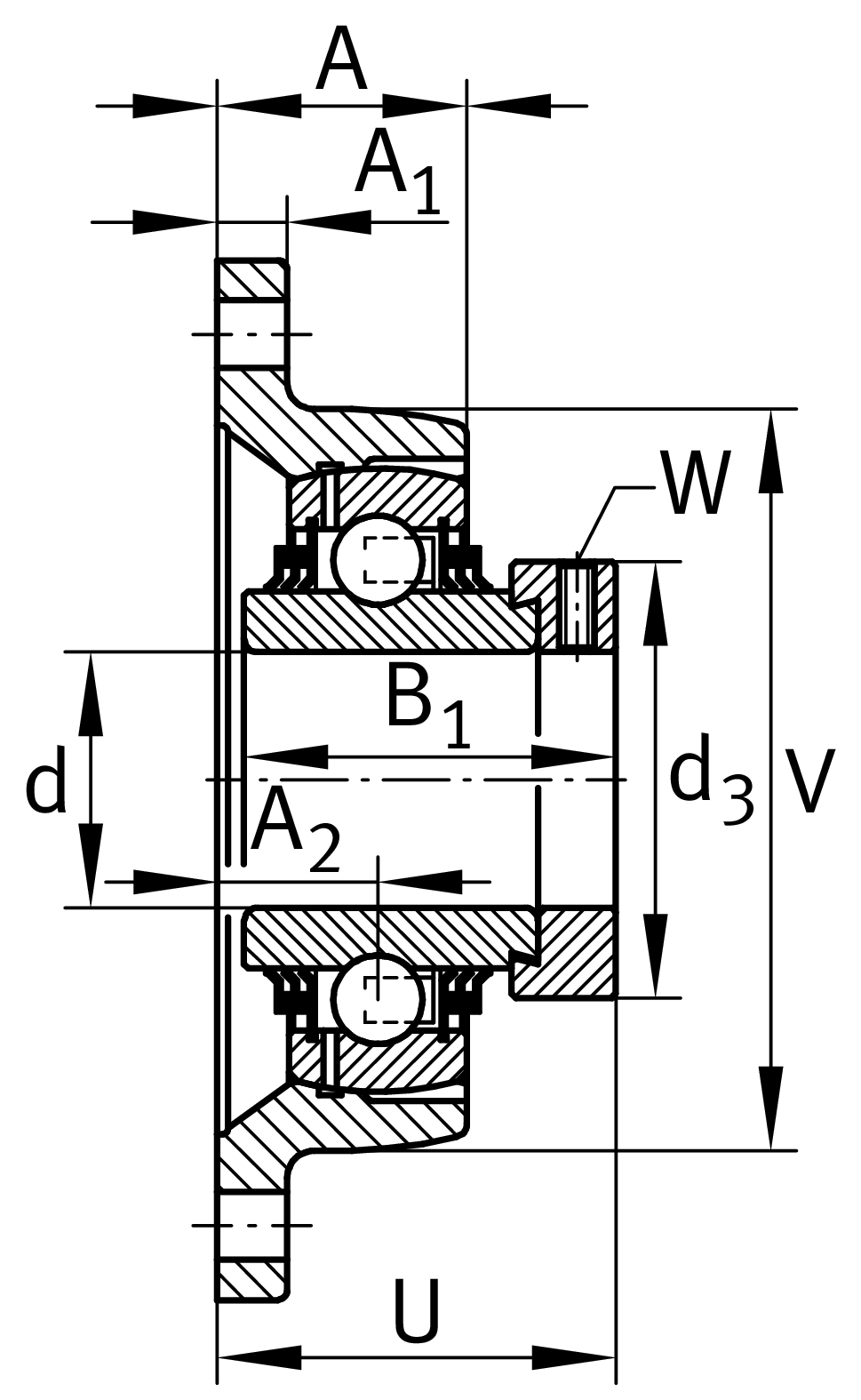

Dimensions
A
36.5 mm
Height housing
A1
13 mm
Thickness of flange
A2
24 mm
Distance raceway
B1
56.5 mm
Locking collar total width
V
105 mm
Shoulder diameter housing
Q
M6
Connection thread for lubrication
d3
58 mm
Outside diameter locking collar

Additional information
CJT08-N
Housing
GE40-XL-KTT-B
Bearing designation
KASK08
Protecting cap

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
