RAE40-XL-NPP-FA106
Radial insert ball bearing RAE40-XL-NPP-FA106
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
40 mm
Bore diameter
D
80 mm
Outside diameter
B
30.2 mm
Width
B1
43.8 mm
Locking collar total width
Cr
32,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
Cur
1,030 N
Fatigue load limit, radial
≈m
0.606 kg
Weight

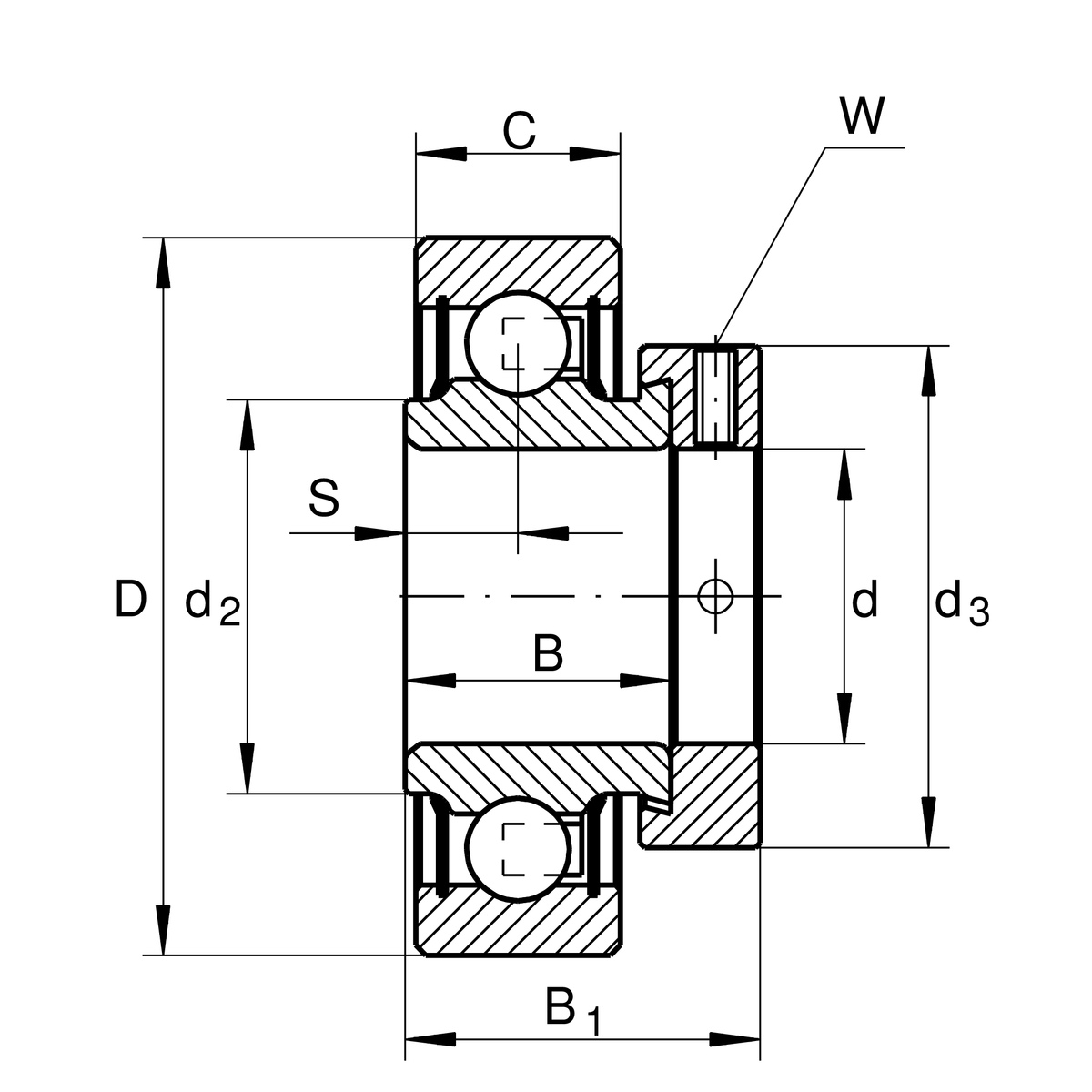

Dimensions
C
21 mm
Width, outer ring
S
11 mm
Distance raceway
d2
49.4 mm
Rib diameter sealing inner ring
d3
58 mm
Outside diameter locking collar/locknut
W
5 mm
Width of flats

Calculation factors
f0
13.6
Calculation factor

Your current product variant
SealingNPPLip seal on both sides
Manufacturing instructionFA106Bearing subjected to special noise testing
