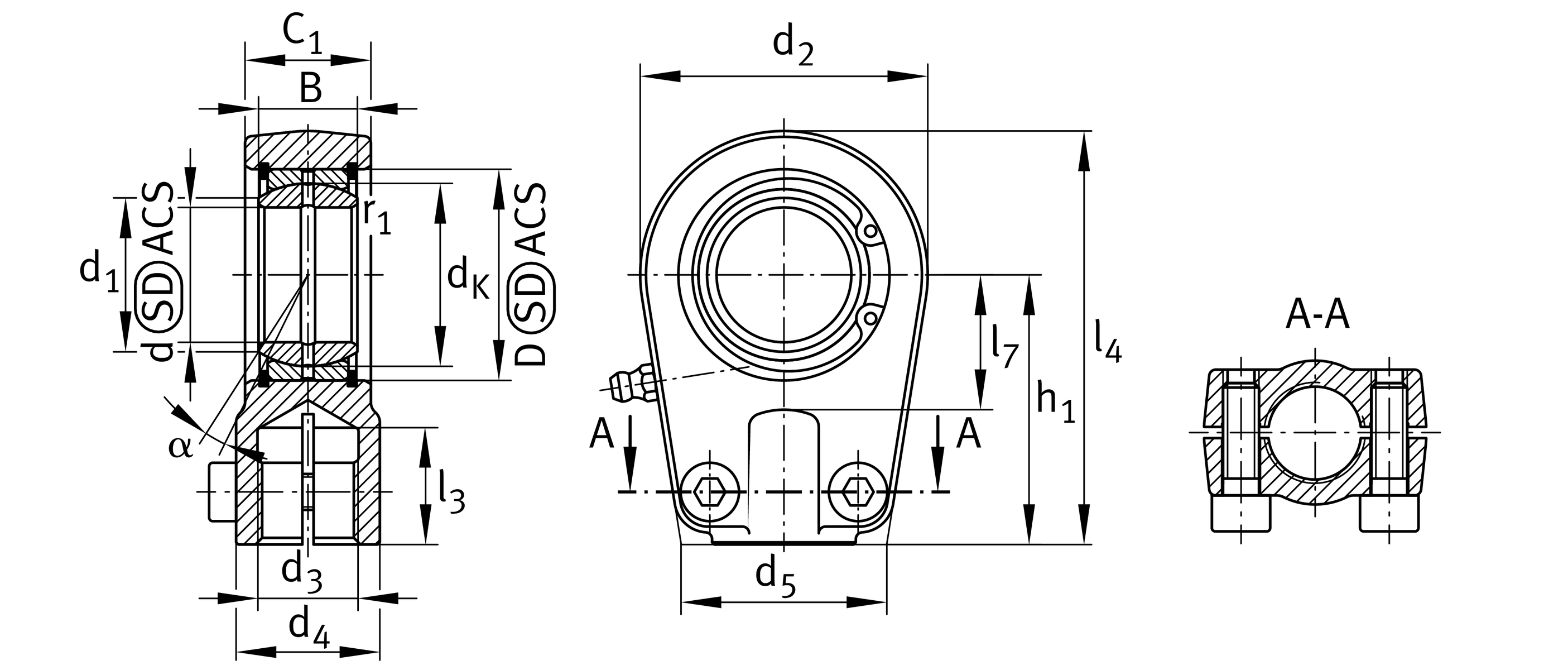

Main Dimensions & Performance Data
| Cr | 212,000 N | Basic dynamic load rating, radial |
| C0r | 140,000 N | Basic static load rating, radial |
| d | 35 mm | Bore diameter bearing |
| D | 55 mm | Outside diameter bearing |
| l4 | 109 mm | Total length internal thread head |
| B | 25 mm | Width inner ring, |
| d2 | 78 mm | Outer eye diameter |
| ≈m | 1.2 kg | Weight |

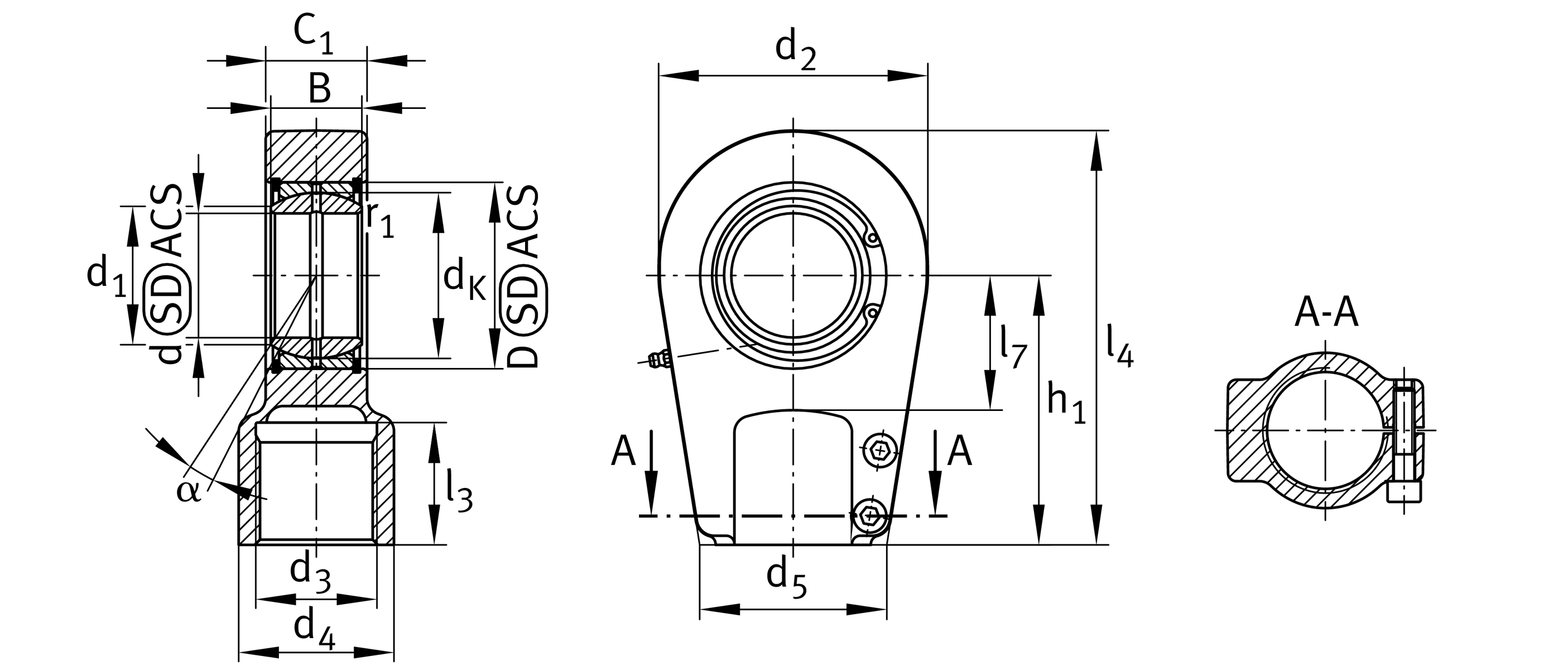

Dimensions
| dK | 47 mm | Ball diameter |
| d3 | M28x1,5 | Thread size |
| d4 | 40 mm | Shank diameter |
| h1 | 70 mm | Shank Length Internal thread head |
| C1 | 30 mm | Width of the rod end |
| α | 6 ° | Tilt angle |
| l3 | 29 mm | Thread length Internal thread |
| l7 | 38 mm | Distance drilling with/shaft start |
| d 7 | M10x30 | Diameter |
| d5 | 58 mm | Shank diameter, large |
| Gr | 0 - 0,05 | Radial Clearance |
| MA | 64 Nm | Tightening torque |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| dUT | -0.012 mm | Bore diameter bearing, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| BUT | -0.12 mm | Width inner ring, lower tolerance |
| Grmax | 0.05 mm | Radial clearance, maximum |
| Grmin | 0 mm | Radial clearance, minimum |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 130 °C | Operating temperature max. |
Mounting dimensions
| d1 | 39.8 mm | Outer flange diameter inner ring |
| r1smin | 0.6 mm | Edge Spacing |
Your current product variant
| Sealing | 2RS | Lip seals on both sides |
