E35-XL-KTT-B-2C-OSE
Radial insert ball bearing E35-XL-KTT-B-2C-OSE
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
35 mm
Bore diameter
DSP
72 mm
Outside diameter
B
37.7 mm
Width
Cr
27,500 N
Basic dynamic load rating, radial
C0r
15,300 N
Basic static load rating, radial
≈m
0.454 kg
Weight

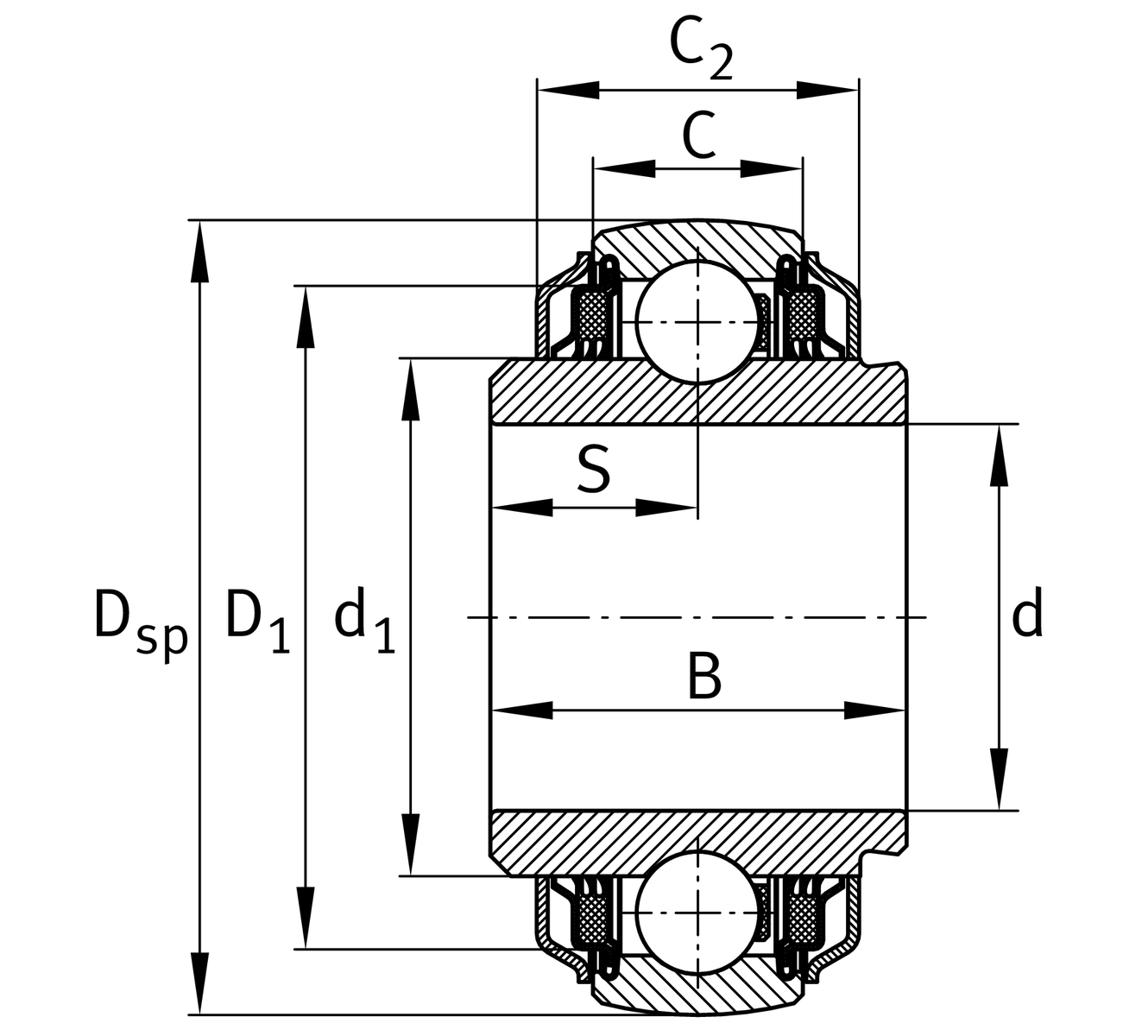

Dimensions
C
19 mm
Width, outer ring
C2
29.2 mm
Sealing total width
S
18.8 mm
Distance raceway
d1
46.8 mm
Rib diameter inner ring

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
10 °C
Operating temperature max.

Your current product variant
SealingKTTTriple lip seals on both sides
Shape of outer surfaceB
Without locking deviceOSEBearing without locking element
