Main Dimensions & Performance Data
| d | 15 in | Shaft diameter |
| H | 36.5 in | Housing height |
| B | 43 in | Length base |
| ≈m | 1,852.996 lbs | Weight |

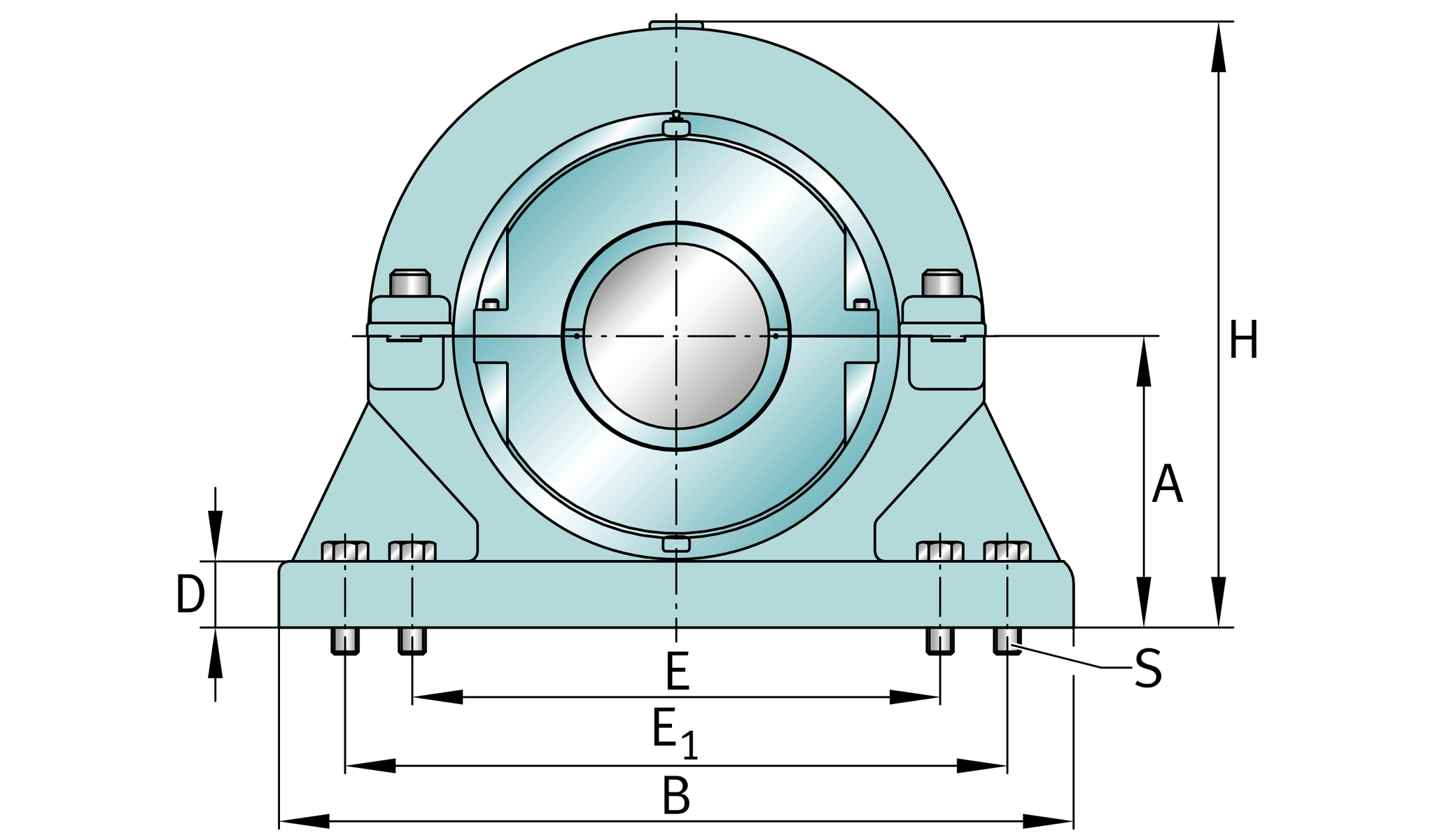

Dimensions
S2BCH-1500-FL | Complete unit float | |
S2BCH-1500-HD | Complete unit held | |
PH-31 | Housing designation | |
| A | 18.25 in | Center height |
| C | 14.5 in | Base width |
| D | 2.625 in | Base height |
| Emin | 26.0625 in | Base hole distance 1 min |
| Emin | 27.625 in | Base hole distance 1 max |
| E1, min | 34.0625 in | Base hole distance 3 min |
| E1, max | 35.625 in | Base hole distance 3 max |
| F | 11 in | Base hole distance 2 |
| s | 8 | # of mounting bolts |
| s | 1.25 in | Mounting bolt diameter |
S2BC-1500-FL | Cartridge float bearing | |
S2BC-1500-HD | Cartridge held bearing | |
S2C-1500 | Cartridge | |
| G | 13.5 in | Length through bore |
| L | 25.5 in | Outside diameter cartridge |
17 lbs | Grease capacity | |
881.8 lbs | Cartridge weight | |
S2B-1500-FL | Bearing float | |
S2B-1500-HD | Bearing held | |
409.9 lbs | Bearing weight | |
1500 Grp | Bearing group | |
| Cr | 385,957 lbf | Basic dynamic load rating, radial |
| C0r | 761,112 lbf | Basic static load rating, radial |
| Ca | 16,923 lbf | Basic dynamic load rating, axial |
703 1/min | Limiting speed | |
| D0 | 23 in | Outside diameter bearing |
| C0 | 7.874 in | Width inner ring |
| B0 | 4.374 in | Width outer ring |
