Main Dimensions & Performance Data
| d | 14 in | Shaft diameter |
| H | 35.5 in | Housing height |
| B | 43 in | Length base |
| ≈m | 1,741.996 lbs | Weight |

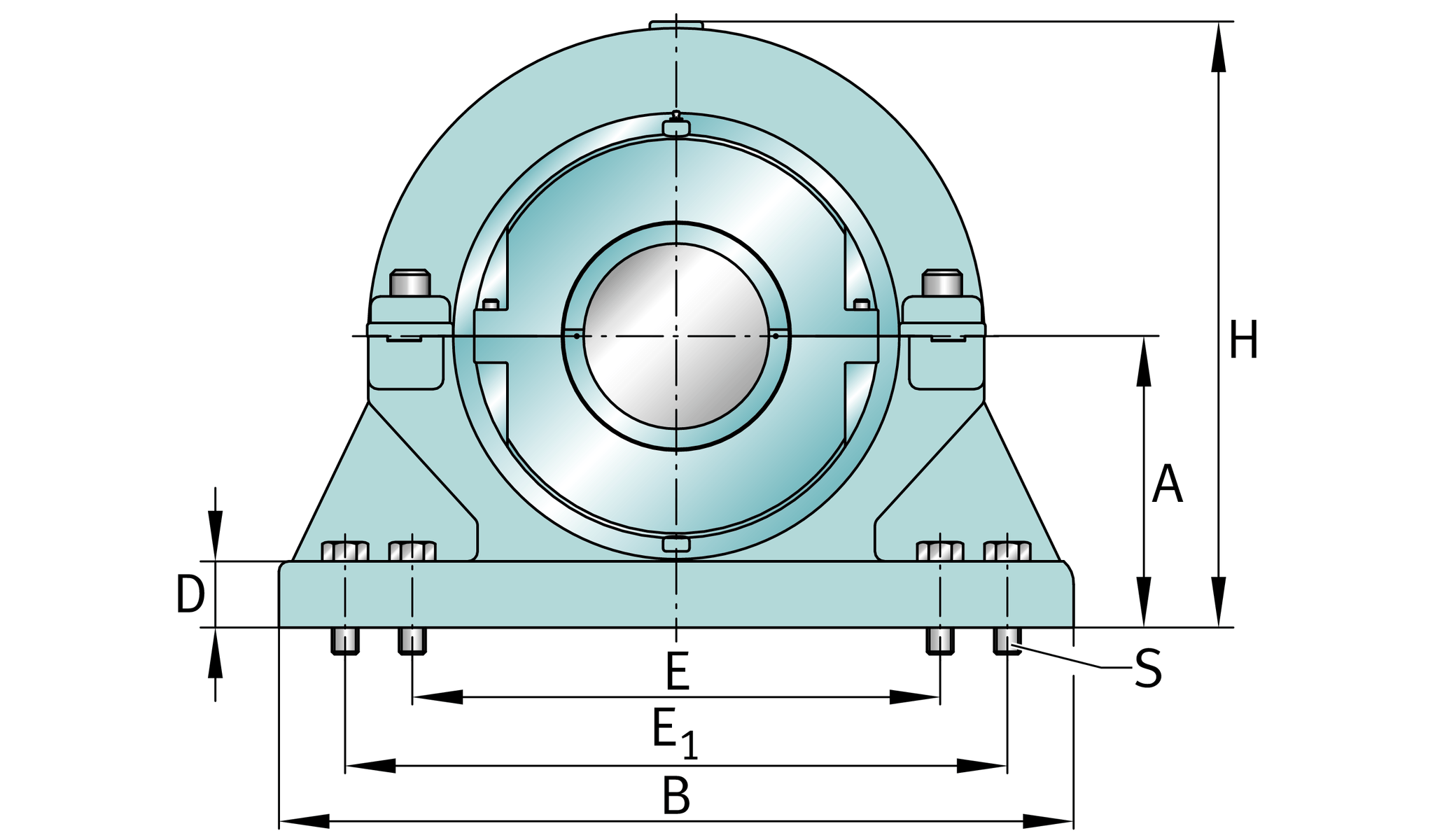

Dimensions
S2BCH-1400-FL | Complete unit float | |
S2BCH-1400-HD | Complete unit held | |
PH-30 | Housing designation | |
| A | 17.75 in | Center height |
| C | 14.5 in | Base width |
| D | 2.5 in | Base height |
| Emin | 25.1875 in | Base hole distance 1 min |
| Emin | 26.75 in | Base hole distance 1 max |
| E1, min | 33.1875 in | Base hole distance 3 min |
| E1, max | 34.75 in | Base hole distance 3 max |
| F | 11 in | Base hole distance 2 |
| s | 8 | # of mounting bolts |
| s | 1.25 in | Mounting bolt diameter |
S2BC-1400-FL | Cartridge float bearing | |
S2BC-1400-HD | Cartridge held bearing | |
S2C-1400 | Cartridge | |
| G | 13.5 in | Length through bore |
| L | 24.75 in | Outside diameter cartridge |
15.9 lbs | Grease capacity | |
799.8 lbs | Cartridge weight | |
S2B-1400-FL | Bearing float | |
S2B-1400-HD | Bearing held | |
404.9 lbs | Bearing weight | |
1400 Grp | Bearing group | |
| Cr | 359,847 lbf | Basic dynamic load rating, radial |
| C0r | 683,122 lbf | Basic static load rating, radial |
| Ca | 16,057 lbf | Basic dynamic load rating, axial |
737 1/min | Limiting speed | |
| D0 | 22.25 in | Outside diameter bearing |
| C0 | 7.784 in | Width inner ring |
| B0 | 4.563 in | Width outer ring |
