GE160-AW
Spherical plain bearing GE160-AW
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
160 mm
Bore diameter bearing
D
290 mm
Outside diameter bearing
T
77 mm
Height
B
65 mm
Width Inner ring
Ca
5,680,000 N
Basic dynamic load rating, axial
C0a
9,460,000 N
Basic static load rating, axial
≈m
23.64 kg
Weight

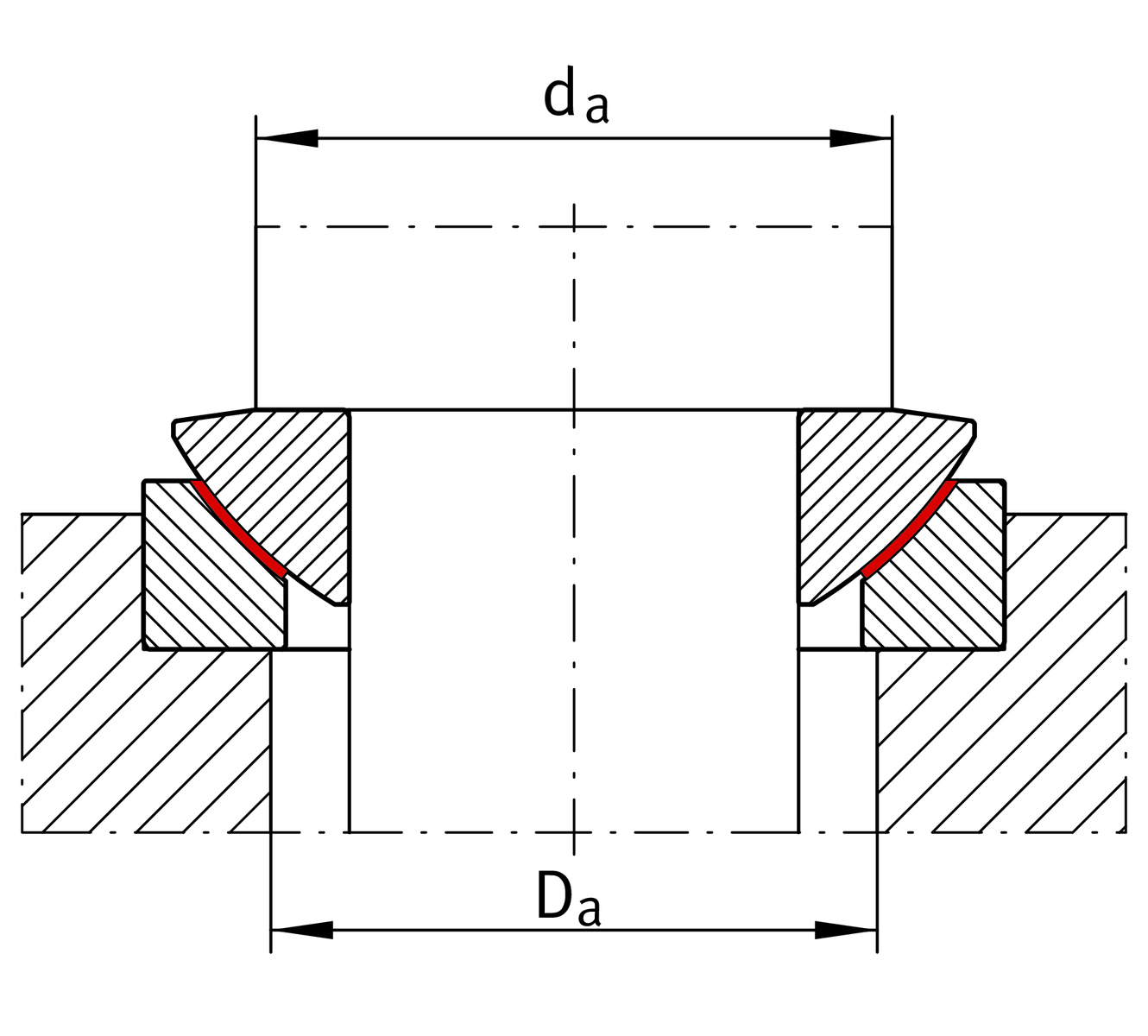

Mounting dimensions
r1smin
1.5 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
213 mm
Connection measure Inner ring
Da min
211 mm
Housing Connection Diameter

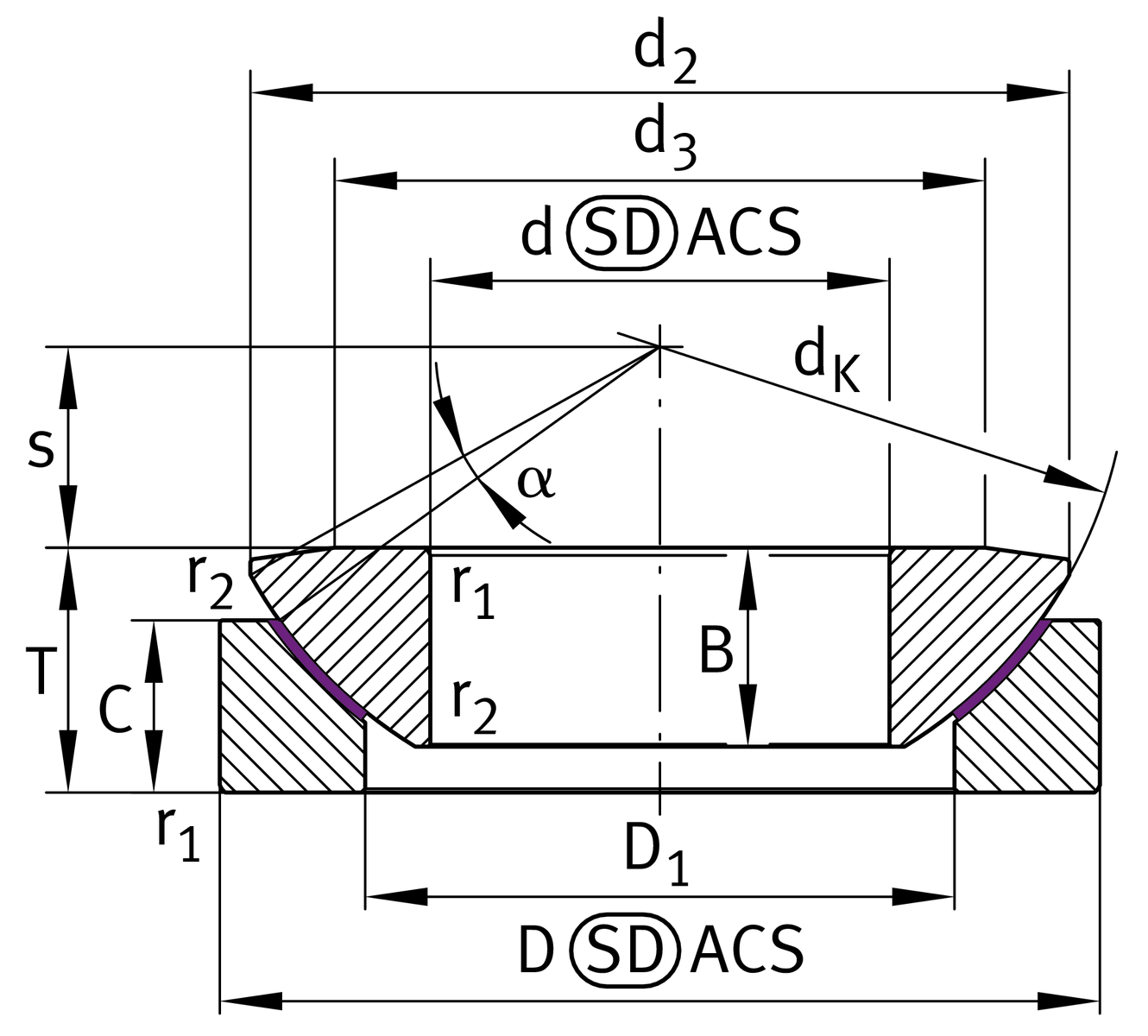

Dimensions
dK
310 mm
Ball diameter
d2
272 mm
Outer eye diameter
d3
213 mm
Front surface diameter of shaft washer
D1
199 mm
Bore diameter of housing washer
C
52 mm
Width Outer ring
s
65 mm
Plane Surface Spacing
α
7 °
Tilt angle
dOT
0 mm
Bore diameter bearing, upper tolerance
dUT
-0.025 mm
Bore diameter bearing, lower tolerance
DOT
0 mm
Outside diameter, upper tolerance
DUT
-0.035 mm
Outside diameter, lower tolerance
TOT
0 mm
Height, upper tolerance
BOT
0 mm
Width inner ring, upper tolerance
TUT
-0.5 mm
Height, lower tolerance
BUT
-0.5 mm
Width inner ring, lower tolerance
COT
0 mm
Width outer ring, upper tolerance
CUT
-0.5 mm
Width outer ring, lower tolerance

Temperature range
Tmin
-50 °C
Operating temperature min.
Tmax
150 °C
Operating temperature max.

Your current product variant
FabricELGOGLIDEELGOGLIDE
