Main Dimensions & Performance Data
| d | 12.5 in | Shaft diameter |
| H | 33 in | Housing height |
| B | 40 in | Length base |
| ≈m | 1,559.998 lbs | Weight |

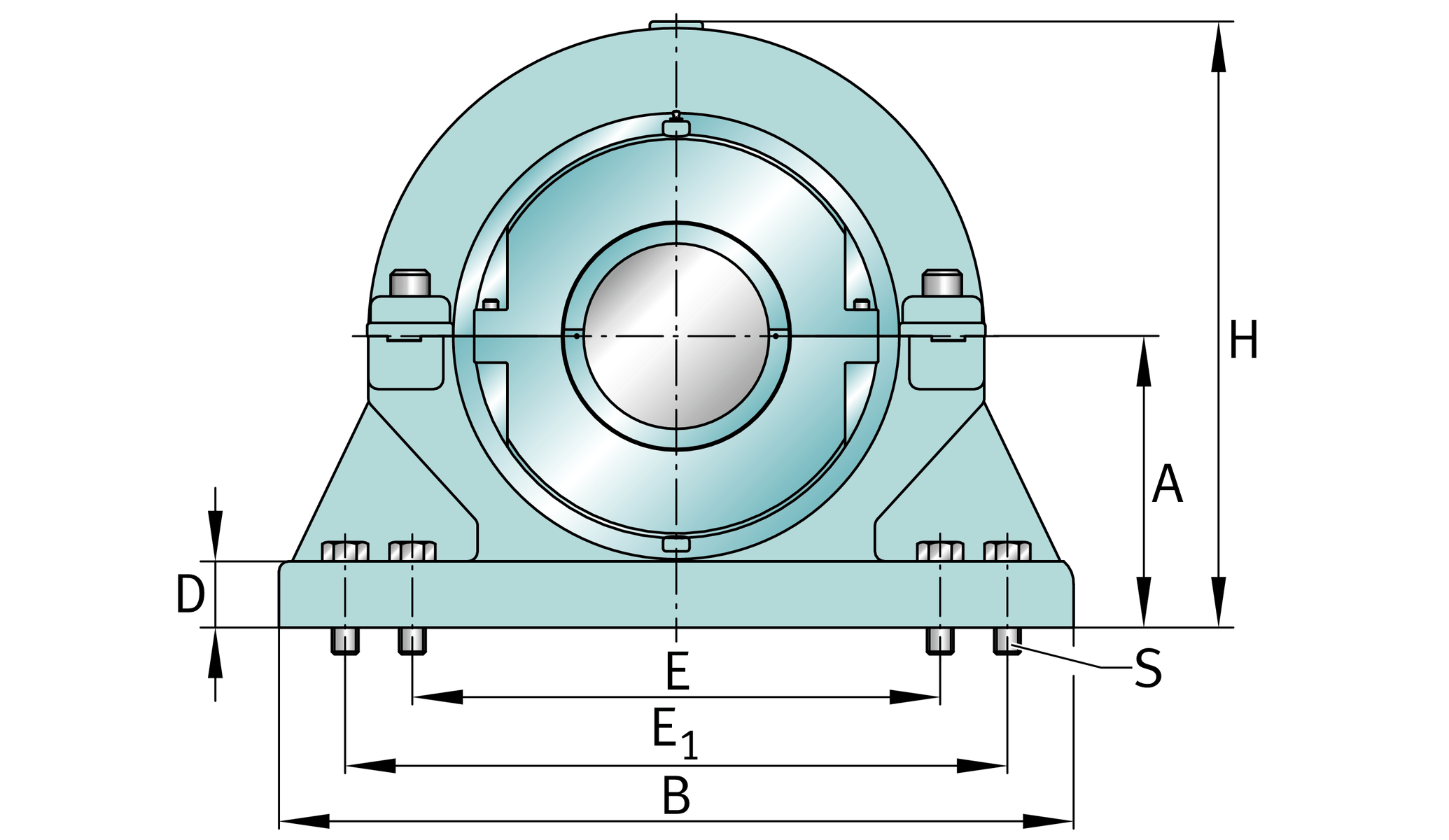

Dimensions
S2BCH-1208-FL | Complete unit float | |
S2BCH-1208-HD | Complete unit held | |
PH-29 | Housing designation | |
| A | 16.5 in | Center height |
| C | 11.5 in | Base width |
| D | 2.5 in | Base height |
| Emin | 23.25 in | Base hole distance 1 min |
| Emin | 24.8125 in | Base hole distance 1 max |
| E1, min | 31.25 in | Base hole distance 3 min |
| E1, max | 32.8125 in | Base hole distance 3 max |
| F | 8.25 in | Base hole distance 2 |
| s | 8 | # of mounting bolts |
| s | 1.25 in | Mounting bolt diameter |
S2BC-1208-FL | Cartridge float bearing | |
S2BC-1208-HD | Cartridge held bearing | |
S2C-1300 | Cartridge | |
| G | 13 in | Length through bore |
| L | 23.125 in | Outside diameter cartridge |
16 lbs | Grease capacity | |
689.8 lbs | Cartridge weight | |
S2B-1208-FL | Bearing float | |
S2B-1208-HD | Bearing held | |
324.9 lbs | Bearing weight | |
1300 Grp | Bearing group | |
| Cr | 309,649 lbf | Basic dynamic load rating, radial |
| C0r | 589,875 lbf | Basic static load rating, radial |
| Ca | 14,176 lbf | Basic dynamic load rating, axial |
785 1/min | Limiting speed | |
| D0 | 20.75 in | Outside diameter bearing |
| C0 | 7.559 in | Width inner ring |
| B0 | 4.189 in | Width outer ring |
