Main Dimensions & Performance Data
| d | 12 in | Shaft diameter |
| H | 31 in | Housing height |
| B | 37.75 in | Length base |
| ≈m | 1,294.998 lbs | Weight |

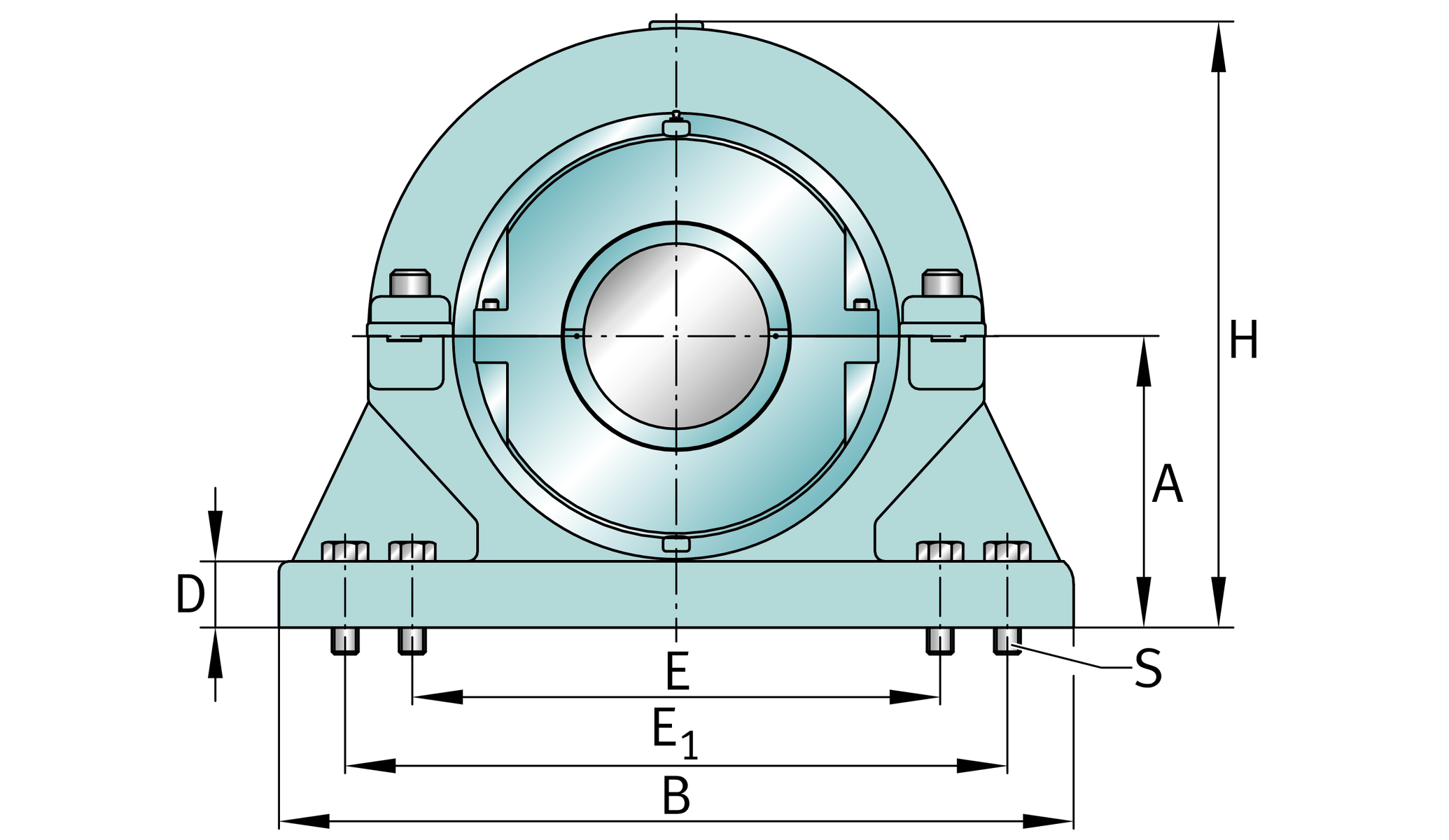

Dimensions
S2BCH-1200-FL | Complete unit float | |
S2BCH-1200-HD | Complete unit held | |
PH-28 | Housing designation | |
| A | 15.5 in | Center height |
| C | 13 in | Base width |
| D | 2.375 in | Base height |
| Emin | 21.5 in | Base hole distance 1 min |
| Emin | 23 in | Base hole distance 1 max |
| E1, min | 29.5 in | Base hole distance 3 min |
| E1, max | 31 in | Base hole distance 3 max |
| F | 10 in | Base hole distance 2 |
| s | 8 | # of mounting bolts |
| s | 1.25 in | Mounting bolt diameter |
S2BC-1200-FL | Cartridge float bearing | |
S2BC-1200-HD | Cartridge held bearing | |
S2C-1200 | Cartridge | |
| G | 12.0625 in | Length through bore |
| L | 21.75 in | Outside diameter cartridge |
11.8 lbs | Grease capacity | |
599.8 lbs | Cartridge weight | |
S2B-1200-FL | Bearing float | |
S2B-1200-HD | Bearing held | |
296.9 lbs | Bearing weight | |
1200 Grp | Bearing group | |
| Cr | 301,125 lbf | Basic dynamic load rating, radial |
| C0r | 555,316 lbf | Basic static load rating, radial |
| Ca | 15,192 lbf | Basic dynamic load rating, axial |
850 1/min | Limiting speed | |
| D0 | 19.5 in | Outside diameter bearing |
| C0 | 7.594 in | Width inner ring |
| B0 | 4.063 in | Width outer ring |
