Main Dimensions & Performance Data
| d | 10.5 in | Shaft diameter |
| H | 30 in | Housing height |
| B | 36 in | Length base |
| ≈m | 1,125.999 lbs | Weight |

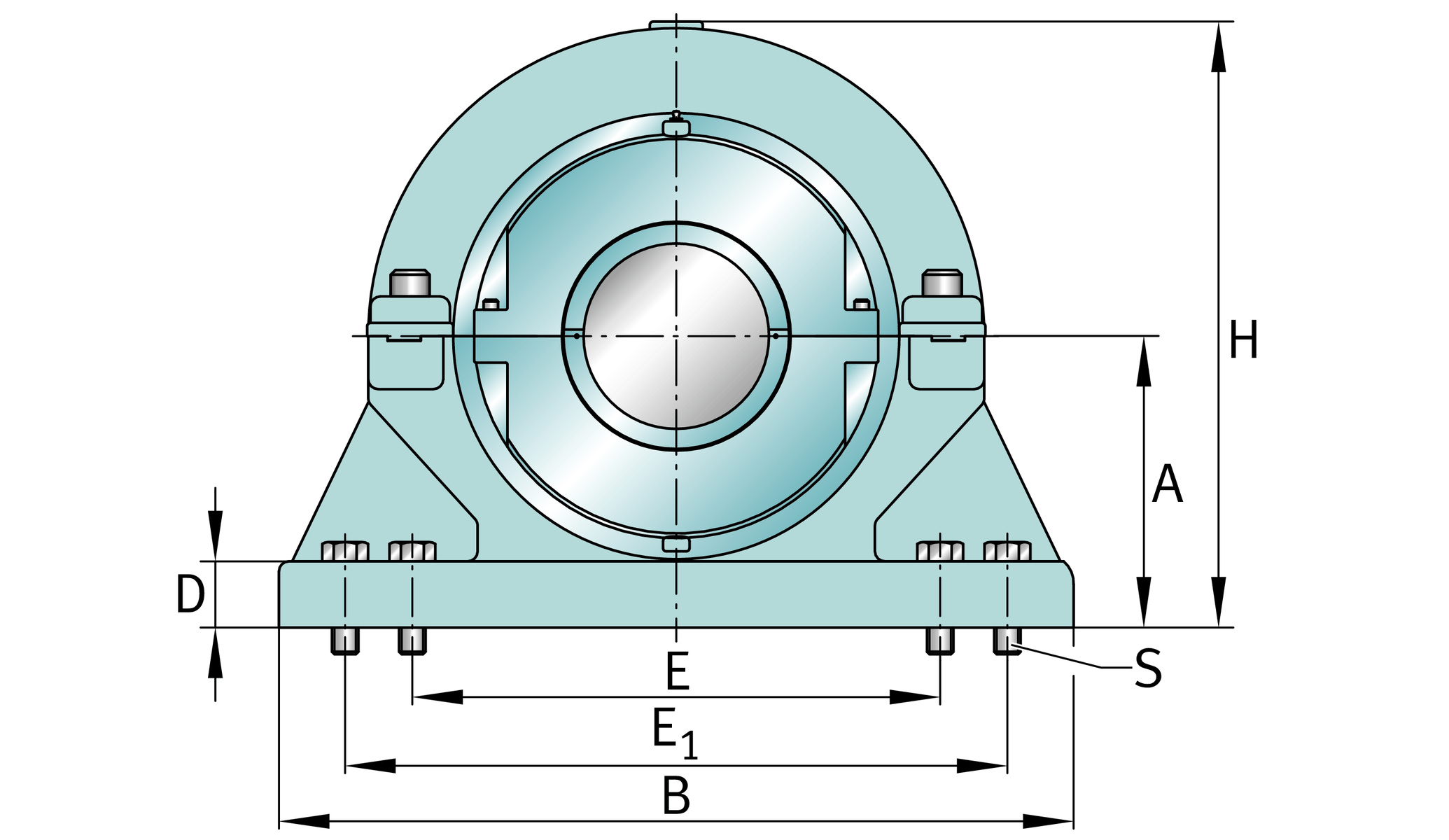

Dimensions
S2BCH-1008-FL | Complete unit float | |
S2BCH-1008-HD | Complete unit held | |
PH-27 | Housing designation | |
| A | 14.875 in | Center height |
| C | 13 in | Base width |
| D | 2.375 in | Base height |
| Emin | 20.25 in | Base hole distance 1 min |
| Emin | 21.75 in | Base hole distance 1 max |
| E1, min | 28.25 in | Base hole distance 3 min |
| E1, max | 29.75 in | Base hole distance 3 max |
| F | 10 in | Base hole distance 2 |
| s | 8 | # of mounting bolts |
| s | 1.25 in | Mounting bolt diameter |
S2BC-1008-FL | Cartridge float bearing | |
S2BC-1008-HD | Cartridge held bearing | |
S2C-1100 | Cartridge | |
| G | 11.8125 in | Length through bore |
| L | 20.75 in | Outside diameter cartridge |
10.4 lbs | Grease capacity | |
524.9 lbs | Cartridge weight | |
S2B-1008-FL | Bearing float | |
S2B-1008-HD | Bearing held | |
208.9 lbs | Bearing weight | |
1100 Grp | Bearing group | |
| Cr | 279,628 lbf | Basic dynamic load rating, radial |
| C0r | 492,681 lbf | Basic static load rating, radial |
| Ca | 14,607 lbf | Basic dynamic load rating, axial |
914 1/min | Limiting speed | |
| D0 | 18.25 in | Outside diameter bearing |
| C0 | 7.323 in | Width inner ring |
| B0 | 4 in | Width outer ring |
