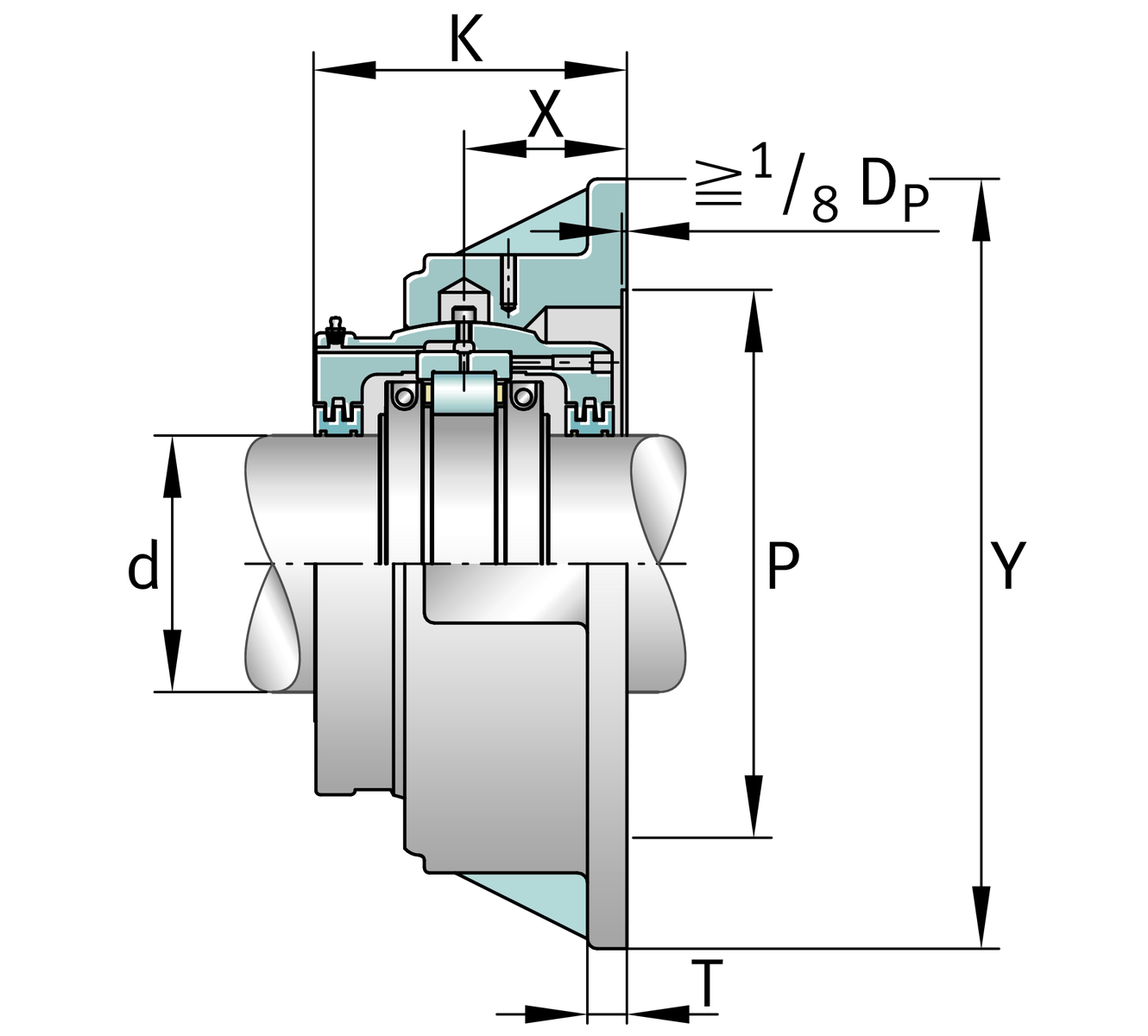

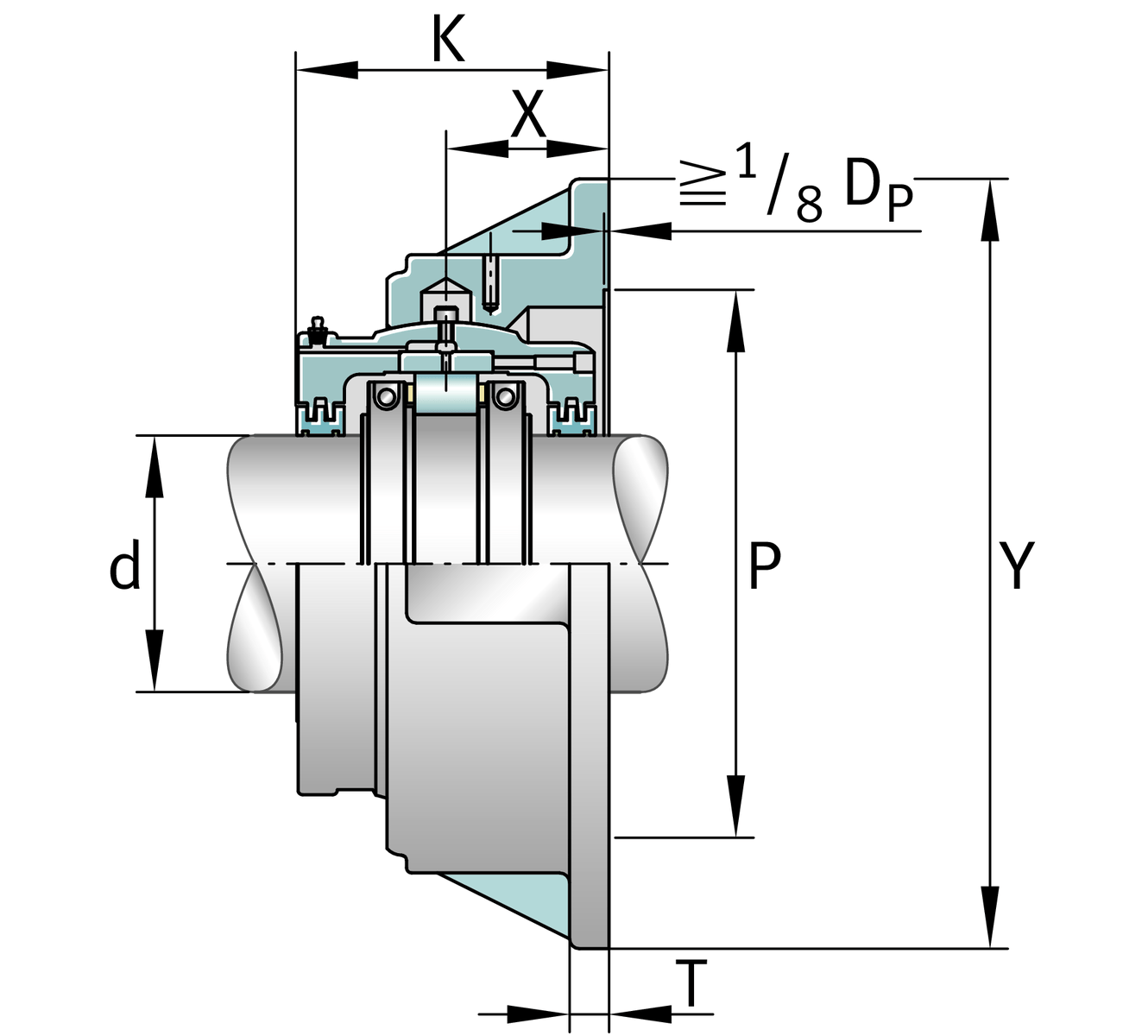

Main Dimensions & Performance Data
| d | 228.6 mm | Shaft diameter |
| Y | 711.2 mm | Flange outside diameter |
| K | 282.575 mm | Width |
| ≈m | 349.719 kg | Weight |
Dimensions
S2BCF-900-FL | Complete unit float | |
S2BCF-900-HD | Complete unit held | |
FH-25 | Housing deignation | |

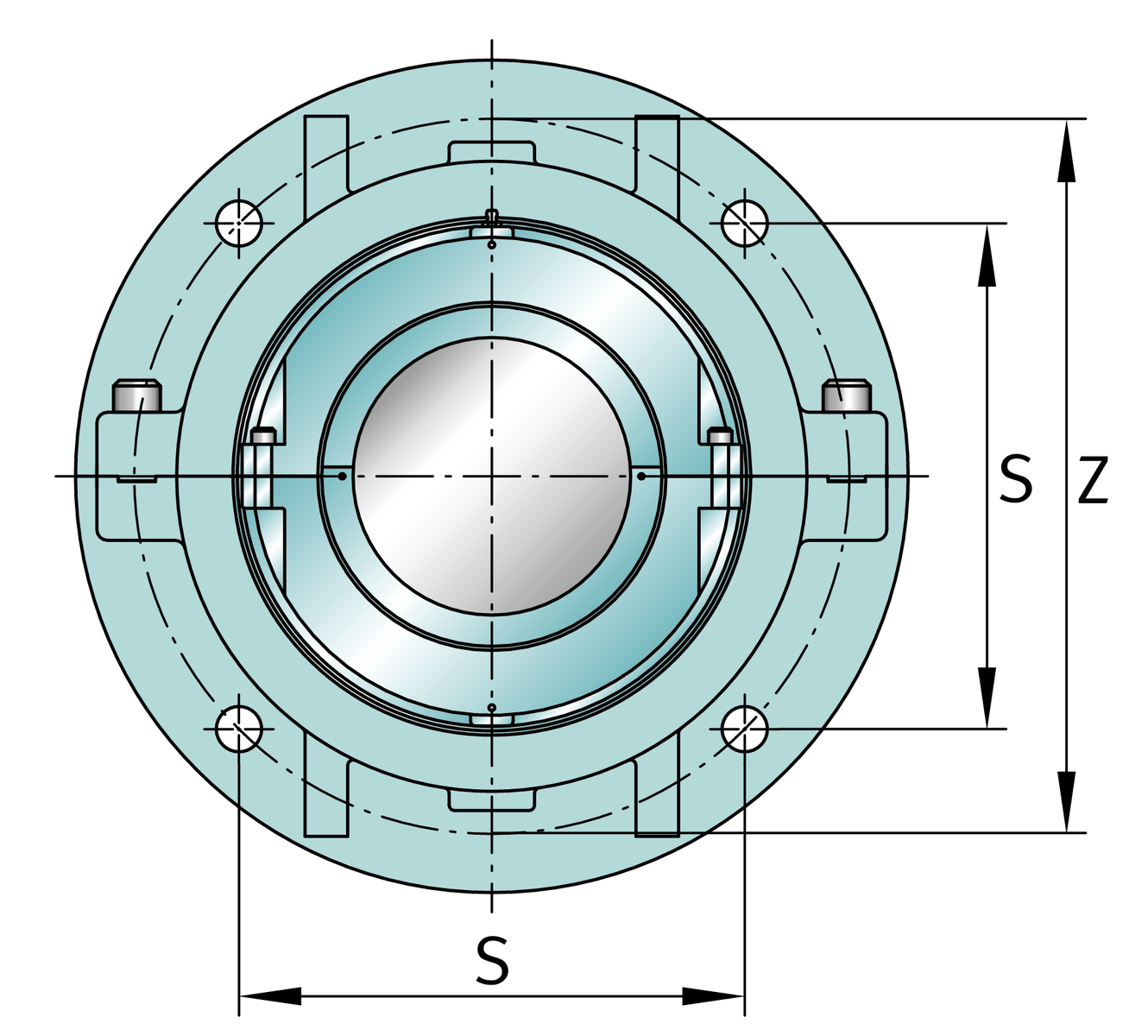

| X | 146.05 mm | Bearing centerline location |
| Z | 619.125 mm | Bolt circle diameter |
| S | 438.15 mm | Bolt hole distance |
| T | 34.925 mm | Thickness of flange |
| P | 527.05 mm | Pilot counterbore diameter |
| S | 4 | # of Mounting Bolts |
| S | 38.1 mm | Mounting bolt diameter |
