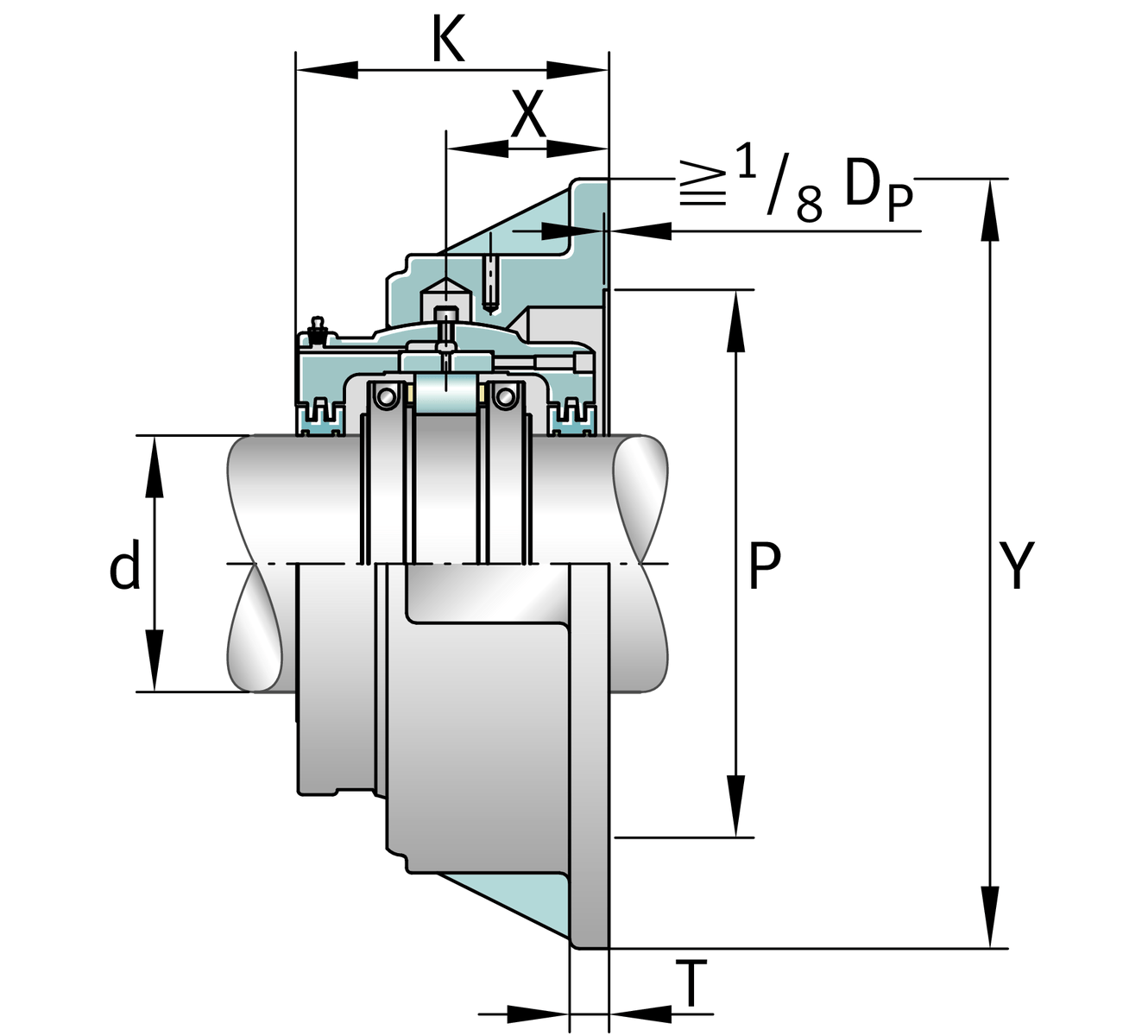

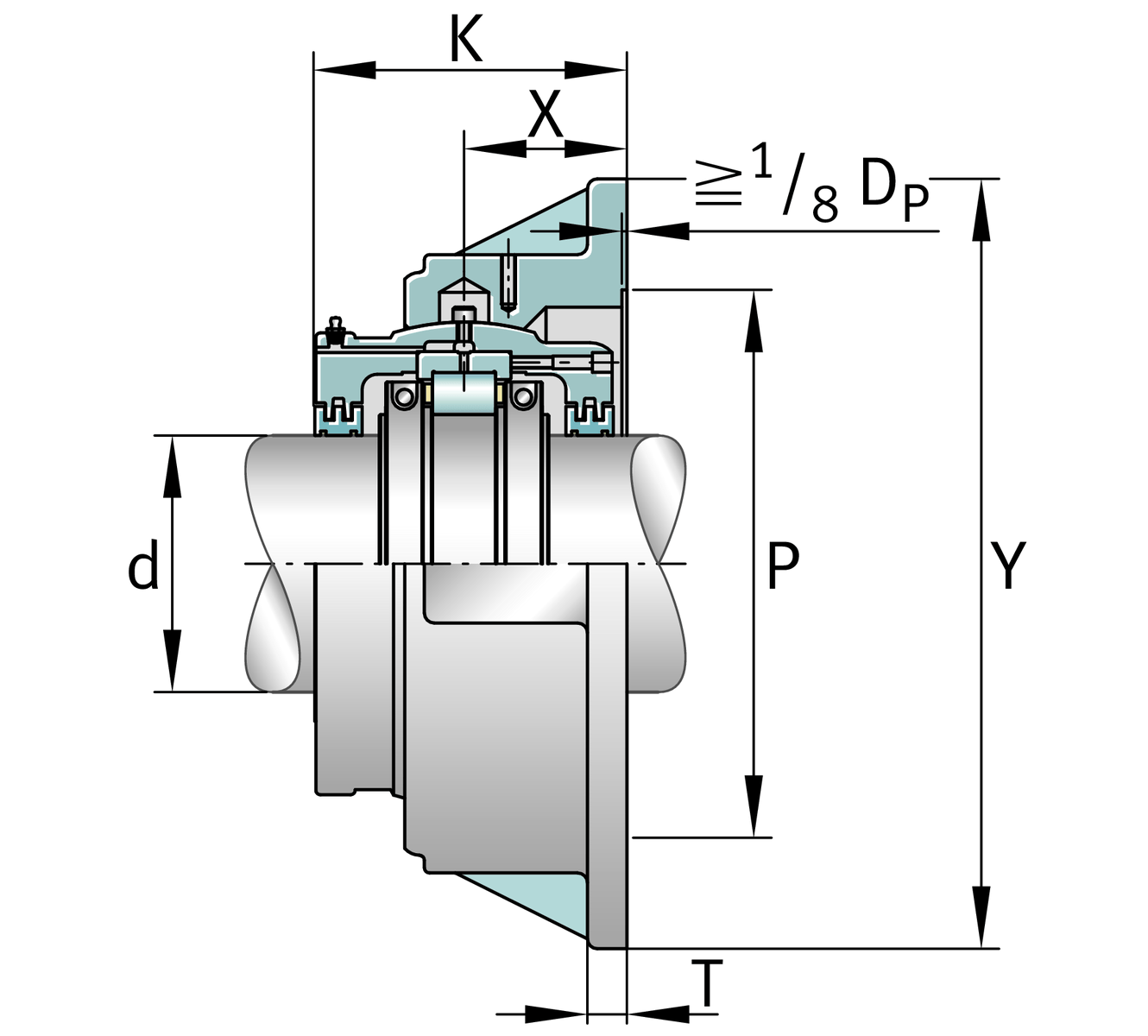

Main Dimensions & Performance Data
| d | 163.512 mm | Shaft diameter |
| Y | 584.2 mm | Flange outside diameter |
| K | 239.712 mm | Width |
| ≈m | 186.88 kg | Weight |
Dimensions
S2BCF-607-FL | Complete unit float | |
S2BCF-607-HD | Complete unit held | |
FH-22 | Housing deignation | |

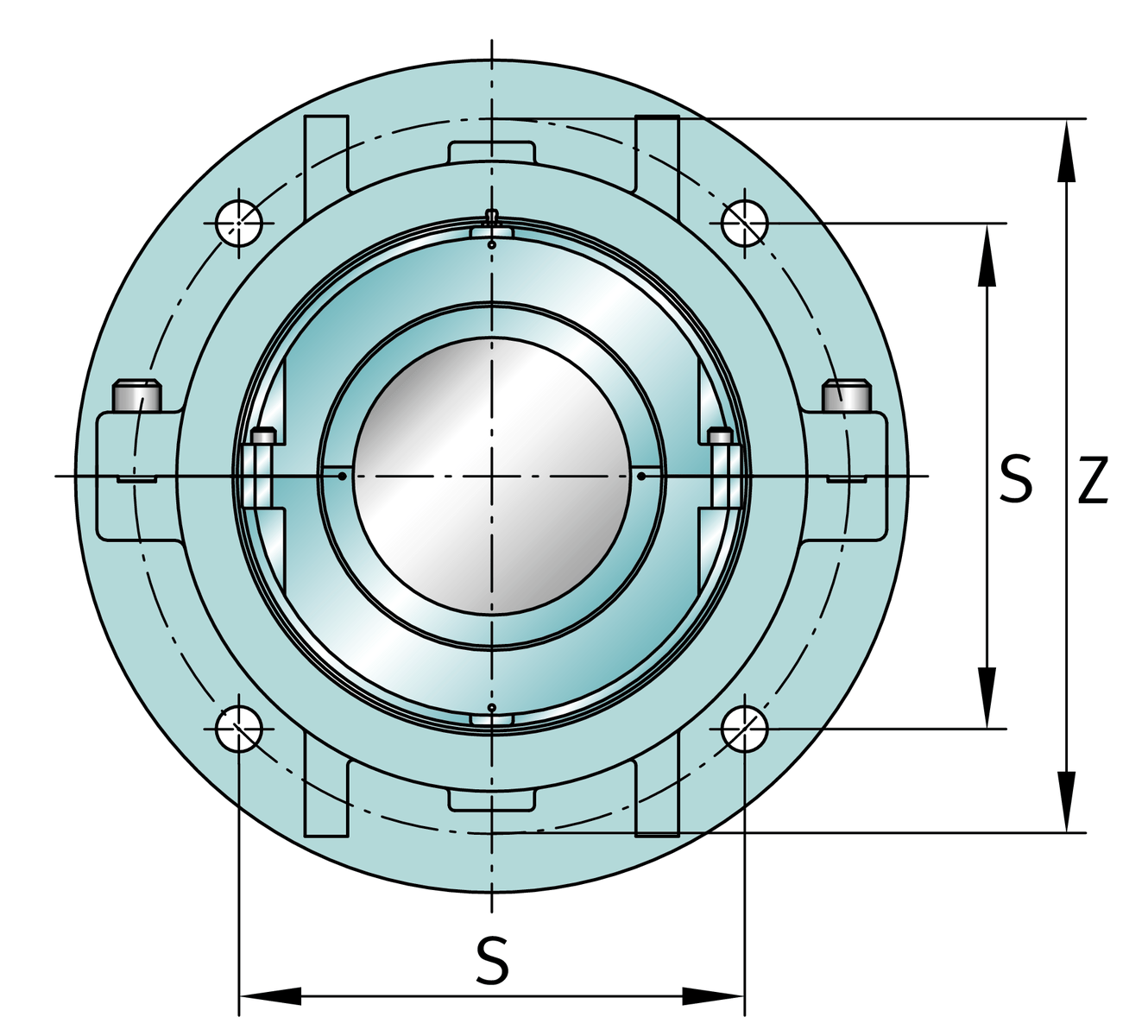

| X | 123.825 mm | Bearing centerline location |
| Z | 508 mm | Bolt circle diameter |
| S | 358.775 mm | Bolt hole distance |
| T | 28.575 mm | Thickness of flange |
| P | 428.625 mm | Pilot counterbore diameter |
| S | 4 | # of Mounting Bolts |
| S | 31.75 mm | Mounting bolt diameter |
