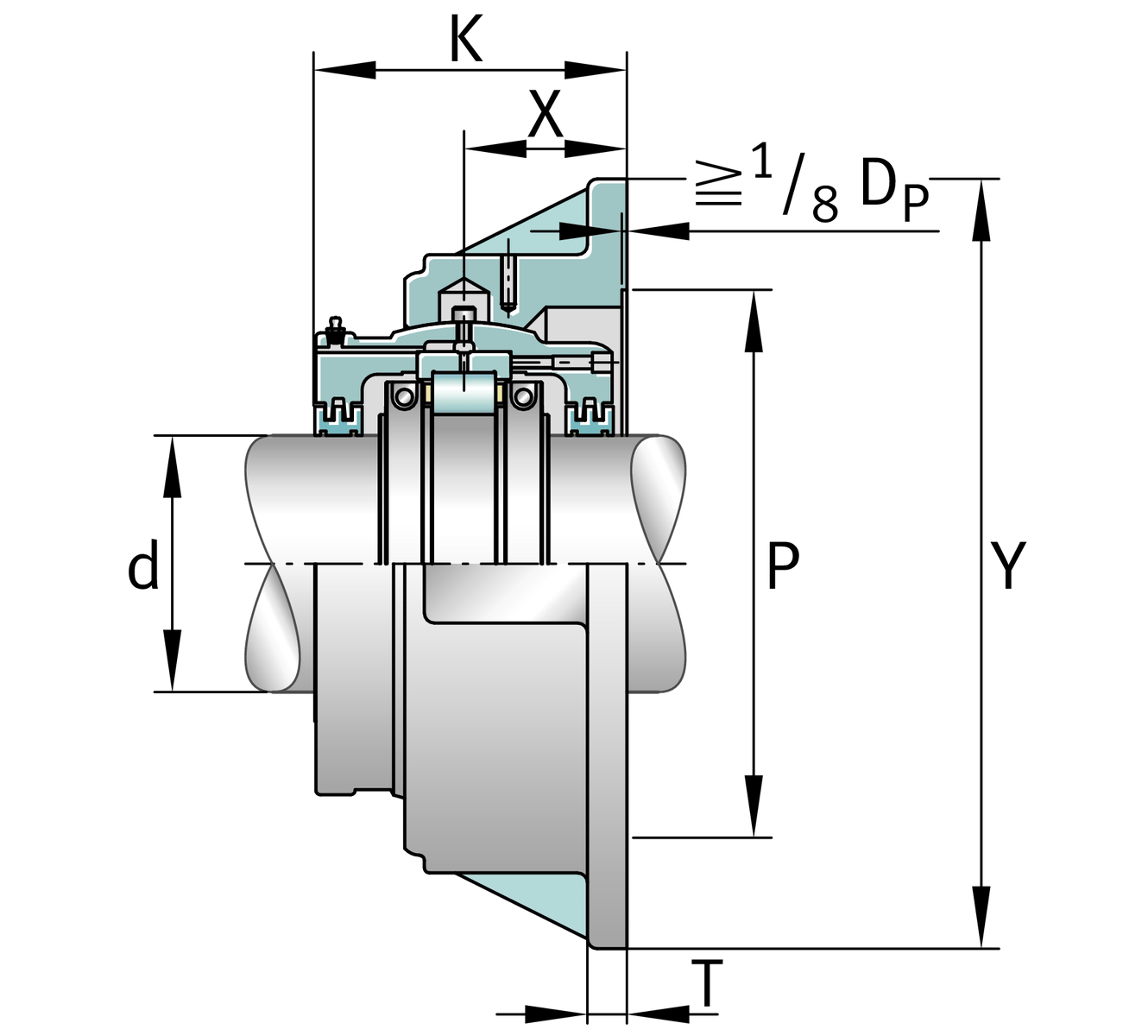

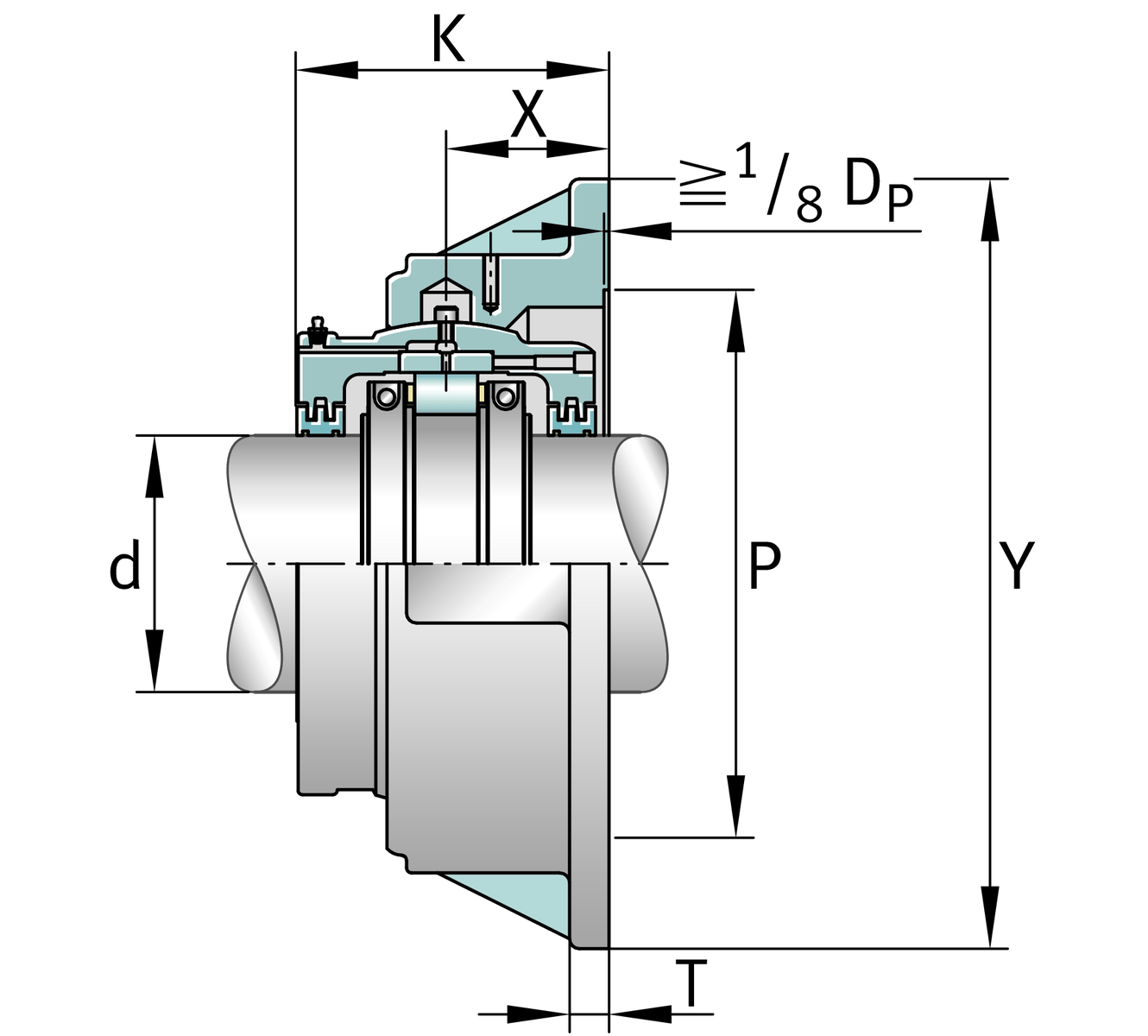

Main Dimensions & Performance Data
| d | 152.4 mm | Shaft diameter |
| Y | 533.4 mm | Flange outside diameter |
| K | 225.425 mm | Width |
| ≈m | 154.221 kg | Weight |
Dimensions
S2BCF-600-FL | Complete unit float | |
S2BCF-600-HD | Complete unit held | |
FH-21 | Housing deignation | |
| X | 123.825 mm | Bearing centerline location |

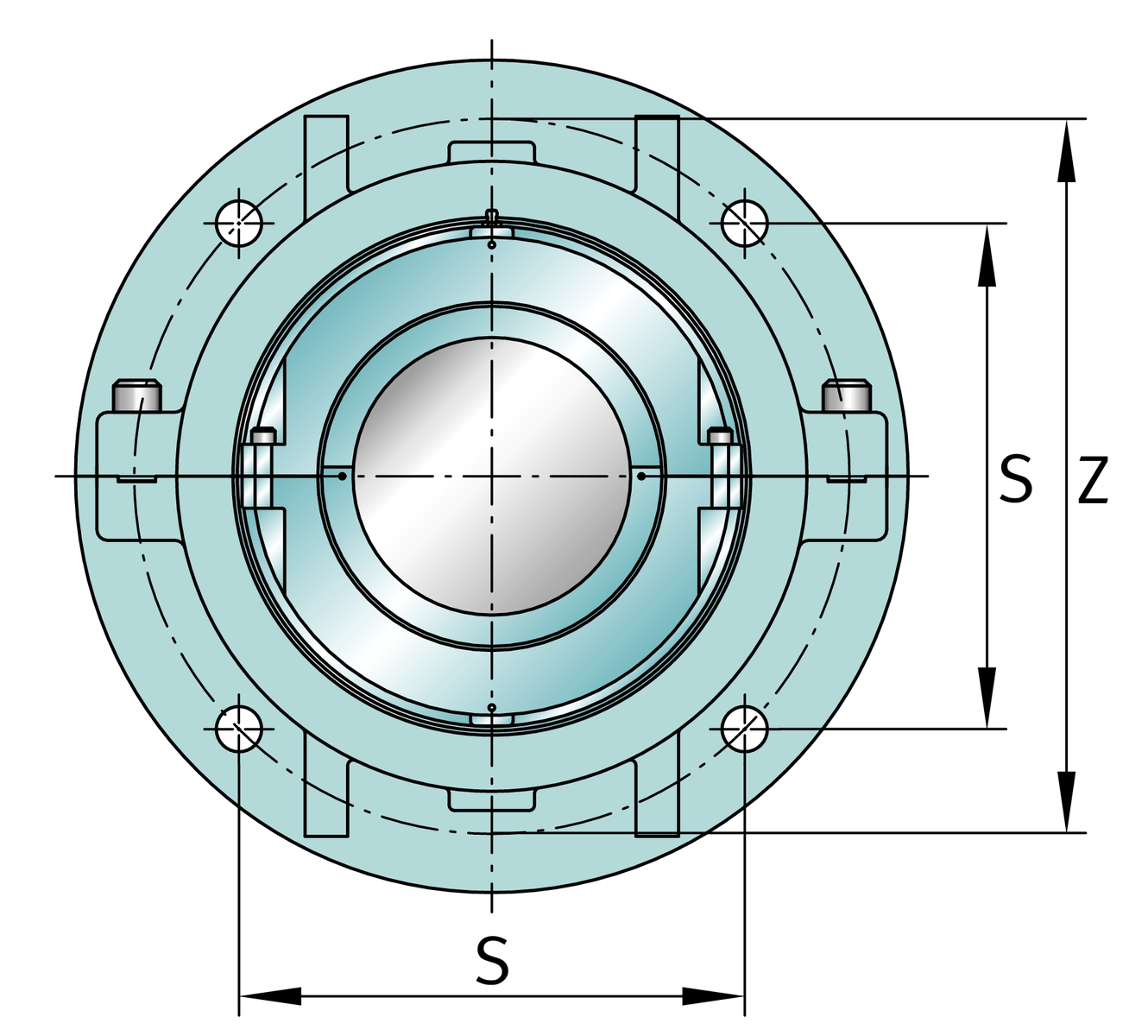

| Z | 466.725 mm | Bolt circle diameter |
| S | 330.2 mm | Bolt hole distance |
| T | 25.4 mm | Thickness of flange |
| P | 393.7 mm | Pilot counterbore diameter |
| S | 4 | # of Mounting Bolts |
| S | 25.4 mm | Mounting bolt diameter |
