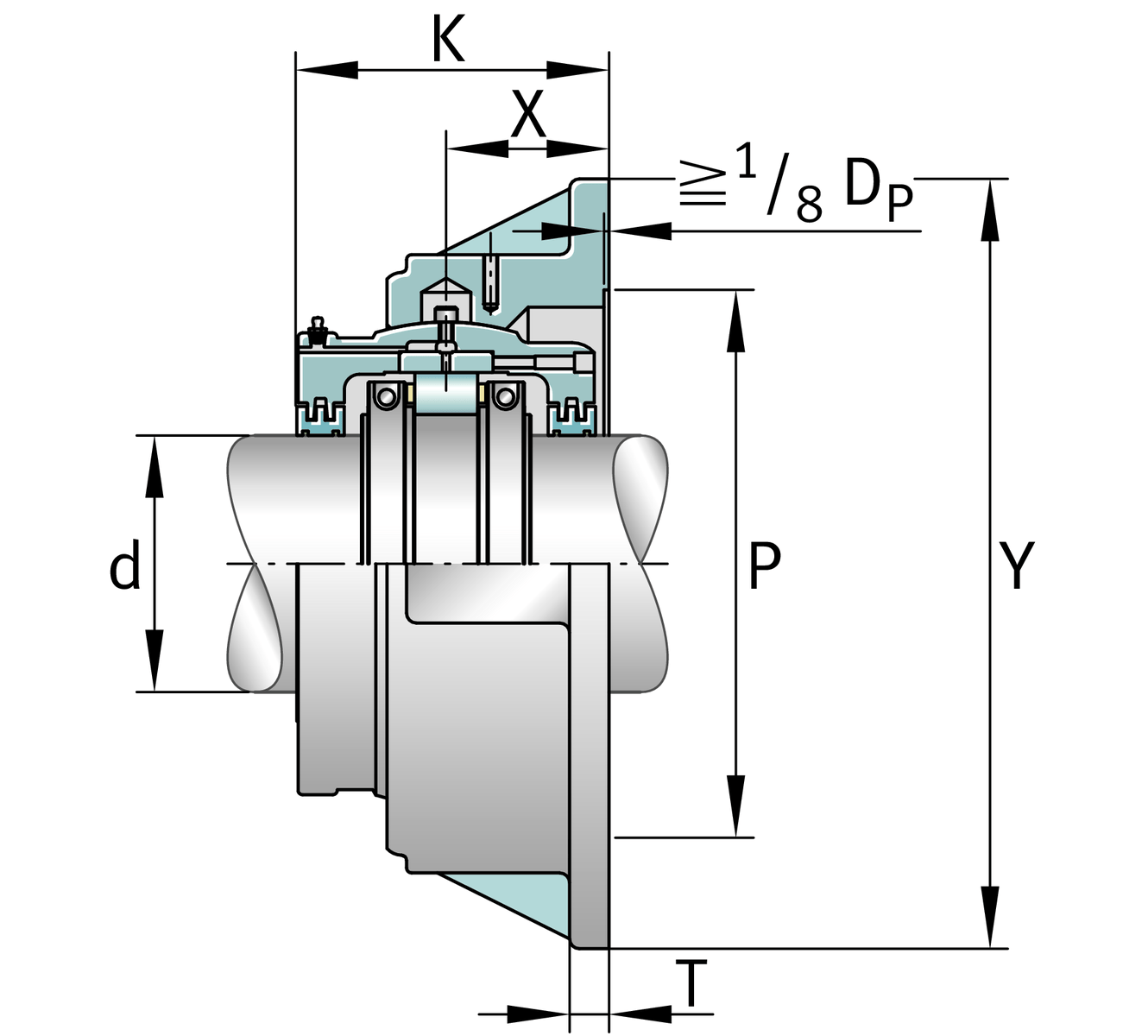

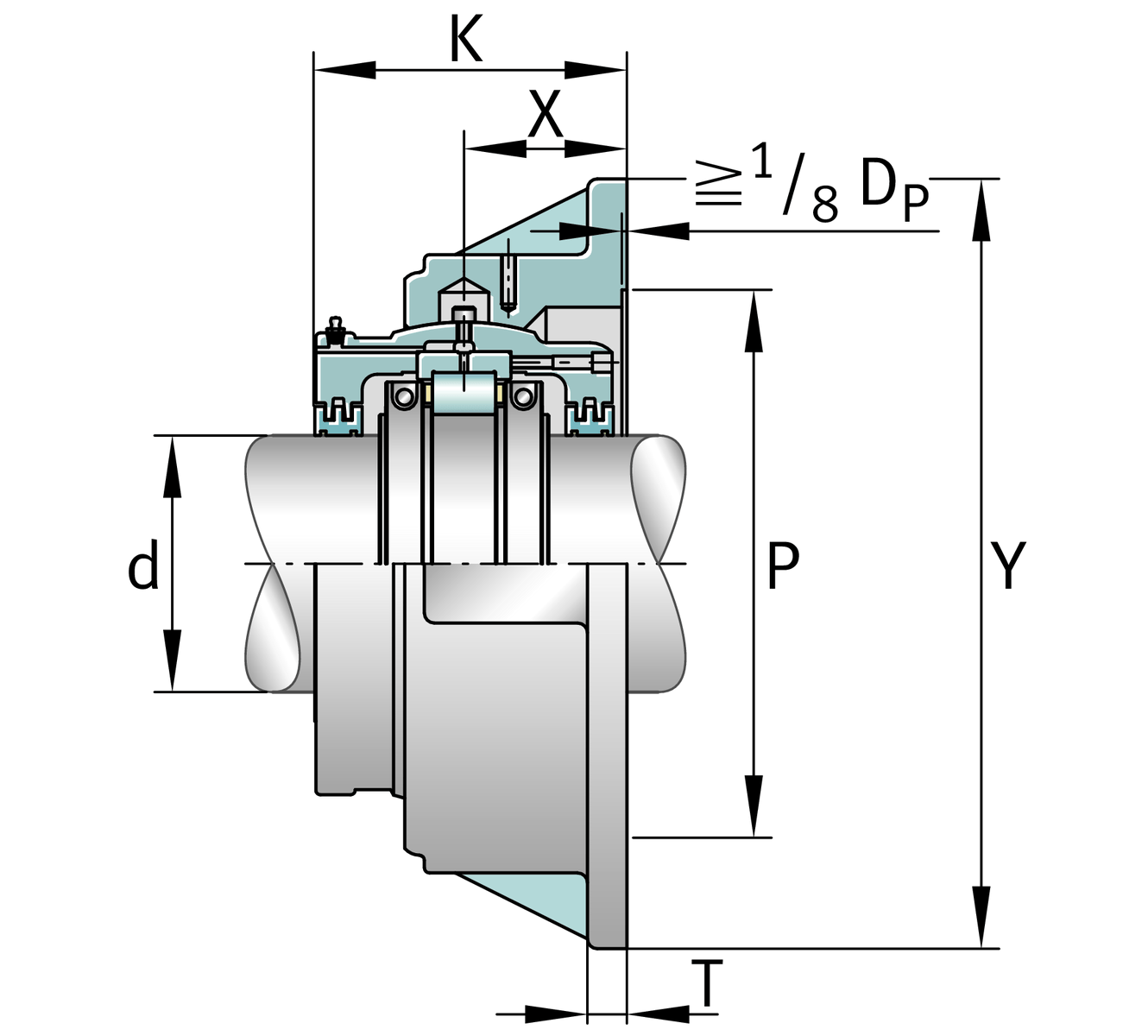

Main Dimensions & Performance Data
| d | 320 mm | Shaft diameter |
| Y | 914.4 mm | Flange outside diameter |
| K | 355.6 mm | Width |
| ≈m | 635.029 kg | Weight |
Dimensions
S2BCF-320MM-FL | Complete unit float | |
S2BCF-320MM-HD | Complete unit held | |
FH-29 | Housing deignation | |

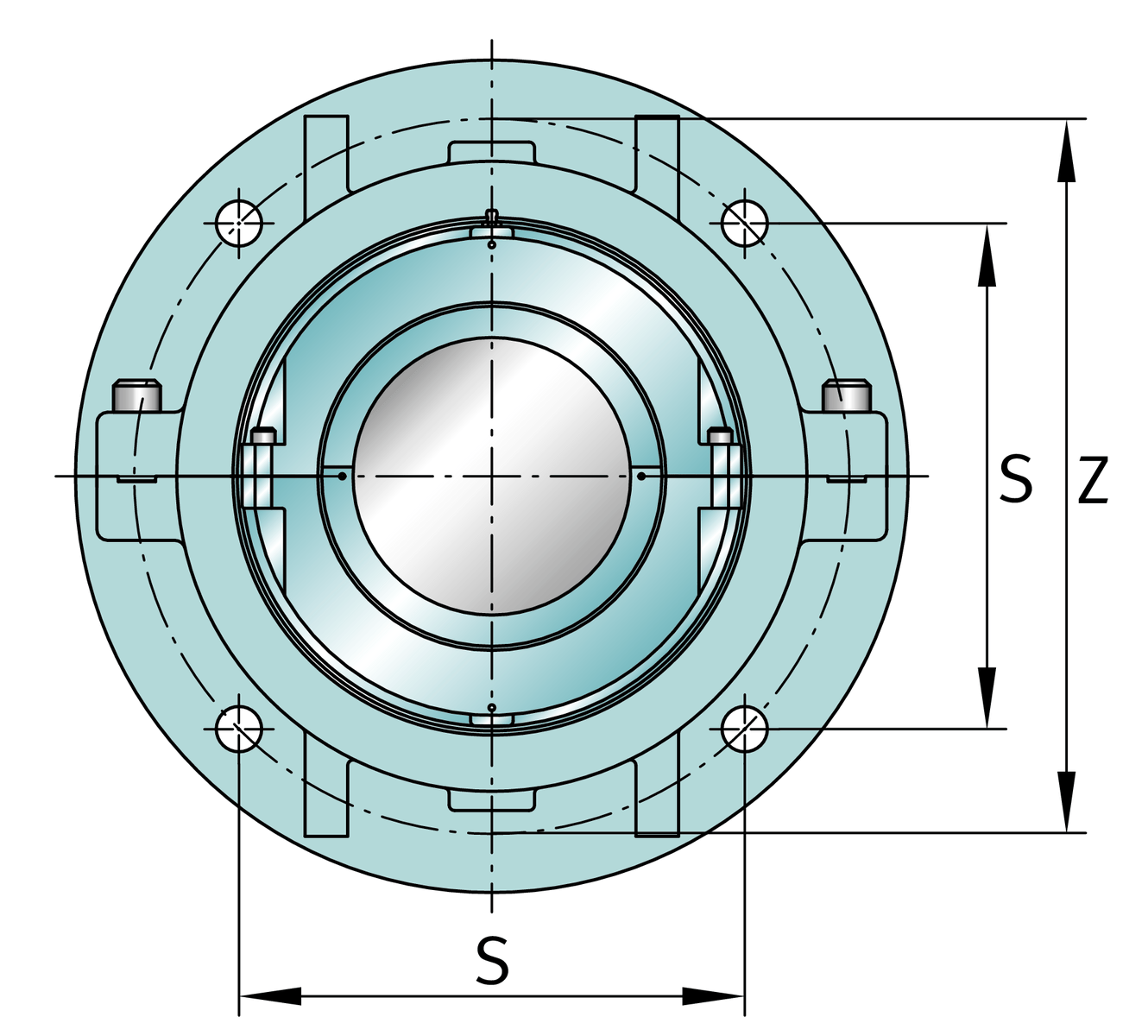

| X | 190.5 mm | Bearing centerline location |
| Z | 800.1 mm | Bolt circle diameter |
| S | 565.15 mm | Bolt hole distance |
| T | 44.45 mm | Thickness of flange |
| P | 679.45 mm | Pilot counterbore diameter |
| S | 8 | # of Mounting Bolts |
| S | 31.75 mm | Mounting bolt diameter |
