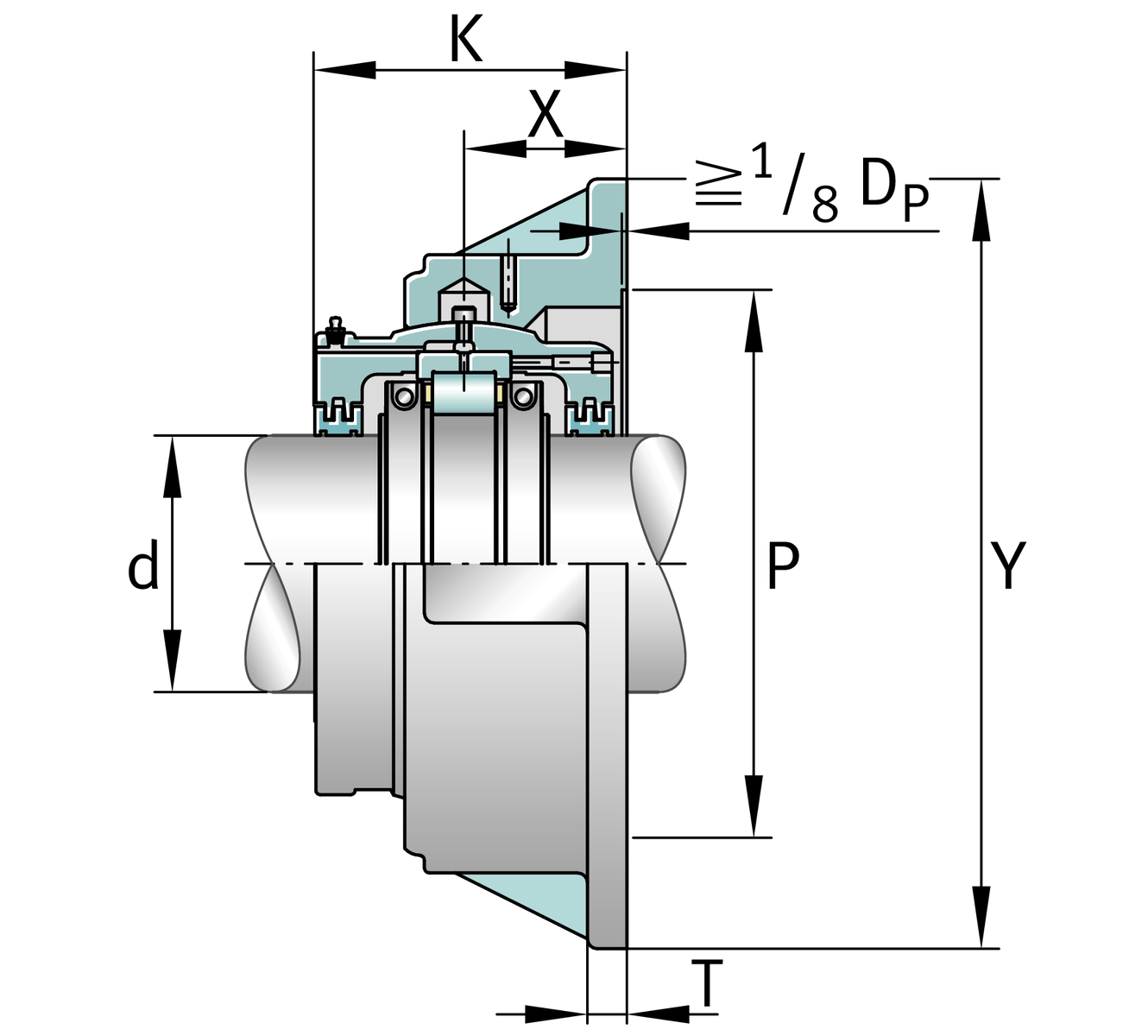

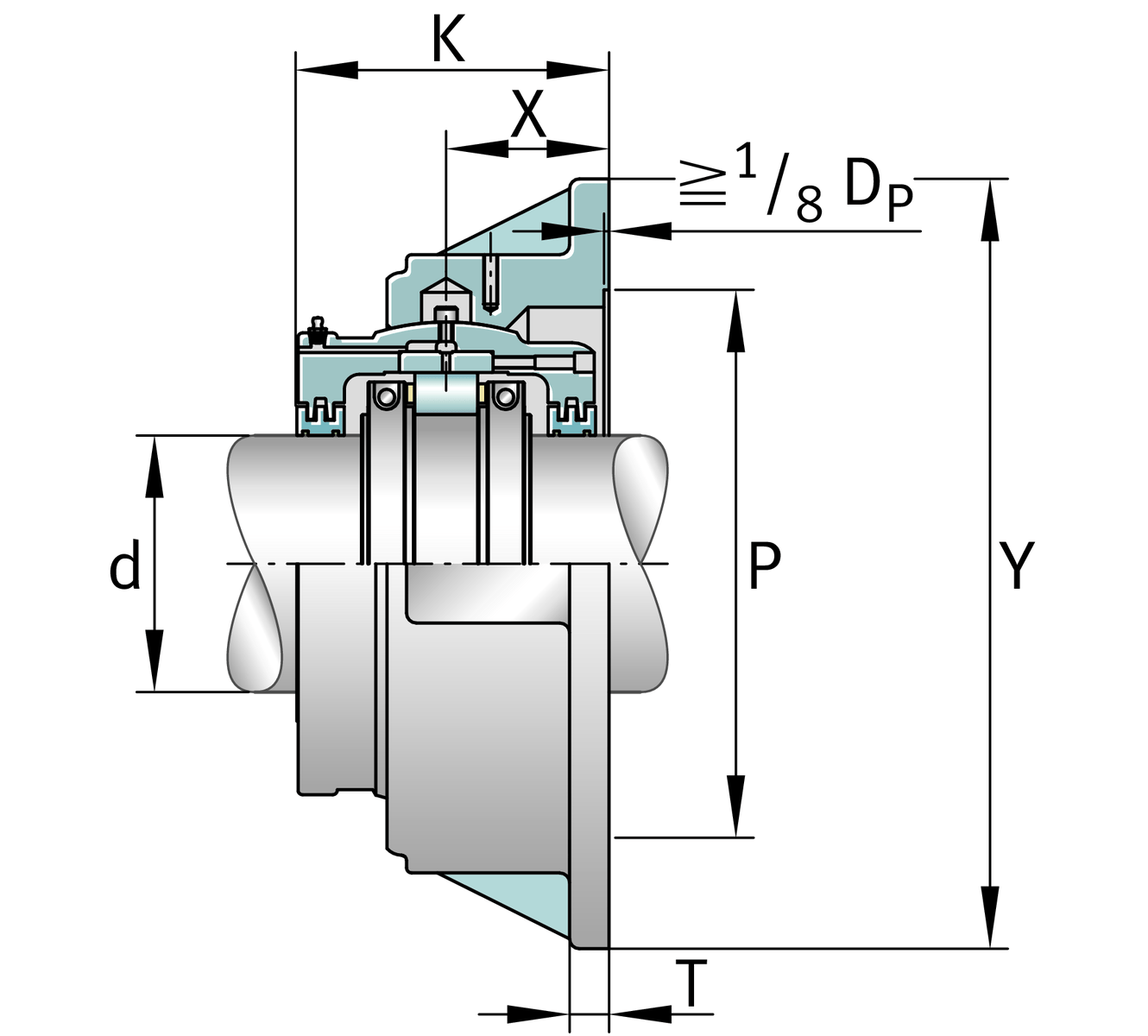

Main Dimensions & Performance Data
| d | 280 mm | Shaft diameter |
| Y | 762 mm | Flange outside diameter |
| K | 307.975 mm | Width |
| ≈m | 434.088 kg | Weight |
Dimensions
S2BCF-280MM-FL | Complete unit float | |
S2BCF-280MM-HD | Complete unit held | |
FH-27 | Housing deignation | |

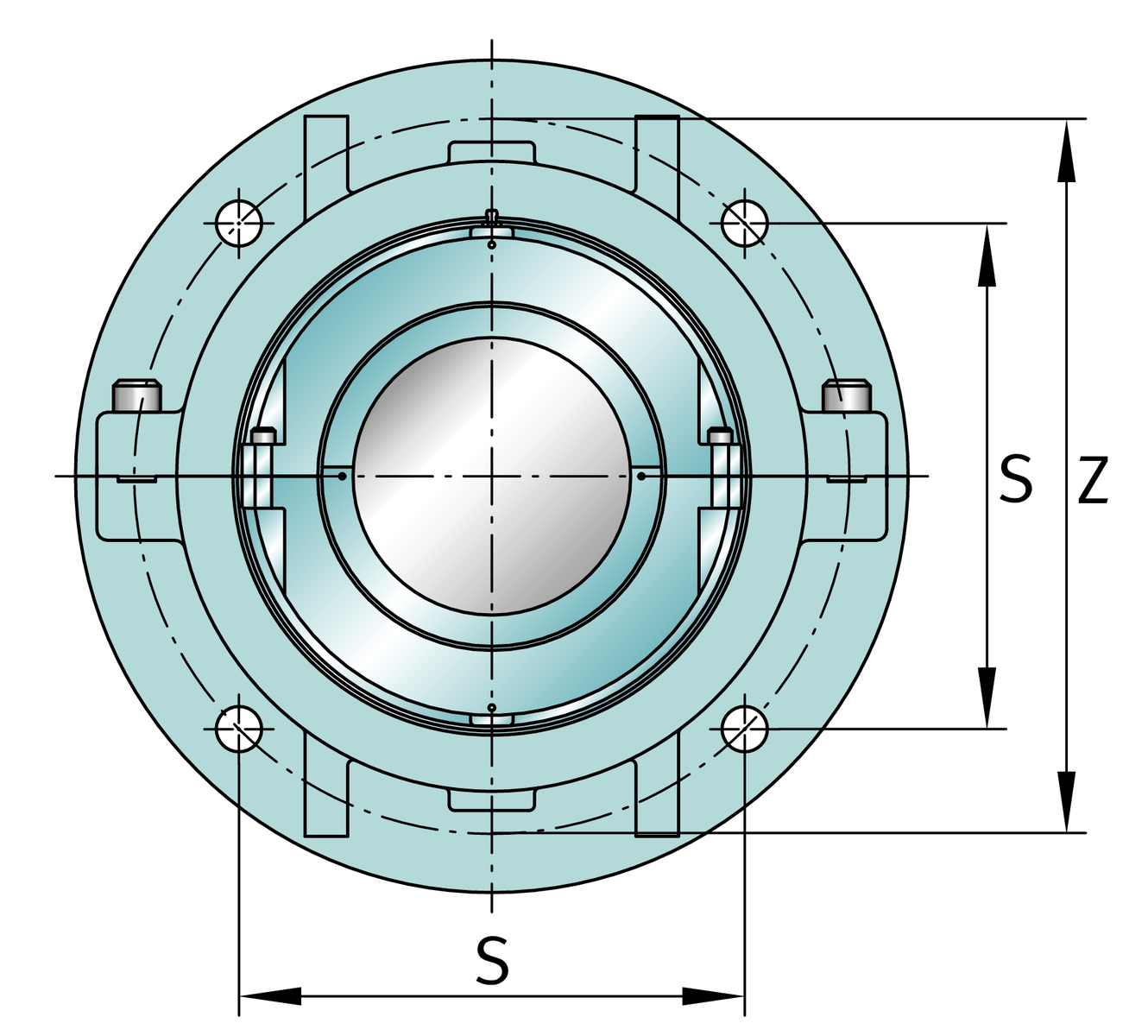

| X | 158.75 mm | Bearing centerline location |
| Z | 682.625 mm | Bolt circle diameter |
| S | 482.6 mm | Bolt hole distance |
| T | 38.1 mm | Thickness of flange |
| P | 603.25 mm | Pilot counterbore diameter |
| S | 8 | # of Mounting Bolts |
| S | 31.75 mm | Mounting bolt diameter |
