S2BCF-260MM-FL
Plummer block housing unit S2BCF-260MM-FL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
250 mm
Shaft diameter
Y
736.6 mm
Flange outside diameter
K
288.925 mm
Width
≈m
434.088 kg
Weight

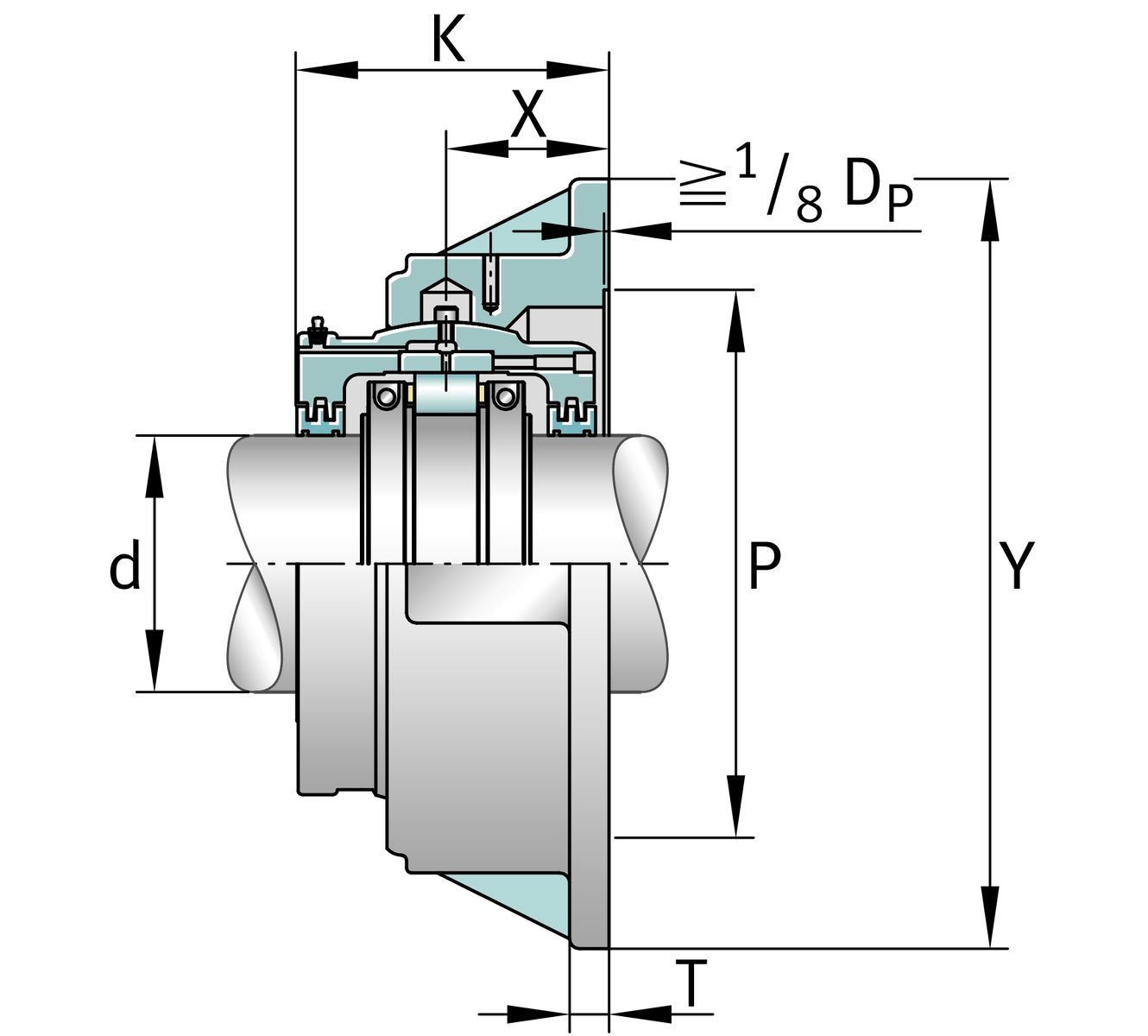

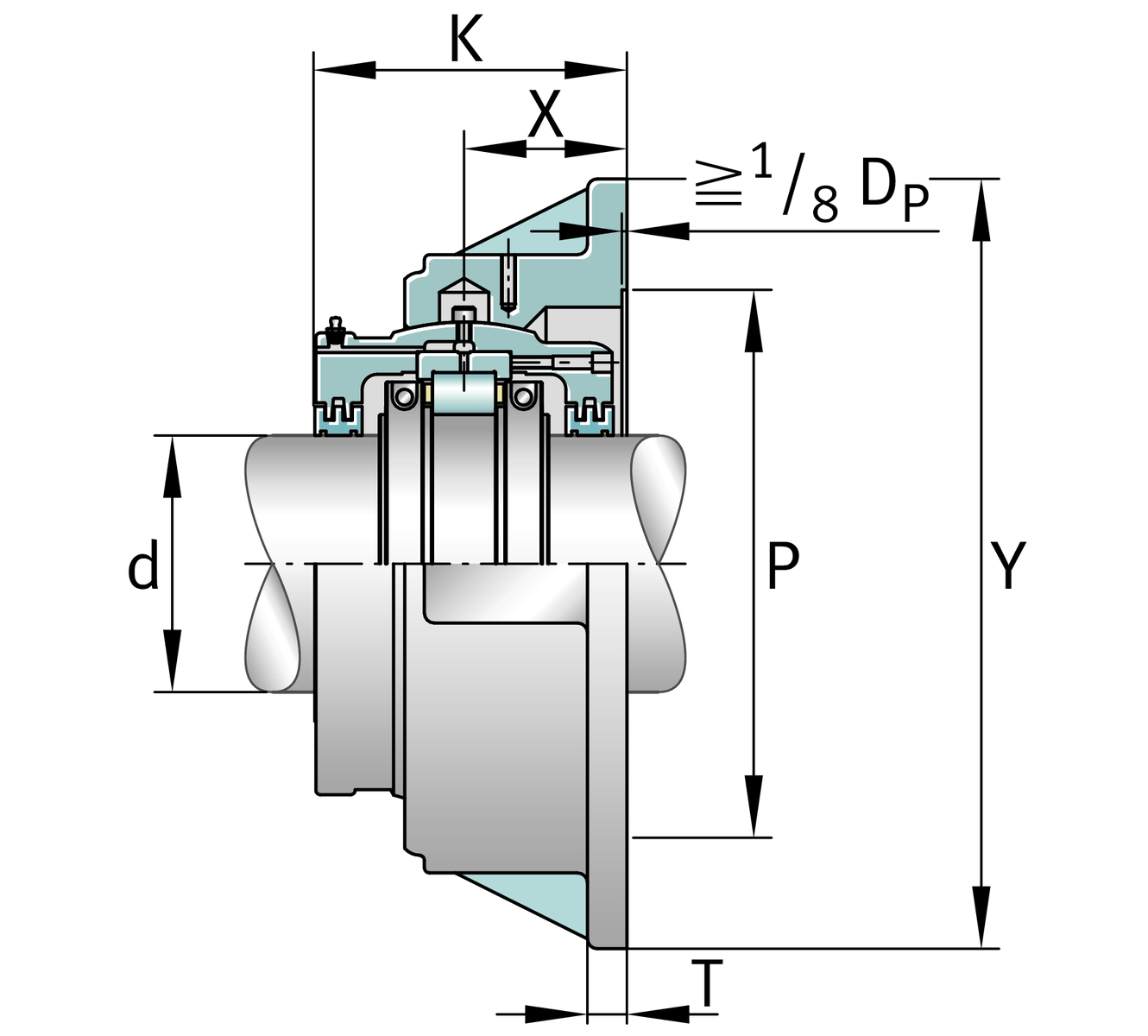

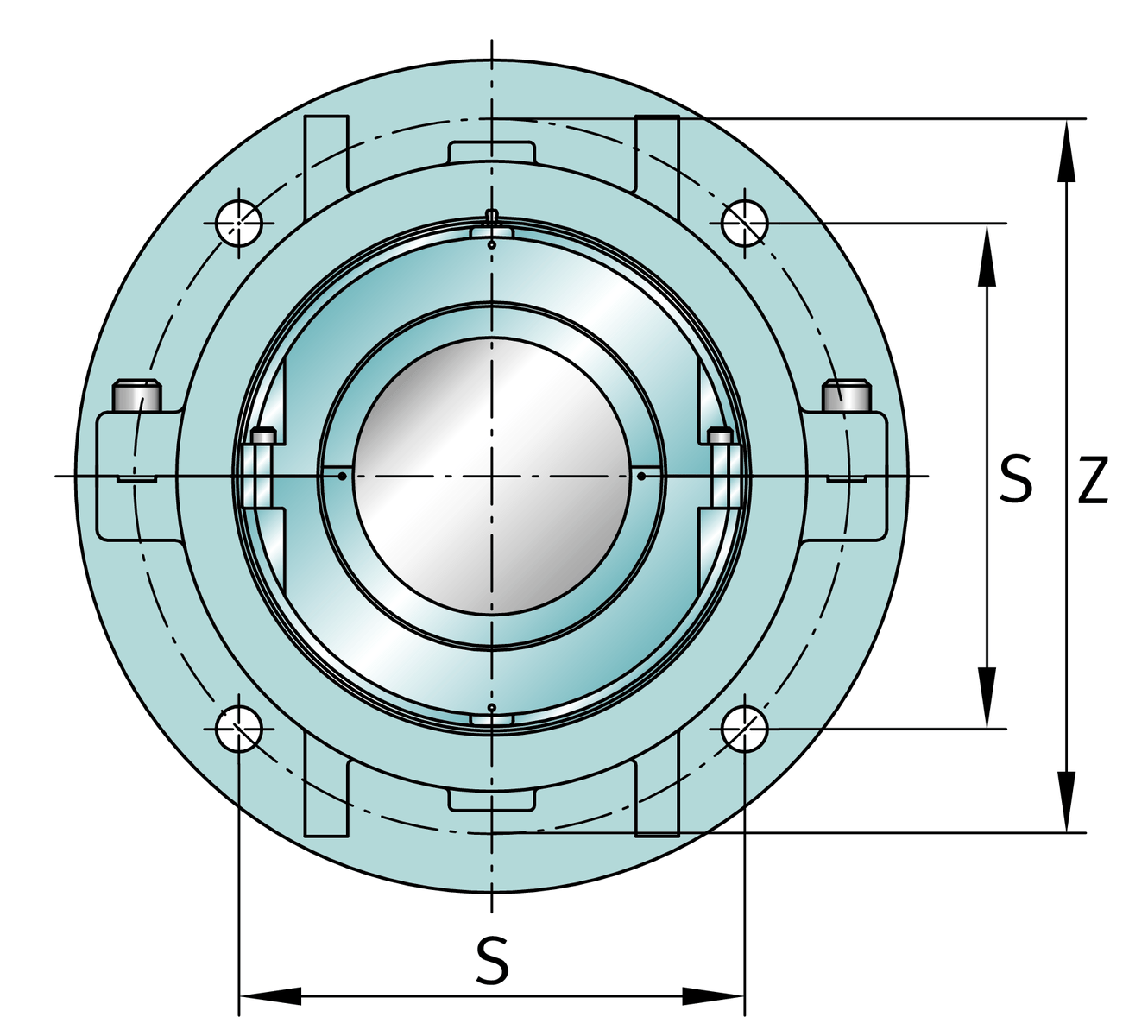

Dimensions
S2BCF-260MM-FL
Complete unit float
S2BCF-260MM-HD
Complete unit held
FH-26
Housing deignation
X
149.225 mm
Bearing centerline location
Z
660.4 mm
Bolt circle diameter
S
466.725 mm
Bolt hole distance
T
38.1 mm
Thickness of flange
P
568.325 mm
Pilot counterbore diameter
S
4
# of Mounting Bolts
S
38.1 mm
Mounting bolt diameter
