Main Dimensions & Performance Data
| d | 69.85 mm | Shaft diameter |
| Y | 330.2 mm | Flange outside diameter |
| K | 149.225 mm | Width |
| ≈m | 31.298 kg | Weight |

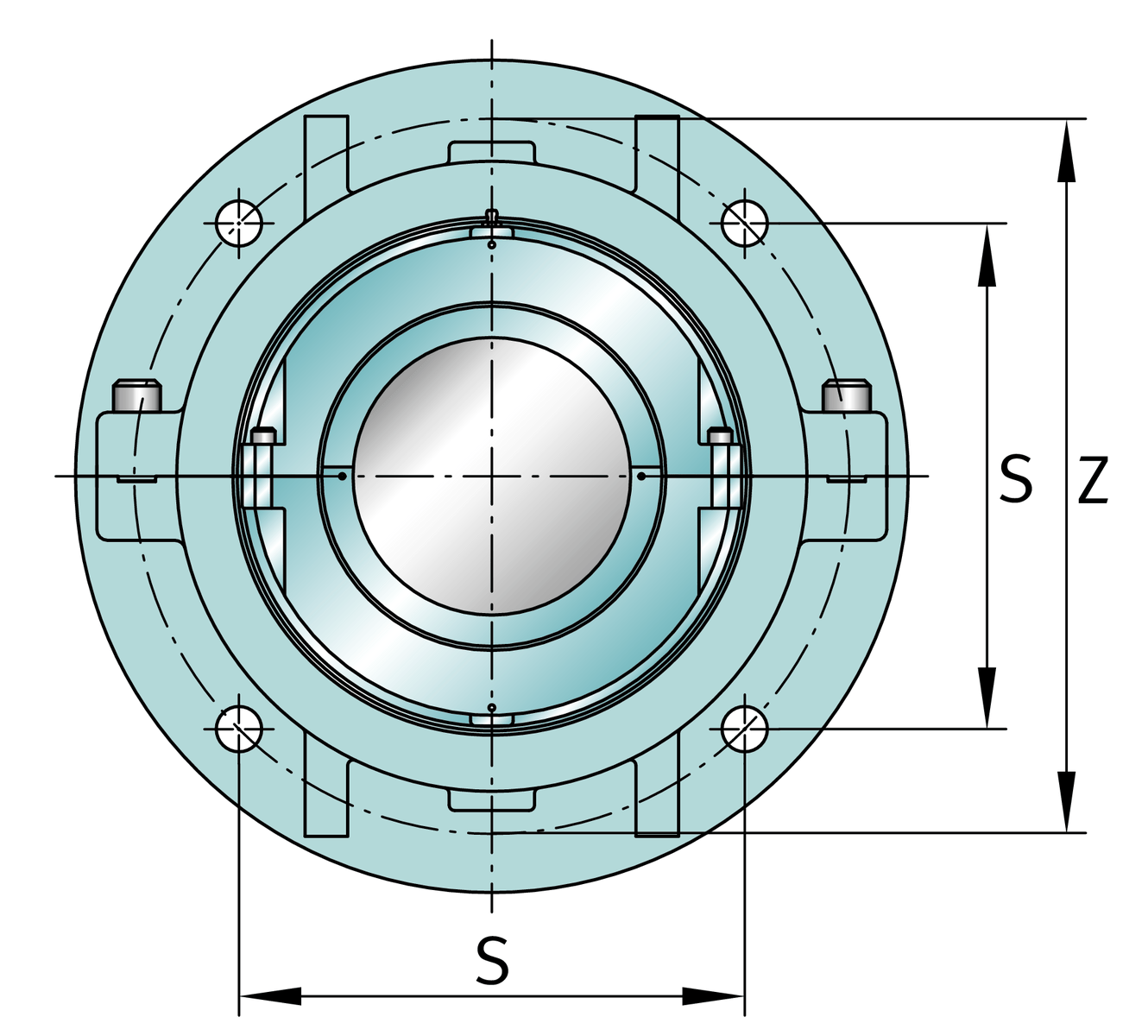

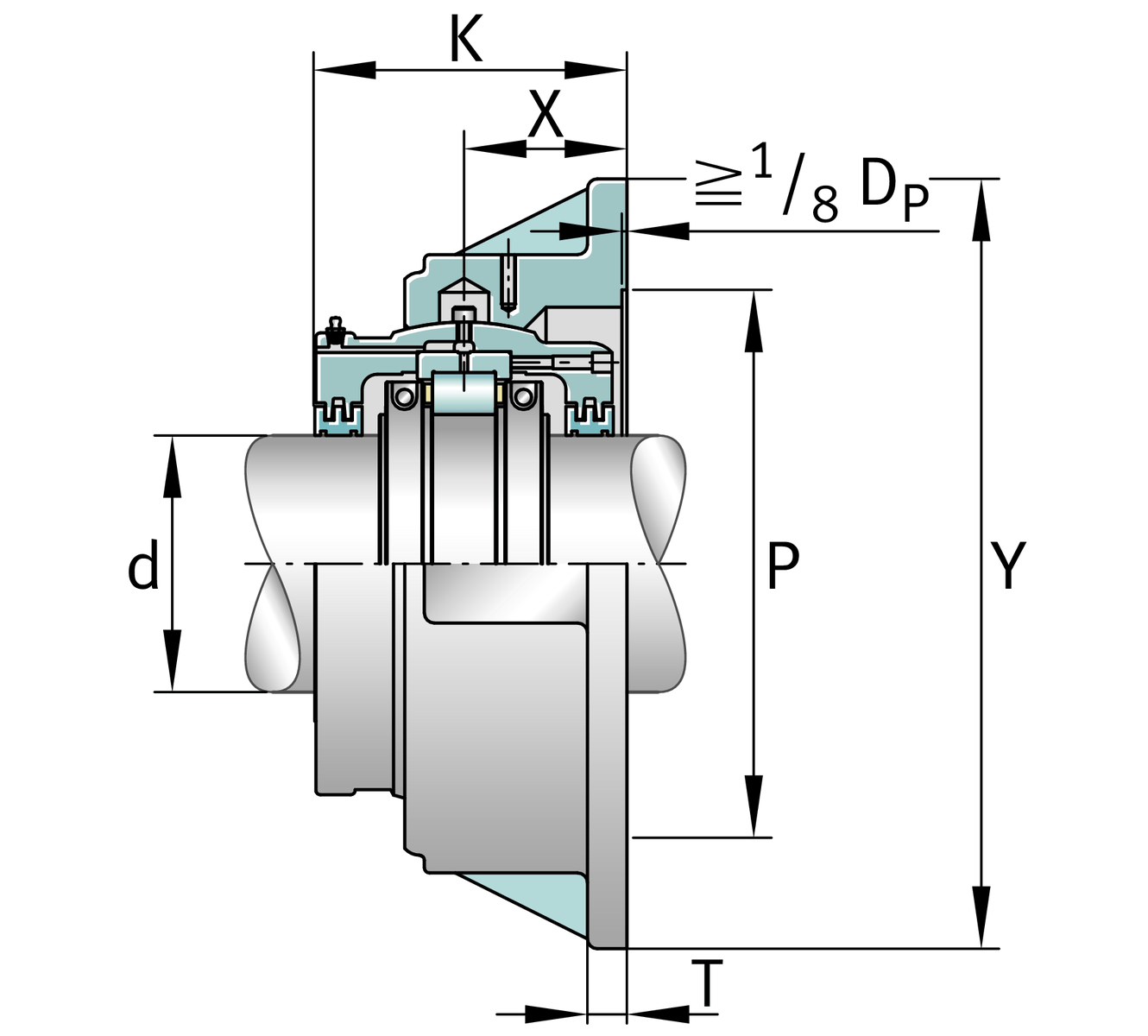

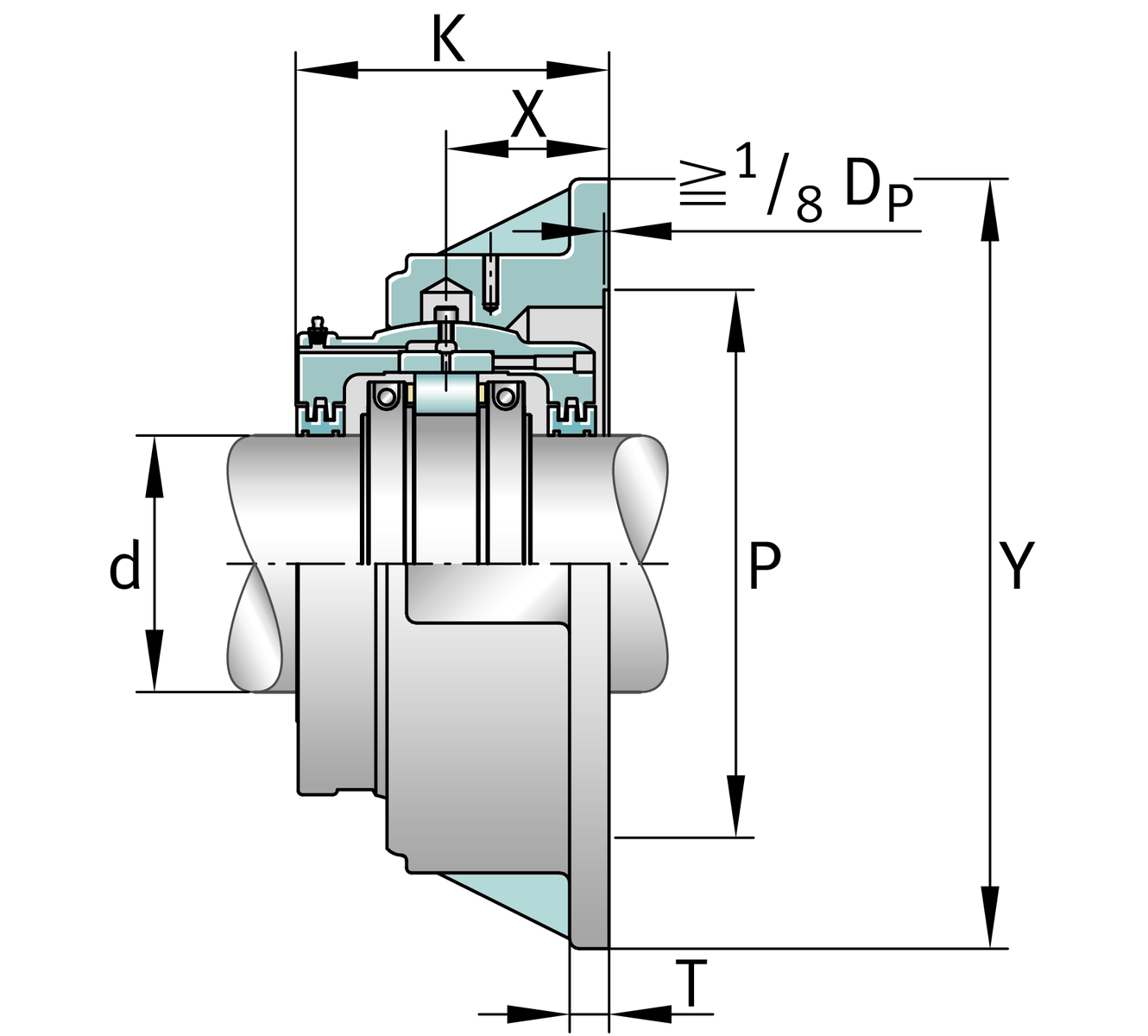

Dimensions
S2BCF-212-FL | Complete unit float | |
S2BCF-212-HD | Complete unit held | |
FH-5 | Housing deignation | |
| X | 79.375 mm | Bearing centerline location |
| Z | 273.05 mm | Bolt circle diameter |
| S | 193.675 mm | Bolt hole distance |
| T | 19.05 mm | Thickness of flange |
| P | 215.9 mm | Pilot counterbore diameter |
| S | 4 | # of Mounting Bolts |
| S | 15.875 mm | Mounting bolt diameter |
