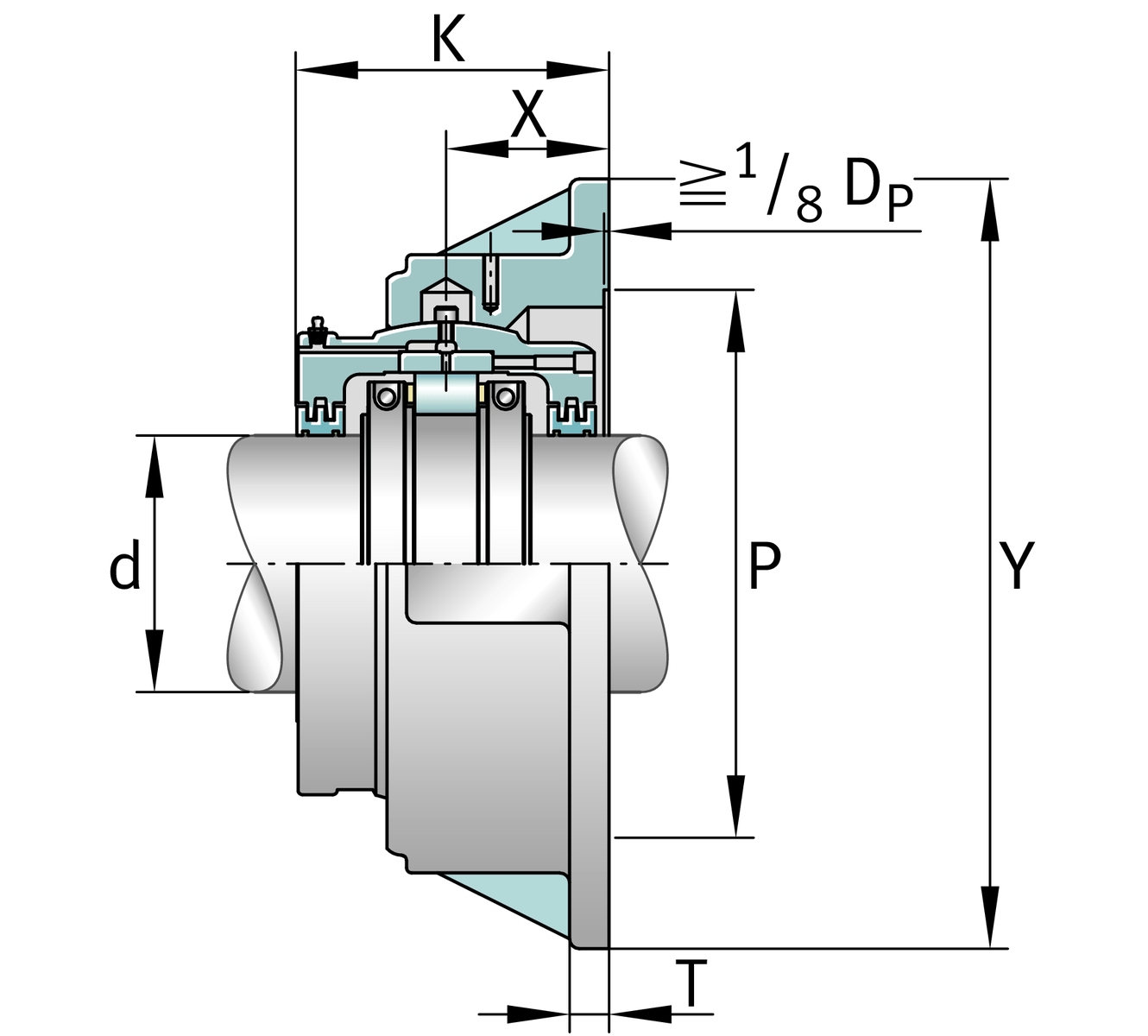

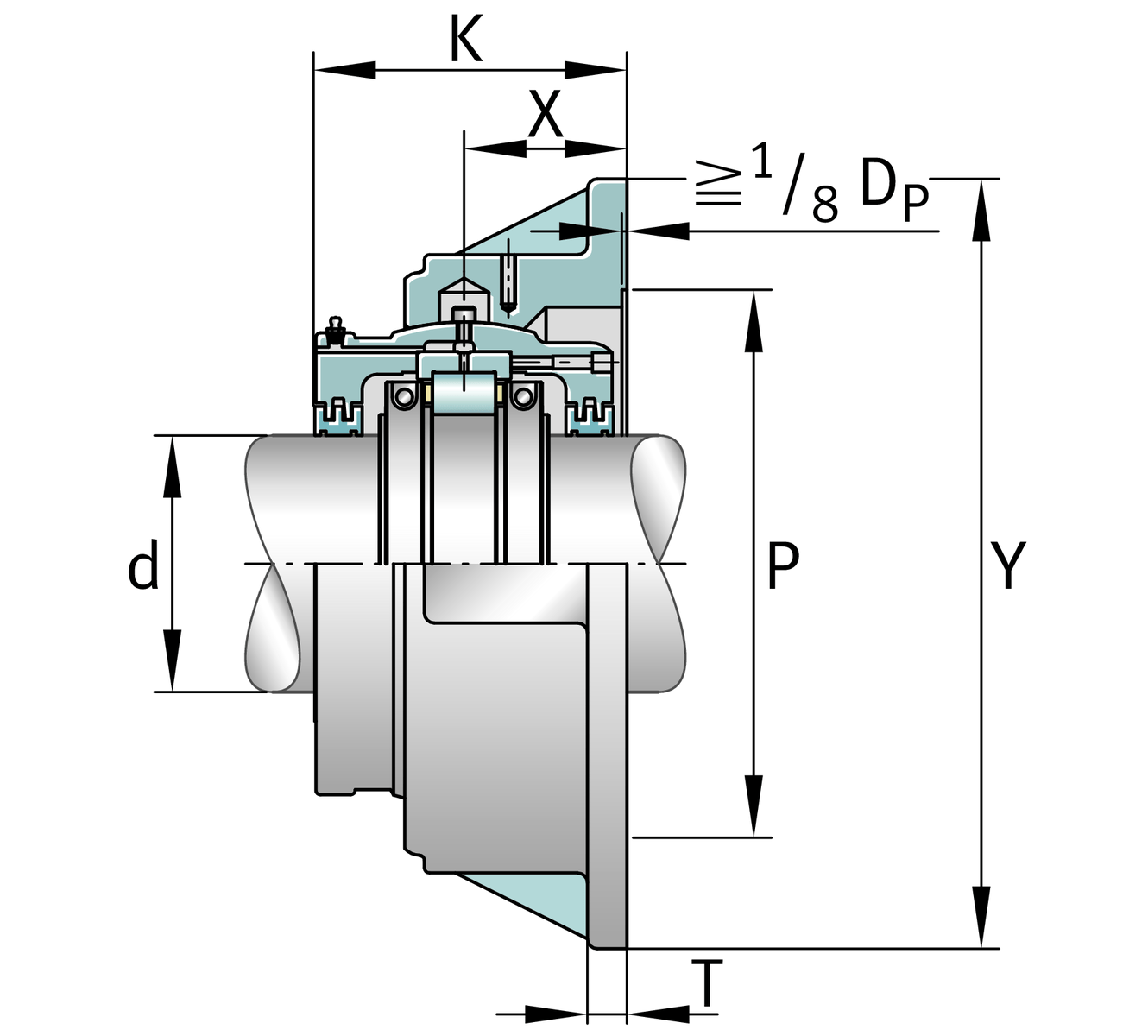

Main Dimensions & Performance Data
| d | 140 mm | Shaft diameter |
| Y | 508 mm | Flange outside diameter |
| K | 207.962 mm | Width |
| ≈m | 131.542 kg | Weight |
Dimensions
S2BCF-140MM-FL | Complete unit float | |
S2BCF-140MM-HD | Complete unit held | |
FH-20 | Housing deignation | |

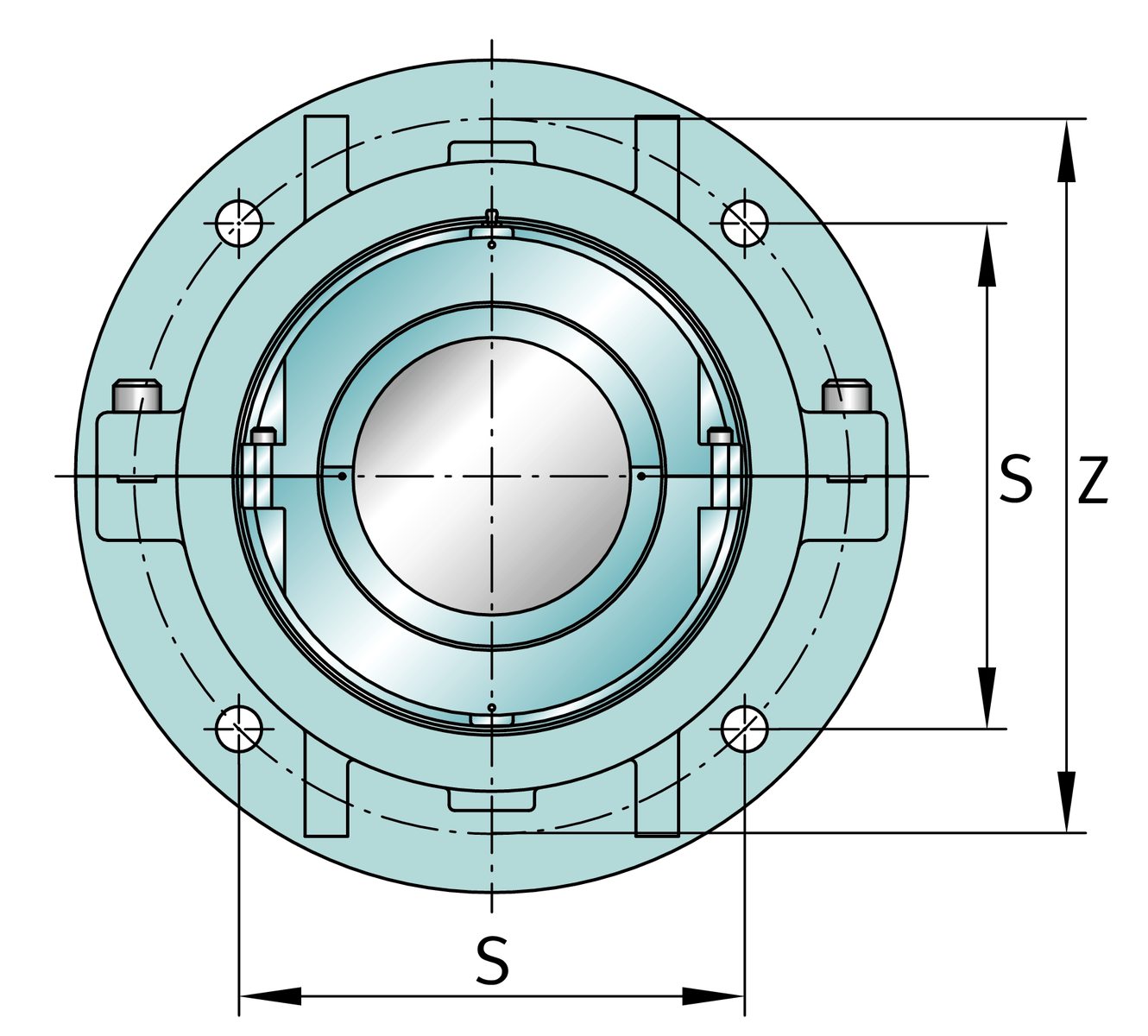

| X | 111.125 mm | Bearing centerline location |
| Z | 444.5 mm | Bolt circle diameter |
| S | 314.325 mm | Bolt hole distance |
| T | 25.4 mm | Thickness of flange |
| P | 377.825 mm | Pilot counterbore diameter |
| S | 4 | # of Mounting Bolts |
| S | 25.4 mm | Mounting bolt diameter |
