FAG INA Schaeffler
INA
NKI35/30-XL-2S
Needle roller bearing NKI35/30-XL-2S
Thêm vào yêu cầu báo giá

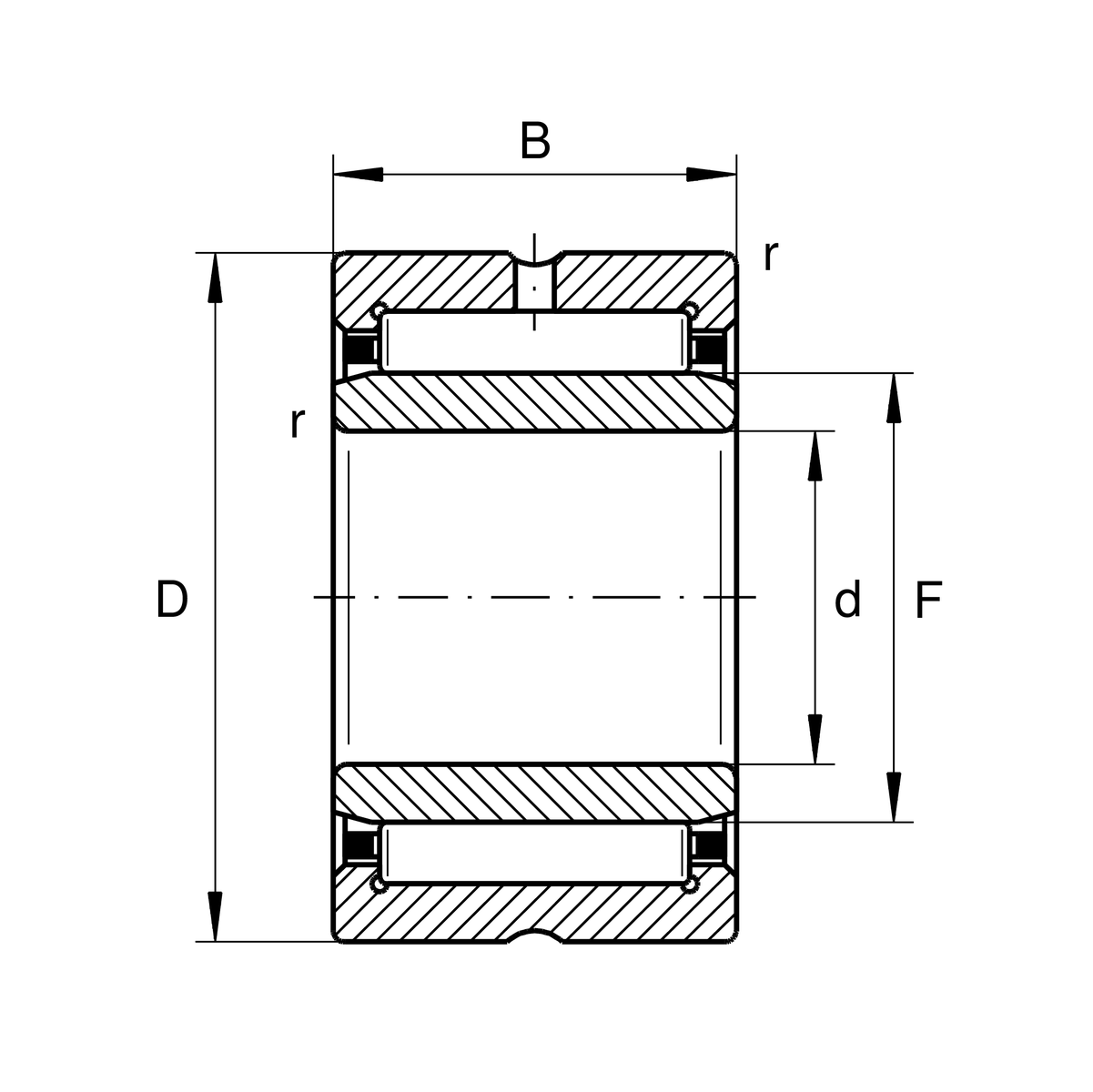

Main Dimensions & Performance Data
d
35 mm
Bore diameter
D
50 mm
Outside diameter
B
30 mm
Width
Cr
44,000 N
Basic dynamic load rating, radial
C0r
79,000 N
Basic static load rating, radial
Cur
14,900 N
Fatigue load limit, radial
nG
11,400 1/min
Limiting speed
nϑr
6,200 1/min
Reference speed
≈m
193 g
Weight

Dimensions
F
40 mm
Raceway diameter inner ring
rmin
0.3 mm
Minimum chamfer dimension

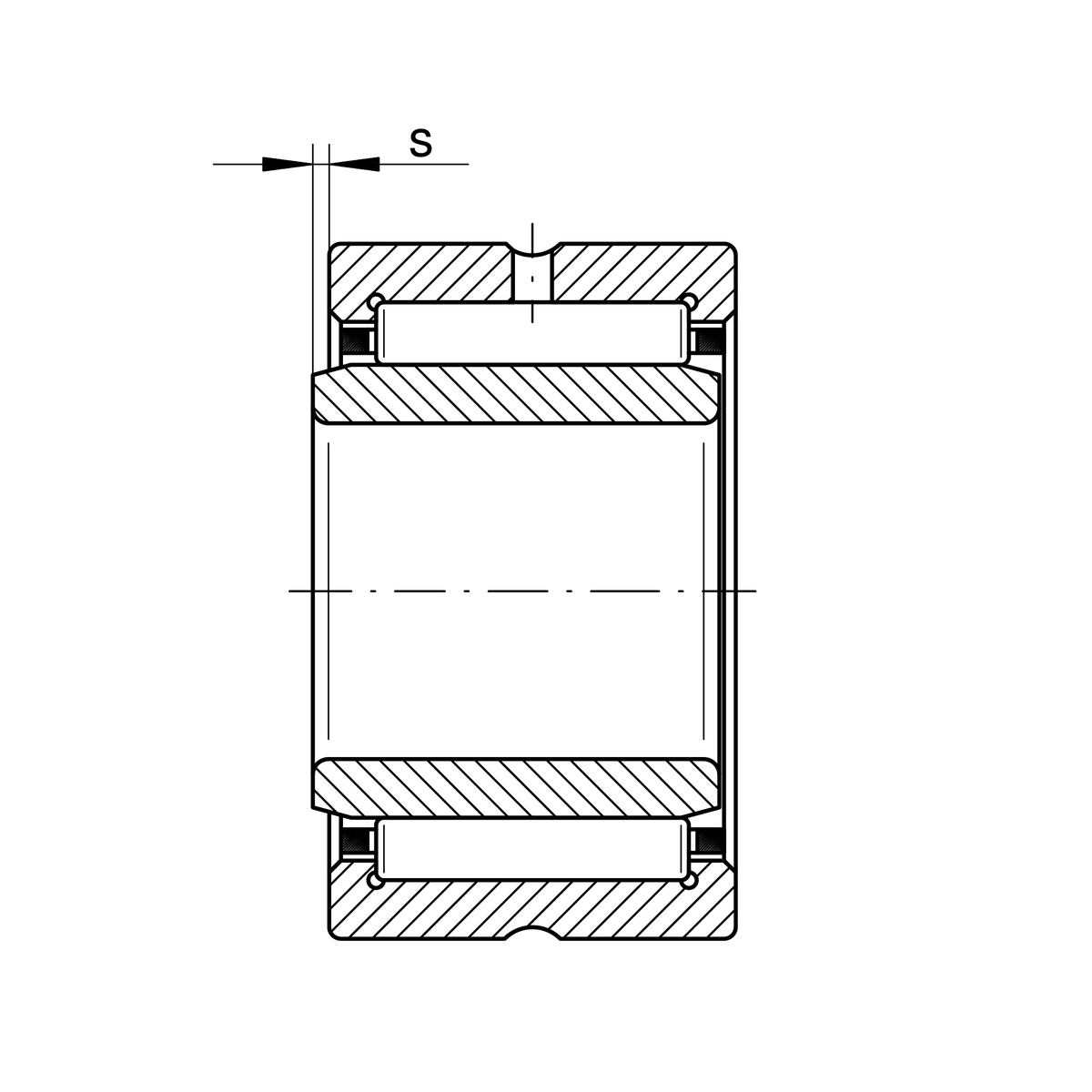

s
1 mm
Axial displacement

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
CageStandardStandard
Radial internal clearanceCN (Group N)Normal internal clearance
Tolerance classPNNormal (PN)
Lubrication holewith
CoatingWithout
LubricantWithout
Assorted bearings2S2 bearings sorted together
