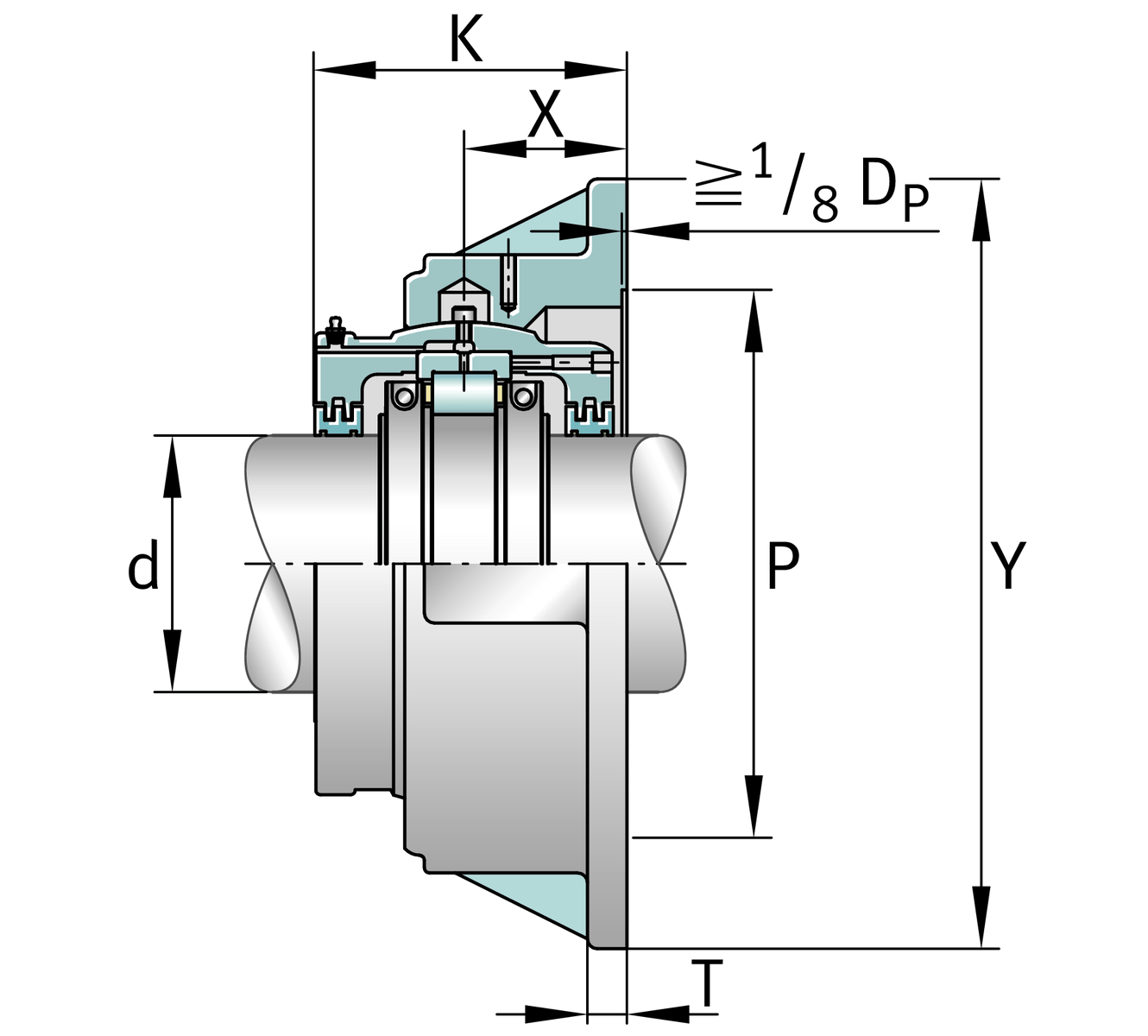

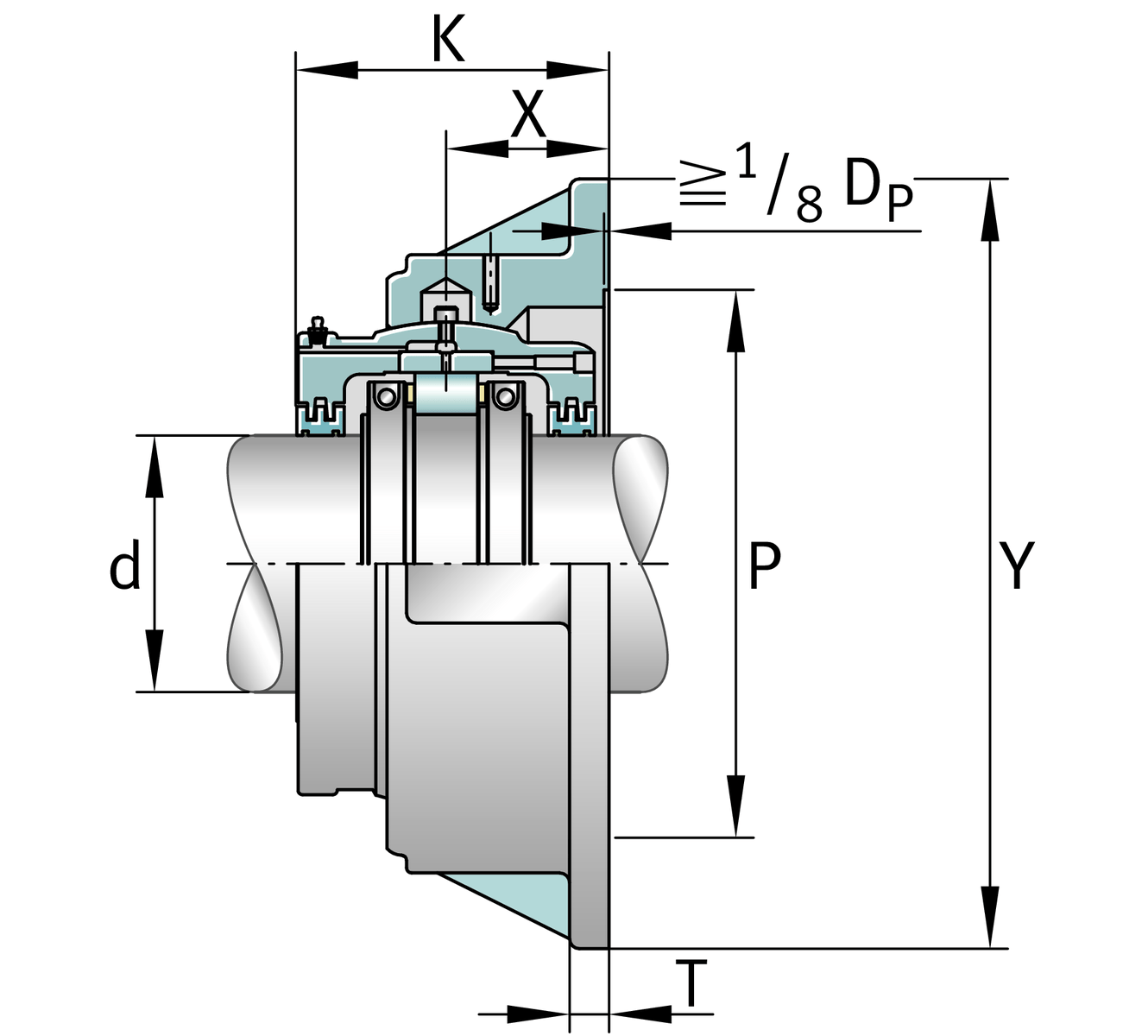

Main Dimensions & Performance Data
| d | 125 mm | Shaft diameter |
| Y | 469.9 mm | Flange outside diameter |
| K | 204.787 mm | Width |
| ≈m | 109.769 kg | Weight |
Dimensions
S2BCF-125MM-FL | Complete unit float | |
S2BCF-125MM-HD | Complete unit held | |
FH-10 | Housing deignation | |

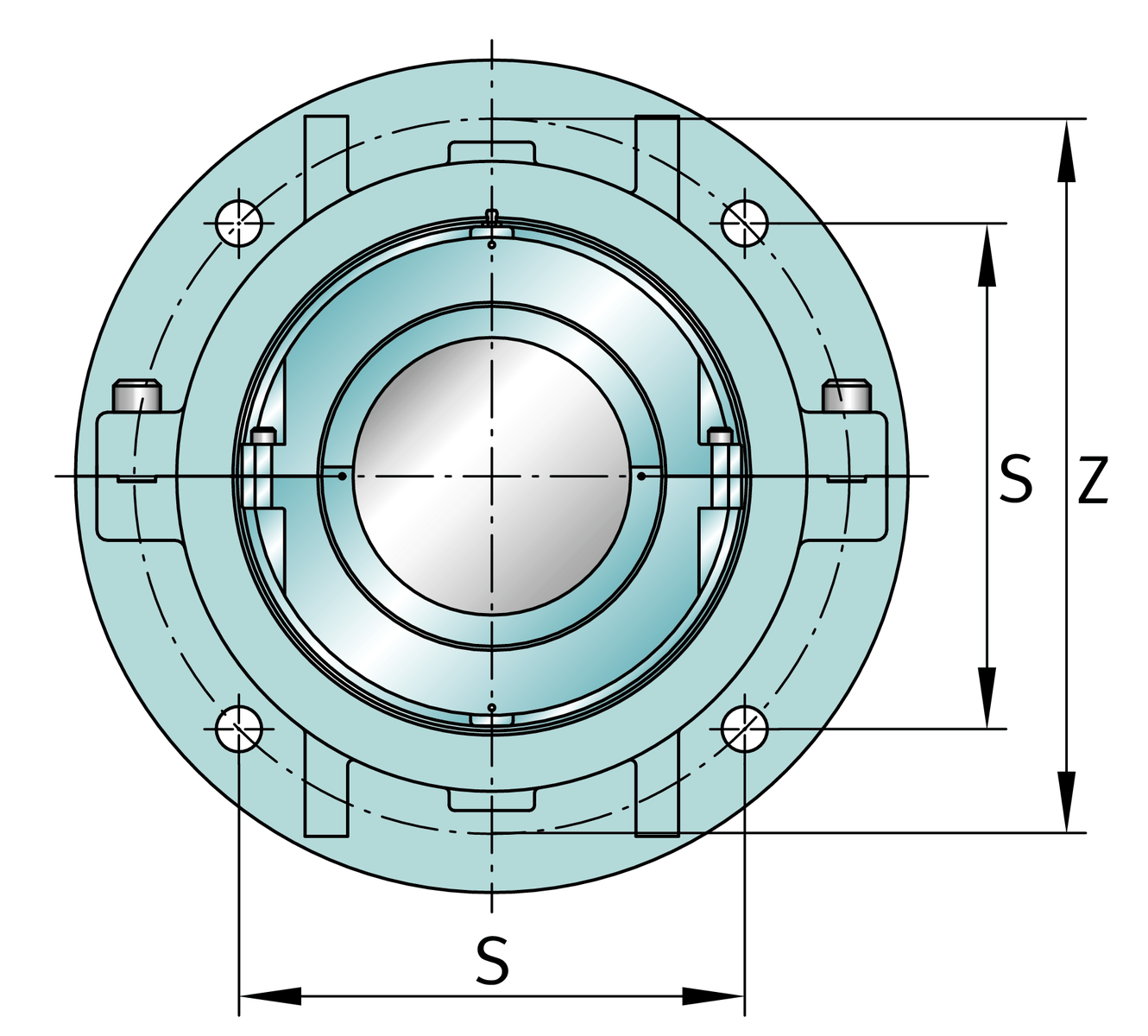

| X | 114.3 mm | Bearing centerline location |
| Z | 412.75 mm | Bolt circle diameter |
| S | 292.1 mm | Bolt hole distance |
| T | 25.4 mm | Thickness of flange |
| P | 346.075 mm | Pilot counterbore diameter |
| S | 4 | # of Mounting Bolts |
| S | 25.4 mm | Mounting bolt diameter |
