F-673270.04.TILL
Bearing F-673270.04.TILL
Thêm vào yêu cầu báo giá

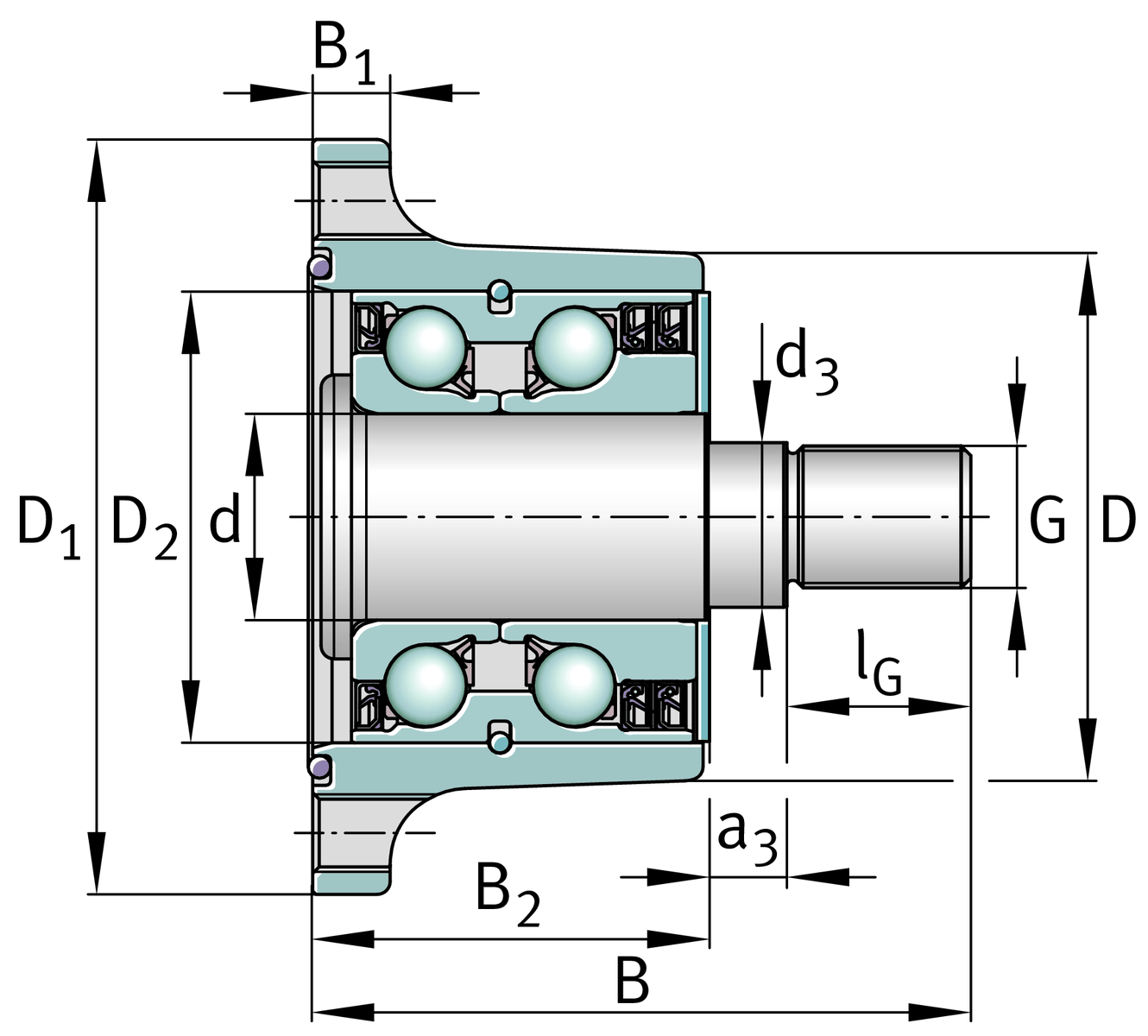

Main Dimensions & Performance Data
d
32 mm
Bolt diameter
D
81.6 mm
Outer diameter housing
D1
117 mm
Diameter flange
B
102 mm
Total height unit
Cr
50,000 N
Basic dynamic load rating, radial
C0r
40,000 N
Basic static load rating, radial
≈m
2.61 kg
Weight

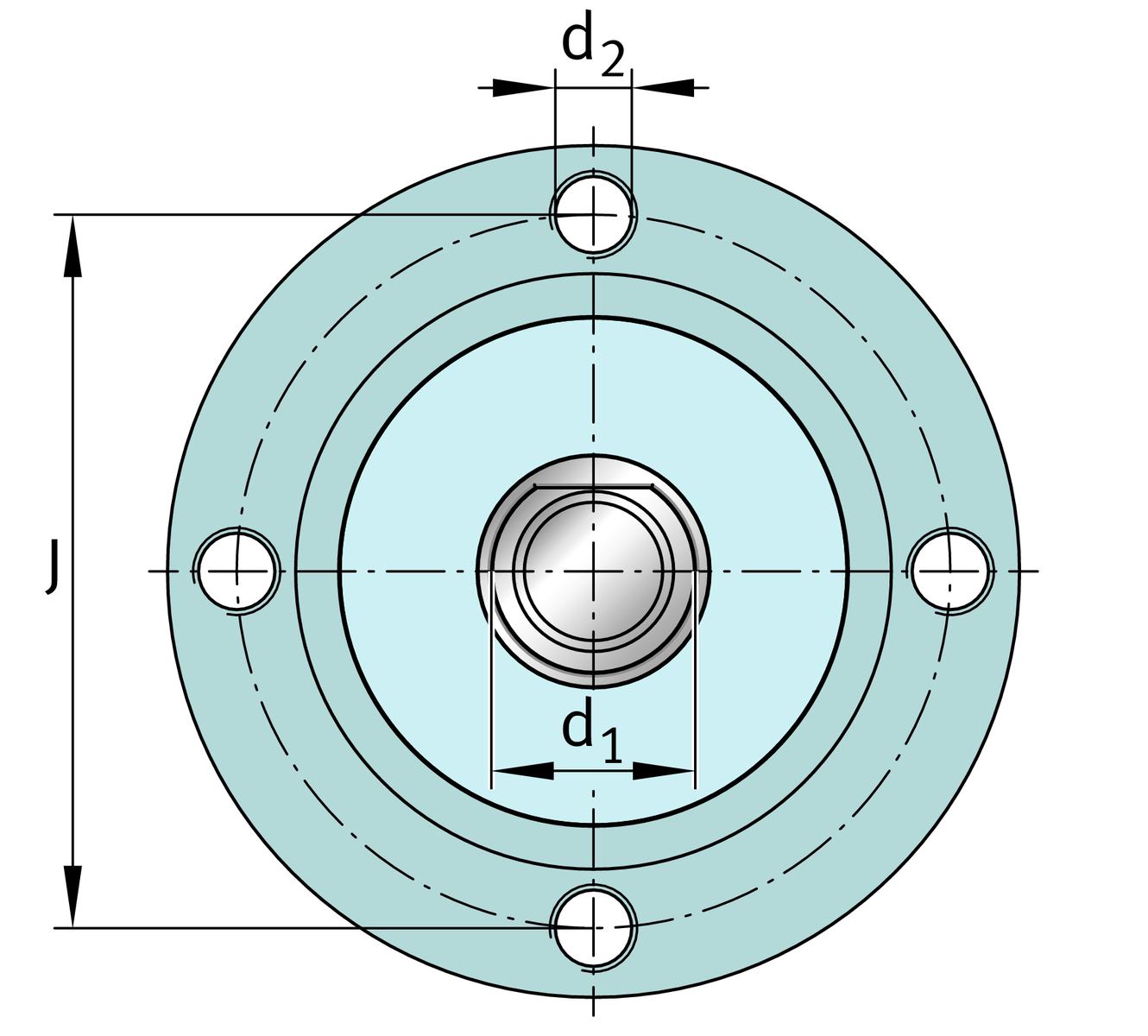

Mounting dimensions
J
98 mm
Pitch circle diameter (holes)
d1
28 mm
Diameter adapter
d2
M12x1,25
Fixing bore metric
d3
25.5 mm
Length locking device
G
M22x1,5
Connection thread
lG
28.5 mm
Length thread
a3
12 mm
Width of adapter
n
4
Number of screwing holes

Dimensions
D2
70 mm
Outer diameter bearing
B1
12 mm
Thickness of flange
B2
61.5 mm
Height housing
