Main Dimensions & Performance Data
| d | 31.75 mm | Bore diameter |
| d | 31.75 mm | Bore diameter, inch |
| DSP | 72 mm | Outside diameter |
| B1 | 39 mm | Locking collar total width |
| B | 25.4 mm | Width |
| Cur | 800 N | Fatigue load limit, radial |
| Cr | 25,500 N | Basic dynamic load rating, radial |
| C0r | 15,300 N | Basic static load rating, radial |
| ≈m | 0.508 kg | Weight |

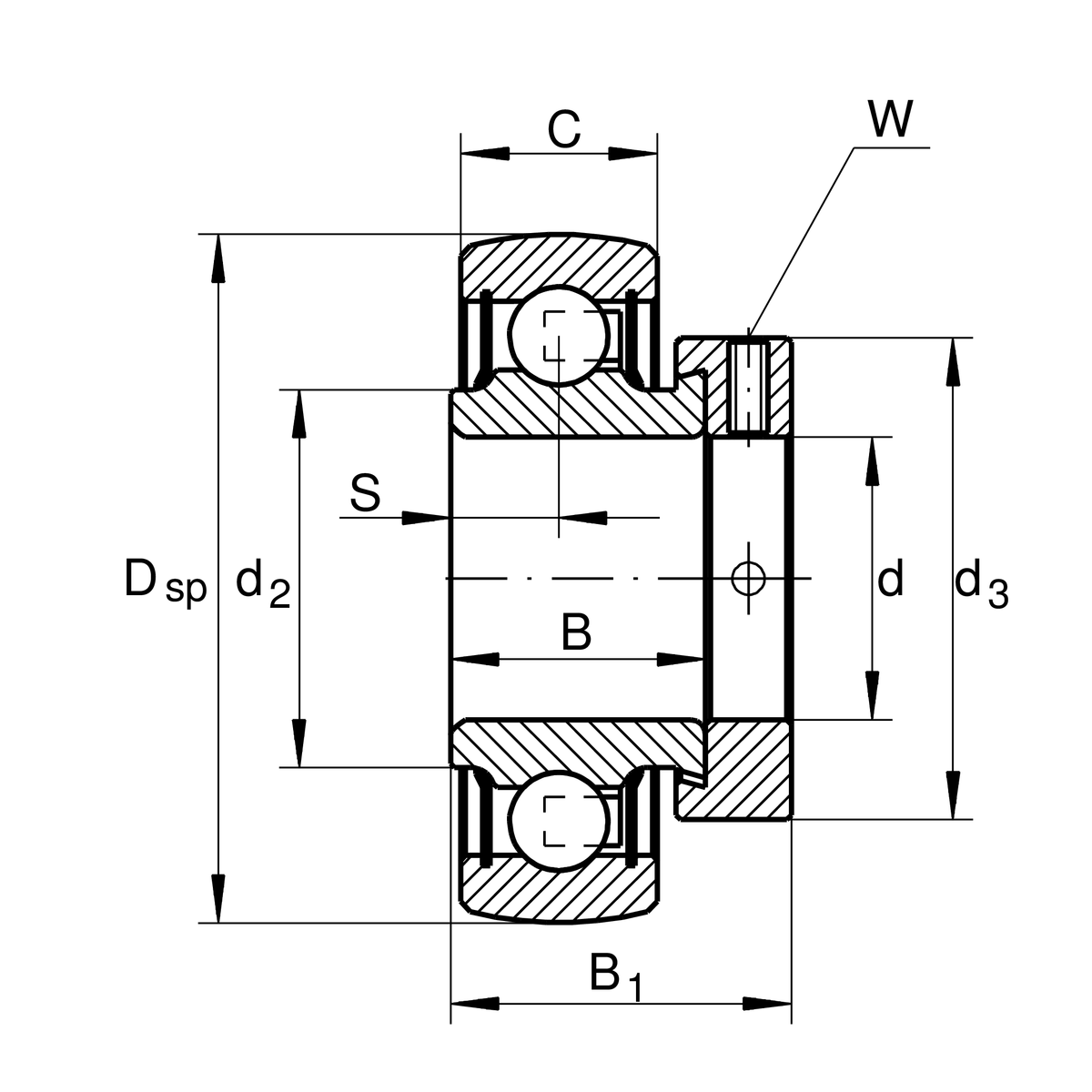

Dimensions
| C | 19 mm | Width, outer ring |
| S | 9.5 mm | Distance raceway |
| d2 | 44.6 mm | Rib diameter sealing inner ring |
| d3 | 51 mm | Outside diameter locking collar/locknut |
| W | 4.762 mm | Width across flats (Inch) |
Calculation factors
| f0 | 13.8 | Calculation factor |
Your current product variant
| Sealing | NPP | Lip seal on both sides |
| Shape of outer surface | B |
