Main Dimensions & Performance Data
| d | 31.75 mm | Bore diameter |
| d | 31.75 mm | Bore diameter, inch |
| DSP | 62 mm | Outside diameter |
| B1 | 35.8 mm | Locking collar total width |
| B | 23.8 mm | Width |
| Cur | 520 N | Fatigue load limit, radial |
| Cr | 19,500 N | Basic dynamic load rating, radial |
| C0r | 11,300 N | Basic static load rating, radial |
| ≈m | 281.9 g | Weight |

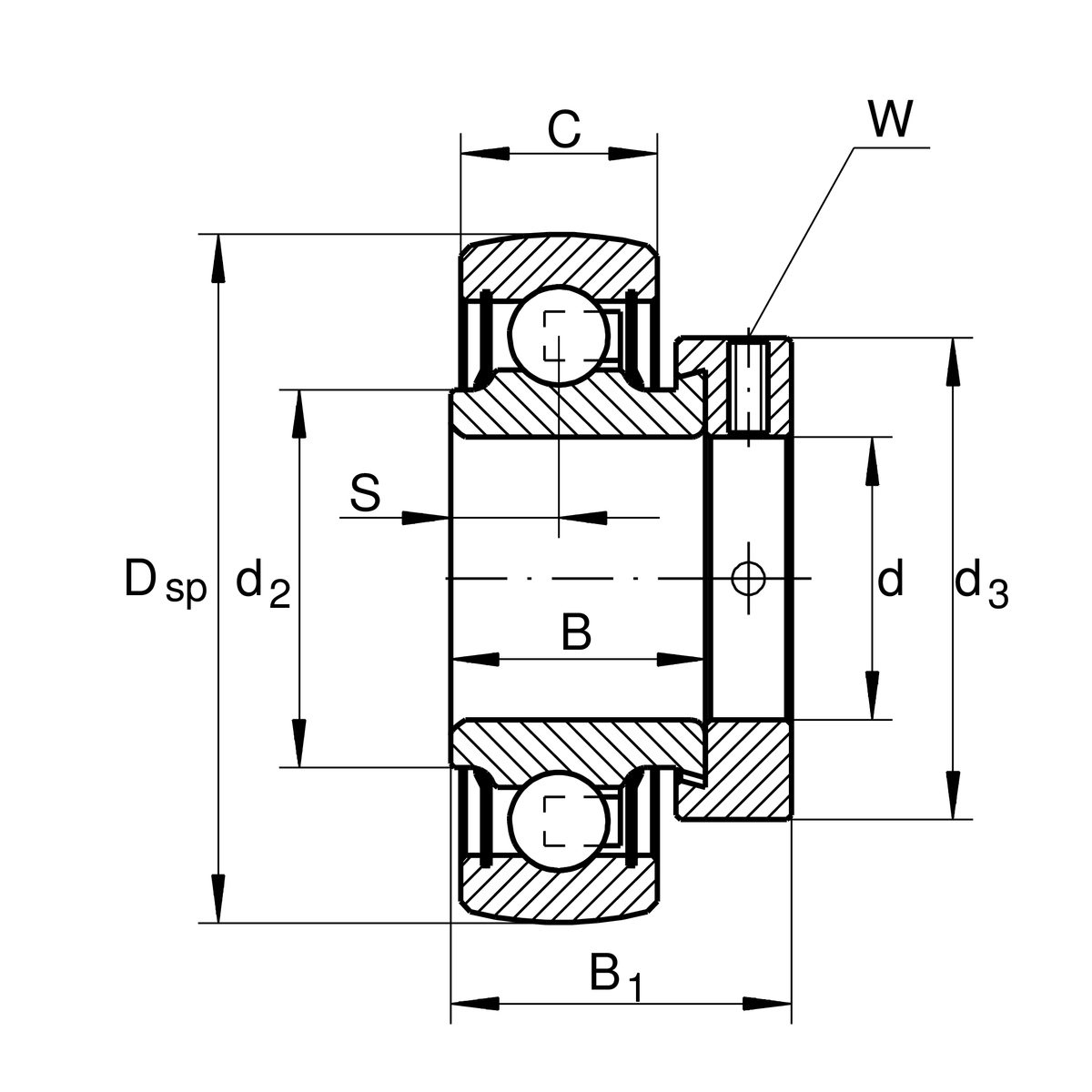

Dimensions
| C | 18 mm | Width, outer ring |
| S | 9 mm | Distance raceway |
| d2 | 37.4 mm | Rib diameter sealing inner ring |
| d3 | 44 mm | Outside diameter locking collar/locknut |
| W | 3.969 mm | Width across flats (Inch) |
Calculation factors
| f0 | 13.8 | Calculation factor |
Your current product variant
| Sealing | NPP | Lip seal on both sides |
| Shape of outer surface | B |
