FAG INA Schaeffler
INA
E35-XL-KRR-B-L402/70-OSE
Radial insert ball bearing E35-XL-KRR-B-L402/70-OSE
Thêm vào yêu cầu báo giá

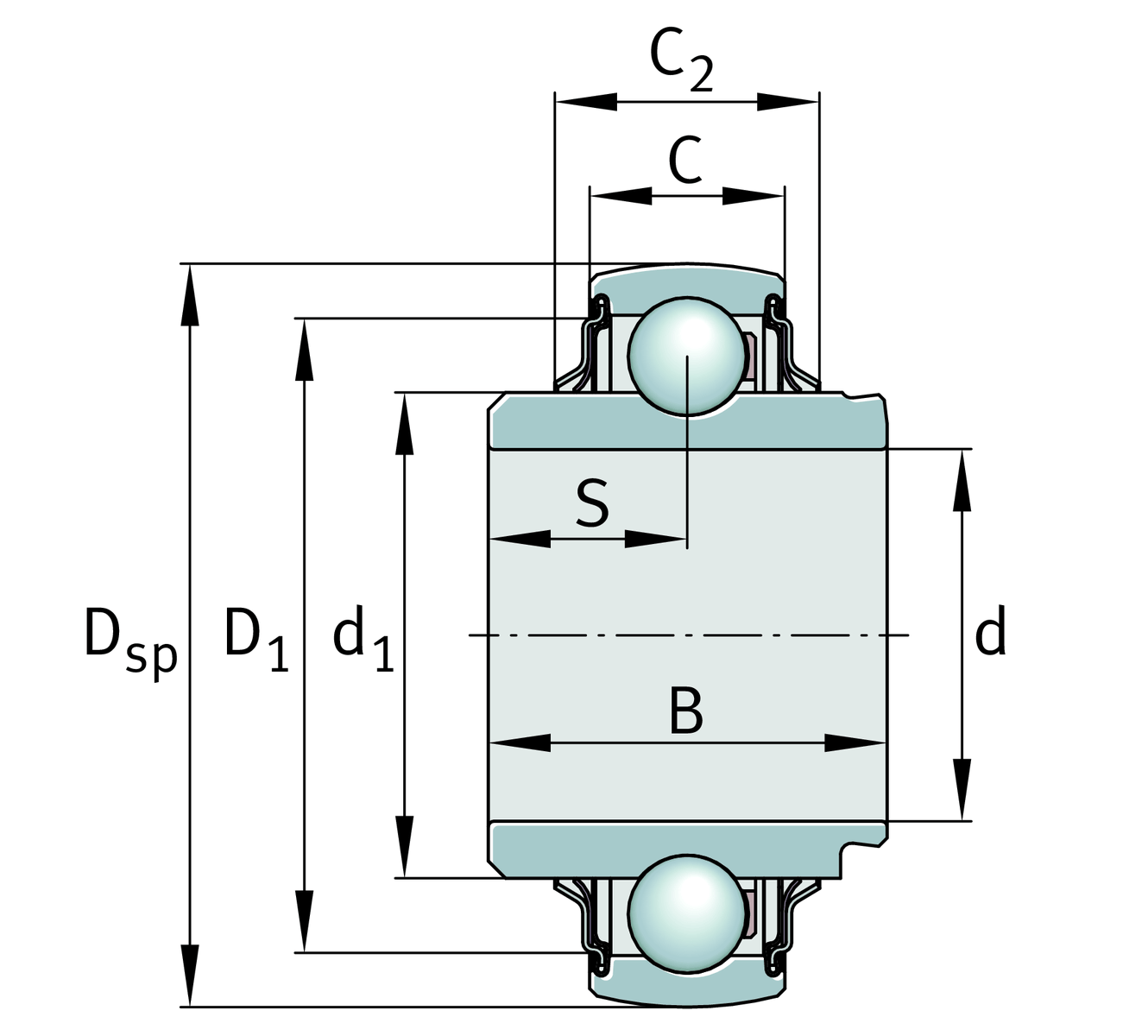

Main Dimensions & Performance Data
d
35 mm
Bore diameter
DSP
72 mm
Outside diameter
B
37.7 mm
Width
Cur
800 N
Fatigue load limit, radial
Cr
25,500 N
Basic dynamic load rating, radial
C0r
15,300 N
Basic static load rating, radial
≈m
0.4 kg
Weight

Dimensions
C
19 mm
Width, outer ring
C2
22.5 mm
Sealing total width
d1
46.84 mm
Rib diameter inner ring
D1
60.1 mm
Outside diameter seal

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Calculation factors
f0
13.8
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
LubricantL402/70L402/70
Without locking deviceOSEBearing without locking element
