FAG
UKFL207
Flanged housing unit UKFL207
Thêm vào yêu cầu báo giá

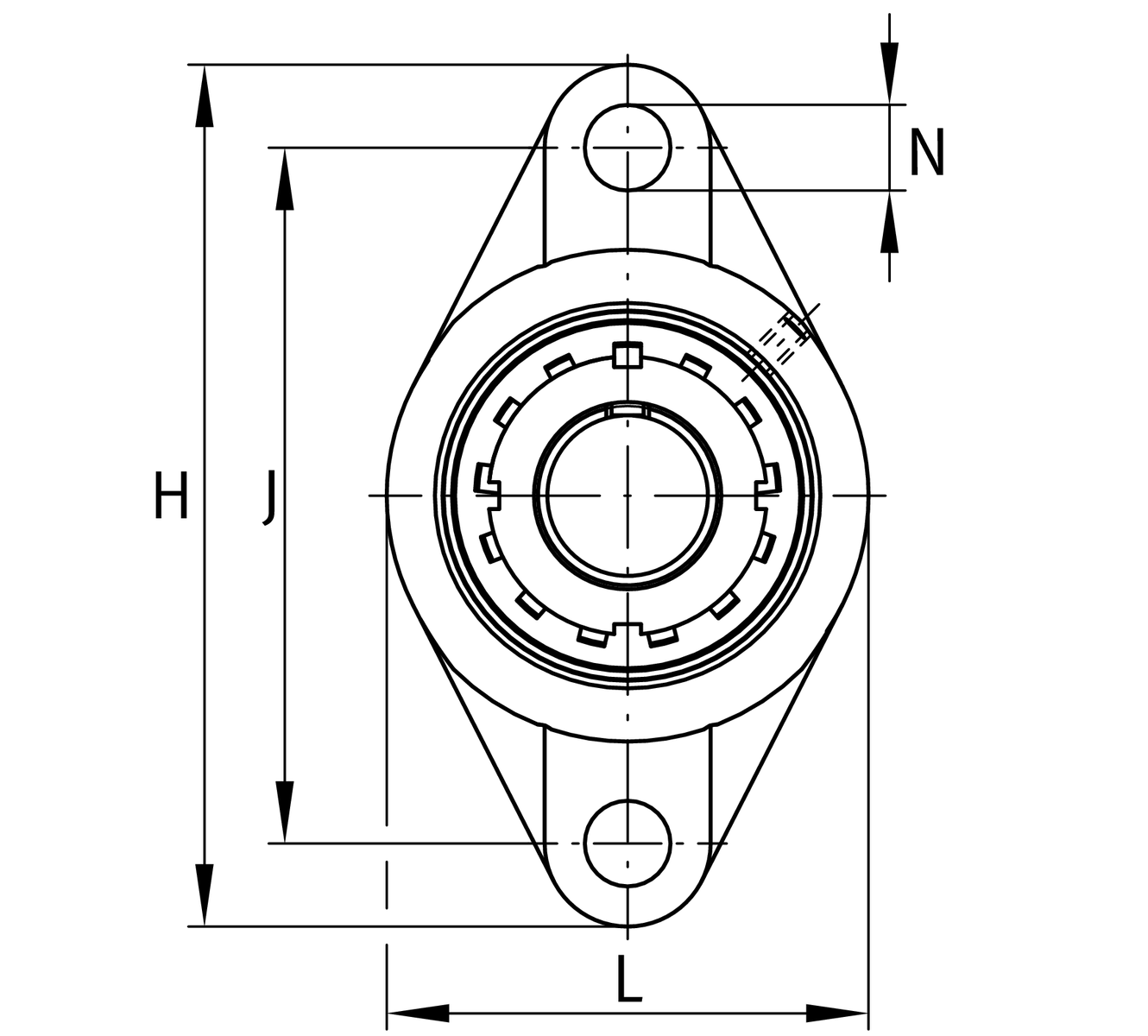

Main Dimensions & Performance Data
d
30 mm
Bore diameter
L
90 mm
Flange width
H
161 mm
Height flange
Cr
27,500 N
Basic dynamic load rating, radial
C0r
15,300 N
Basic static load rating, radial
Cur
800 N
Fatigue load limit, radial
≈m
1.28 kg
Weight

Mounting dimensions
J
130 mm
Distance fixing bore
N
16 mm
Fixing bore
n
2
Number of screwing holes

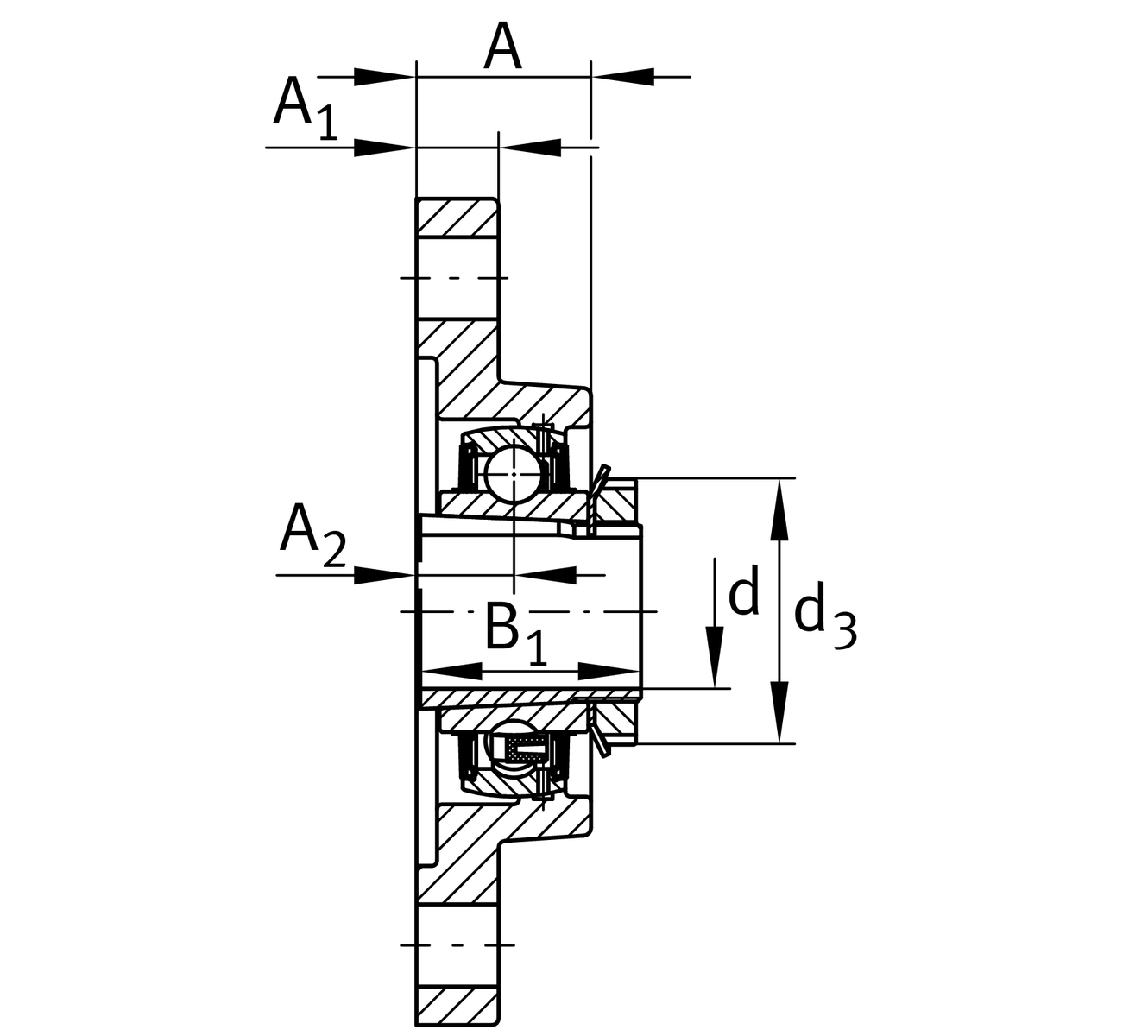

Dimensions
A
34 mm
Height housing
A1
16 mm
Thickness of flange
A2
19 mm
Distance raceway
B
29 mm
Width
B1
43 mm
Locking collar total width
d3
52 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
FL207
Housing
UK207
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
