Main Dimensions & Performance Data
| d | 14 in | Shaft diameter |
| ≈m | 799.999 lbs | Weight |

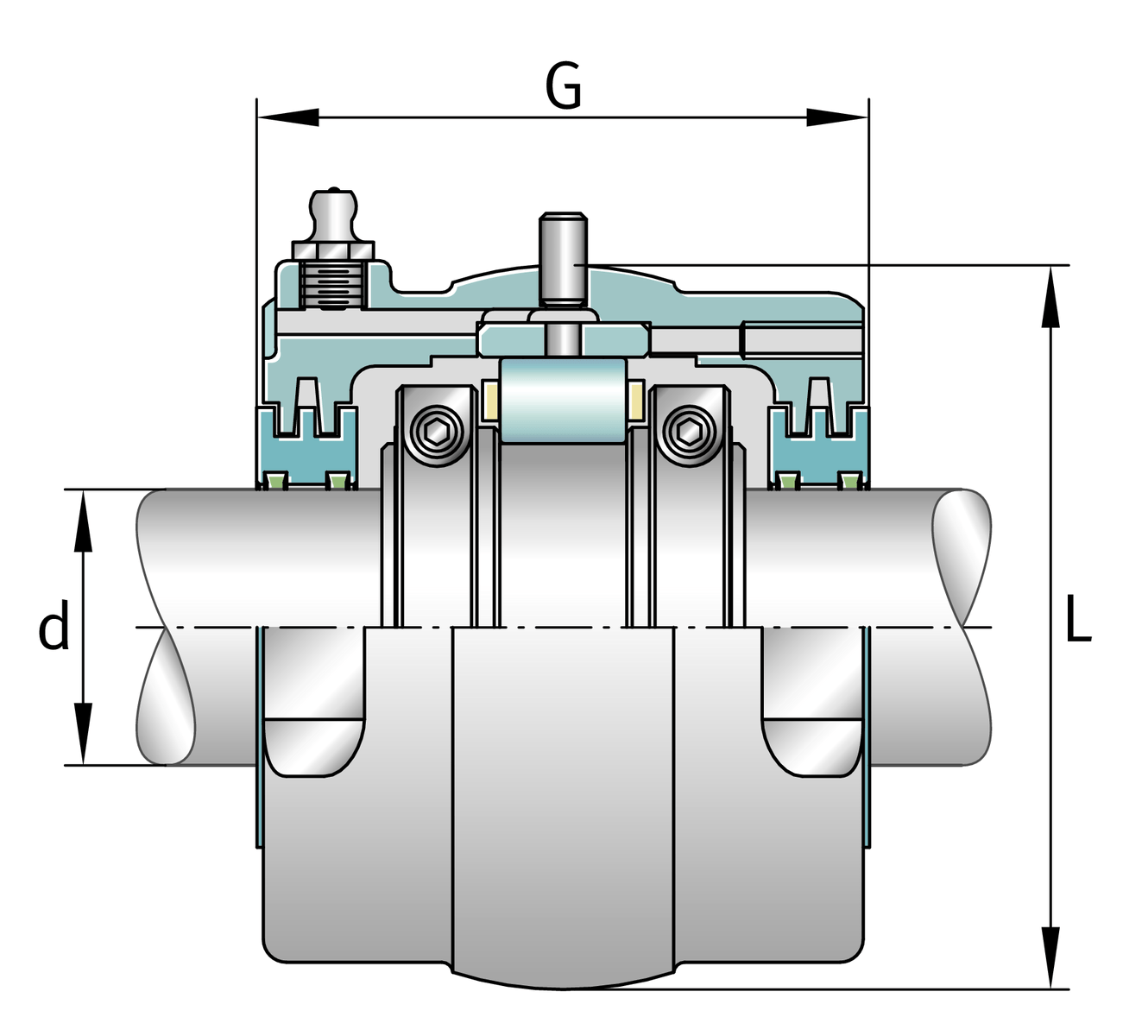

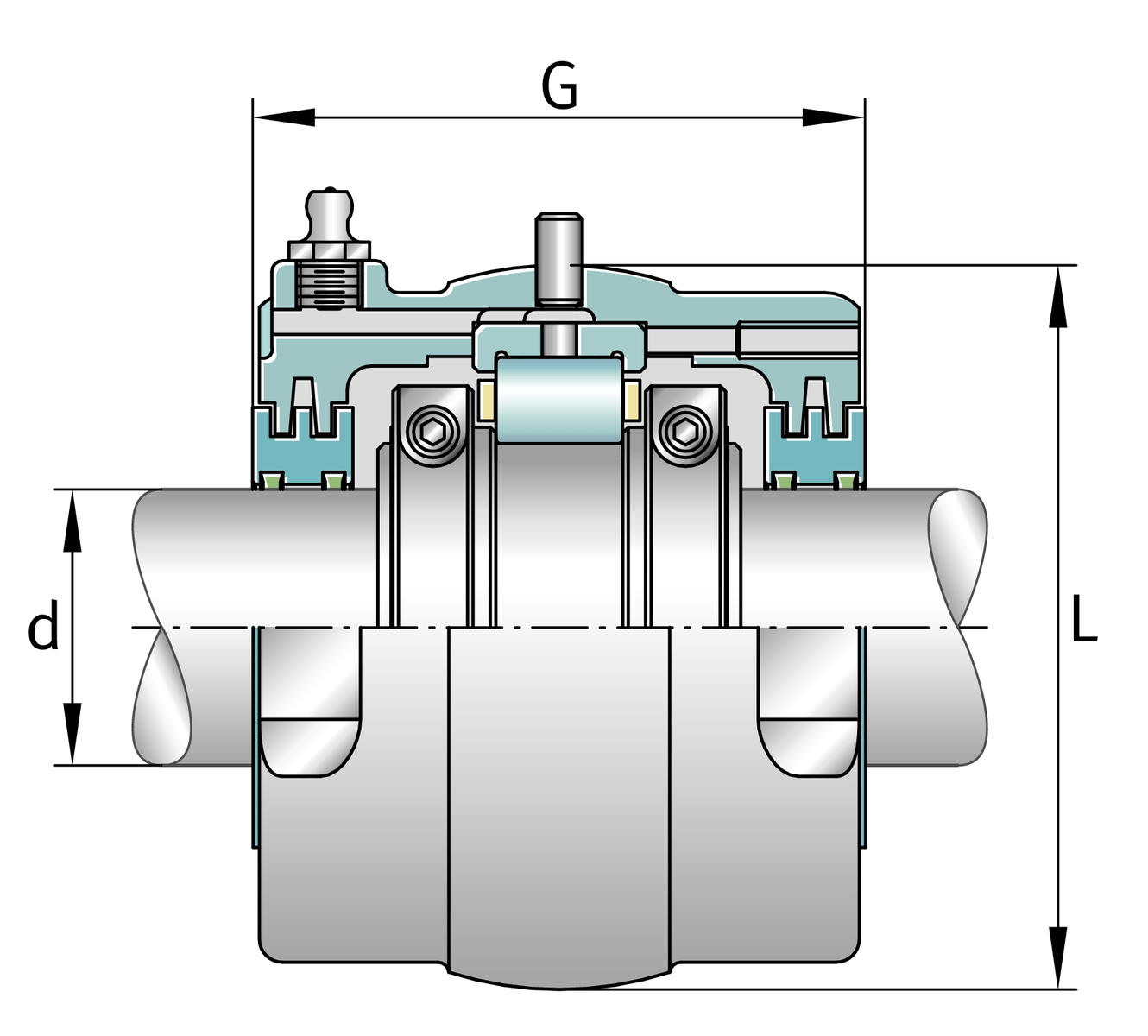

Dimensions
S2BC-1400-FL | Cartridge float bearing | |
S2BC-1400-HD | Cartridge held bearing | |
S2C-1400 | Cartridge | |
| L | 24.75 in | Outside diameter cartridge |
| G | 13.5 in | Lenght through bore |
S2B-1400-FL | Bearing float | |
S2B-1400-HD | Bearing held | |
404.9 lbs | Bearing weight | |
| Cr | 359,847 lbf | Basic dynamic load rating, radial |
| Ca | 16,057 lbf | Basic dynamic load rating, axial |
| C0r | 683,122 lbf | Basic static load rating, radial |
737 1/min | Limiting speed | |
| D0 | 22.25 in | Outside diameter bearing |
| C0 | 7.784 in | Width inner ring |
| B0 | 4.563 in | Width outer ring |
15.9 lbs | Grease capacity |
