TCJL30-N-L285-C3
Flanged housing unit TCJL30-N-L285-C3
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
30 mm
Bore diameter
L
108 mm
Flange width
U
42 mm
Total height unit
Cr
20,700 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
Cur
570 N
Fatigue load limit, radial
≈m
1.07 kg
Weight

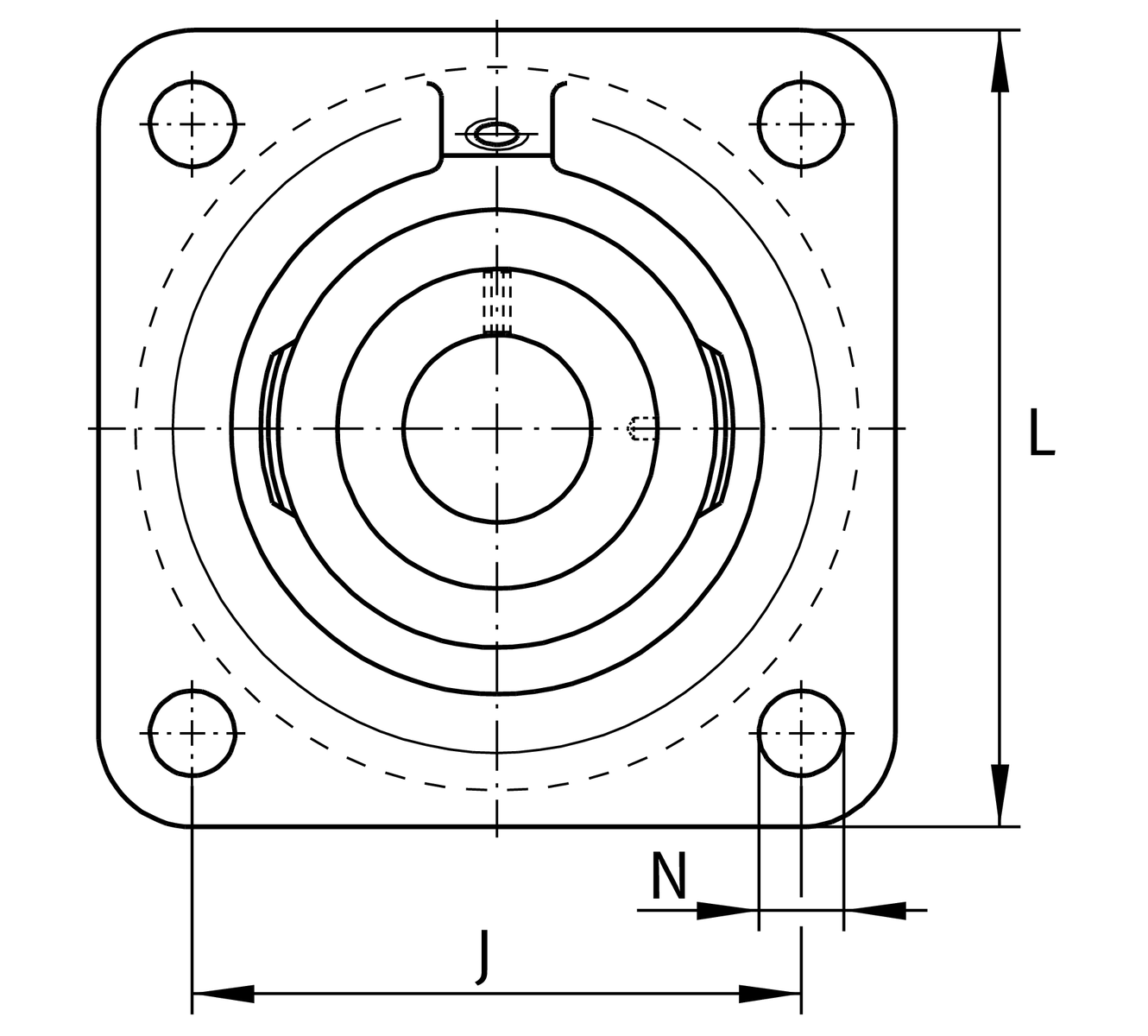

Mounting dimensions
J
82.5 mm
Distance fixing bore
N
11.5 mm
Fixing bore
n
4
Number of screwing holes

Dimensions
A
31 mm
Height housing
A1
12 mm
Thickness of flange
A2
20 mm
Distance raceway
B
36.5 mm
Width
V
85 mm
Shoulder diameter housing
Q
M6
Connection thread for lubrication

Additional information
GEHCJ06-GG-N
Housing
GLE30-XL-KTT-B-L285
Bearing designation

Temperature range
Tmin
-40 °C
Operating temperature min.
Tmax
180 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
LubricantL285Grease (L285)
