RALE30-XL-NPP-FA106
Radial insert ball bearing RALE30-XL-NPP-FA106
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
55 mm
Outside diameter
B
18.5 mm
Width
B1
26.5 mm
Locking collar total width
Cr
13,200 N
Basic dynamic load rating, radial
C0r
8,300 N
Basic static load rating, radial
Cur
430 N
Fatigue load limit, radial
≈m
0.18 kg
Weight

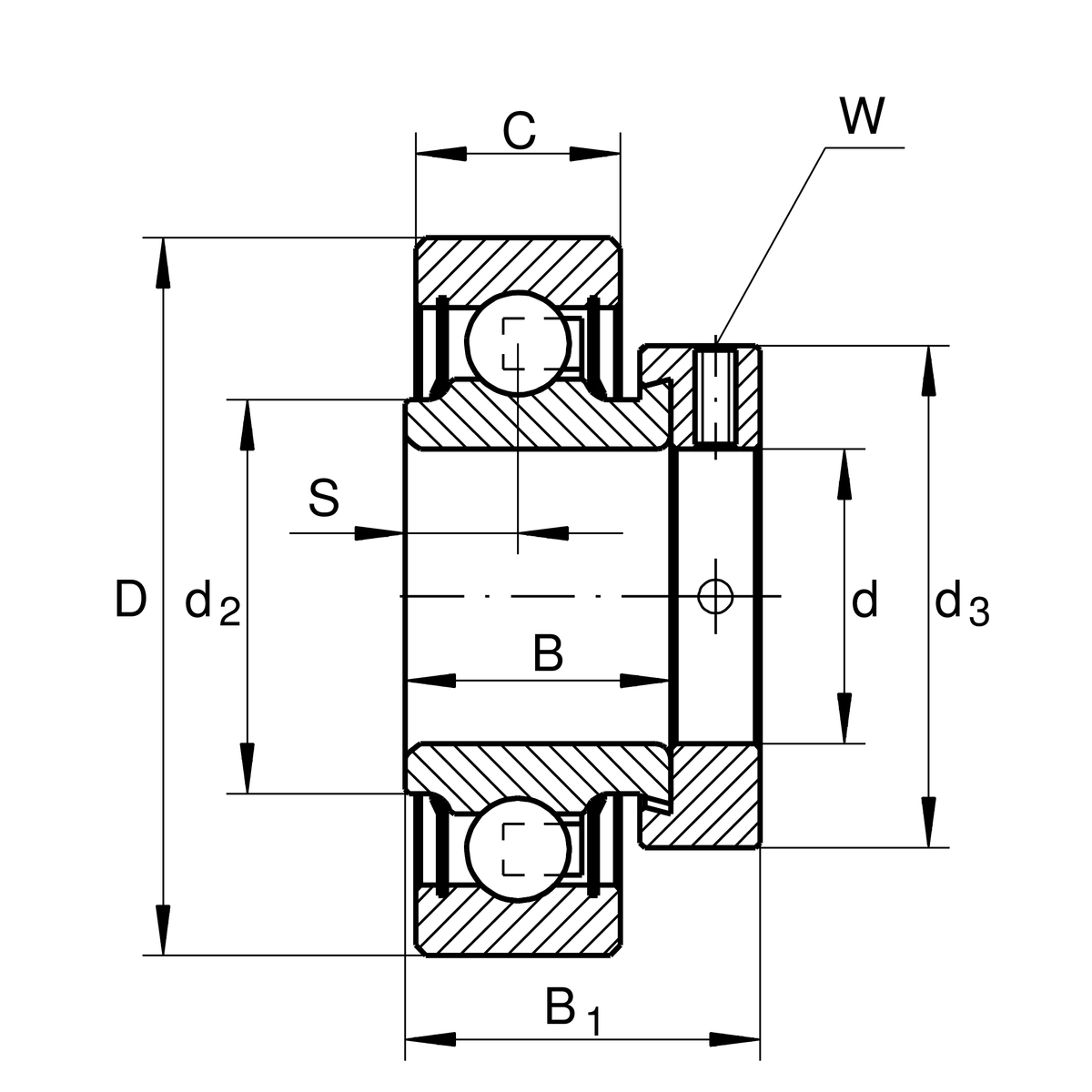

Dimensions
C
13 mm
Width, outer ring
S
6.5 mm
Distance raceway
d2
35.7 mm
Rib diameter sealing inner ring
d3
42.5 mm
Outside diameter locking collar/locknut
W
2.5 mm
Width of flats

Calculation factors
f0
14.8
Calculation factor

Your current product variant
SealingNPPLip seal on both sides
Manufacturing instructionFA106Bearing subjected to special noise testing
