RAE30-XL-NPP-FA106
Radial insert ball bearing RAE30-XL-NPP-FA106
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
62 mm
Outside diameter
B
23.8 mm
Width
B1
35.8 mm
Locking collar total width
Cr
19,500 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
Cur
480 N
Fatigue load limit, radial
≈m
0.308 kg
Weight

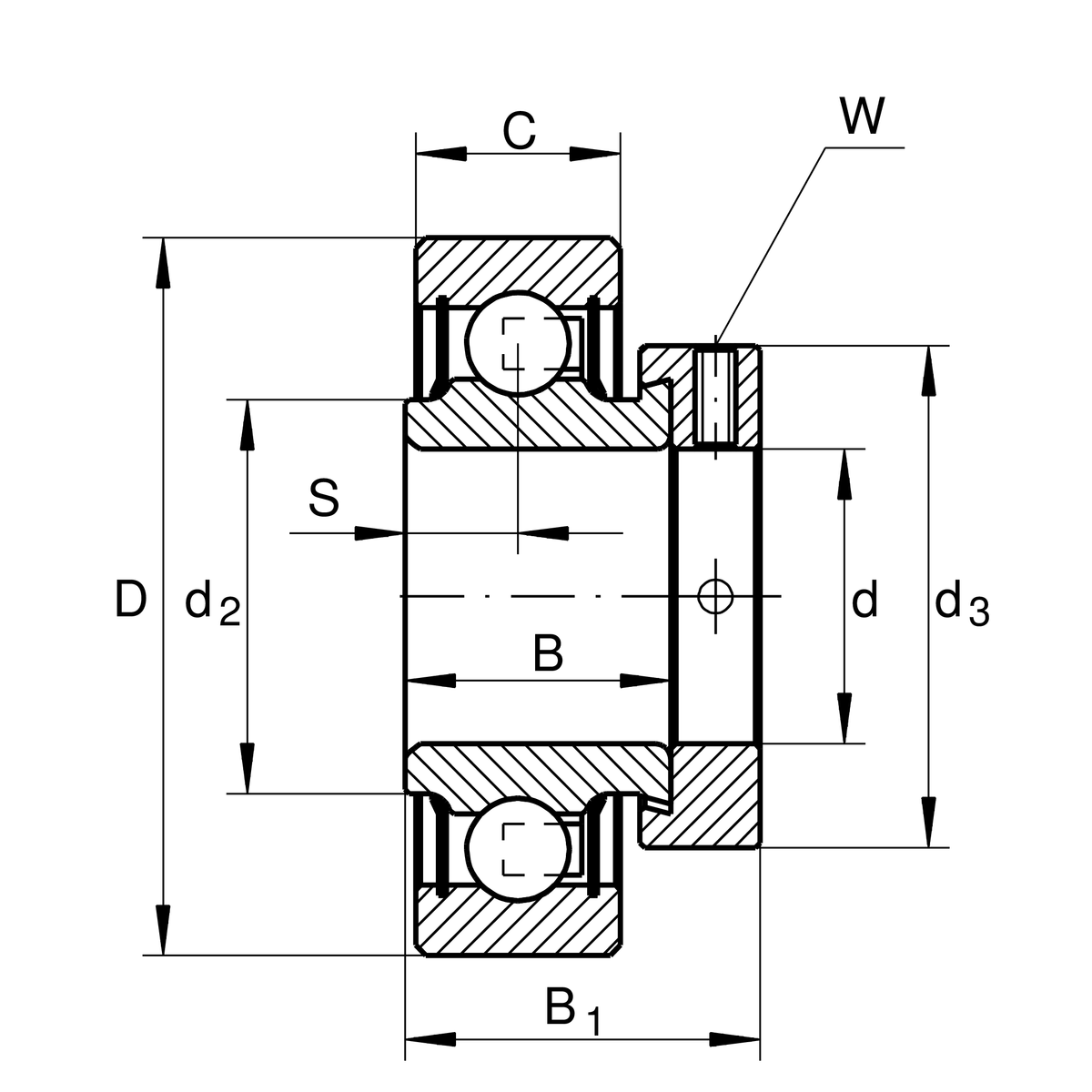

Dimensions
C
18 mm
Width, outer ring
S
9 mm
Distance raceway
d2
37.4 mm
Rib diameter sealing inner ring
d3
44 mm
Outside diameter locking collar/locknut
W
4 mm
Width of flats

Calculation factors
f0
13.8
Calculation factor

Your current product variant
SealingNPPLip seal on both sides
Manufacturing instructionFA106Bearing subjected to special noise testing
