S1SNLH-408-HD-2B
Plummer block housing unit S1SNLH-408-HD-2B
Thêm vào yêu cầu báo giá

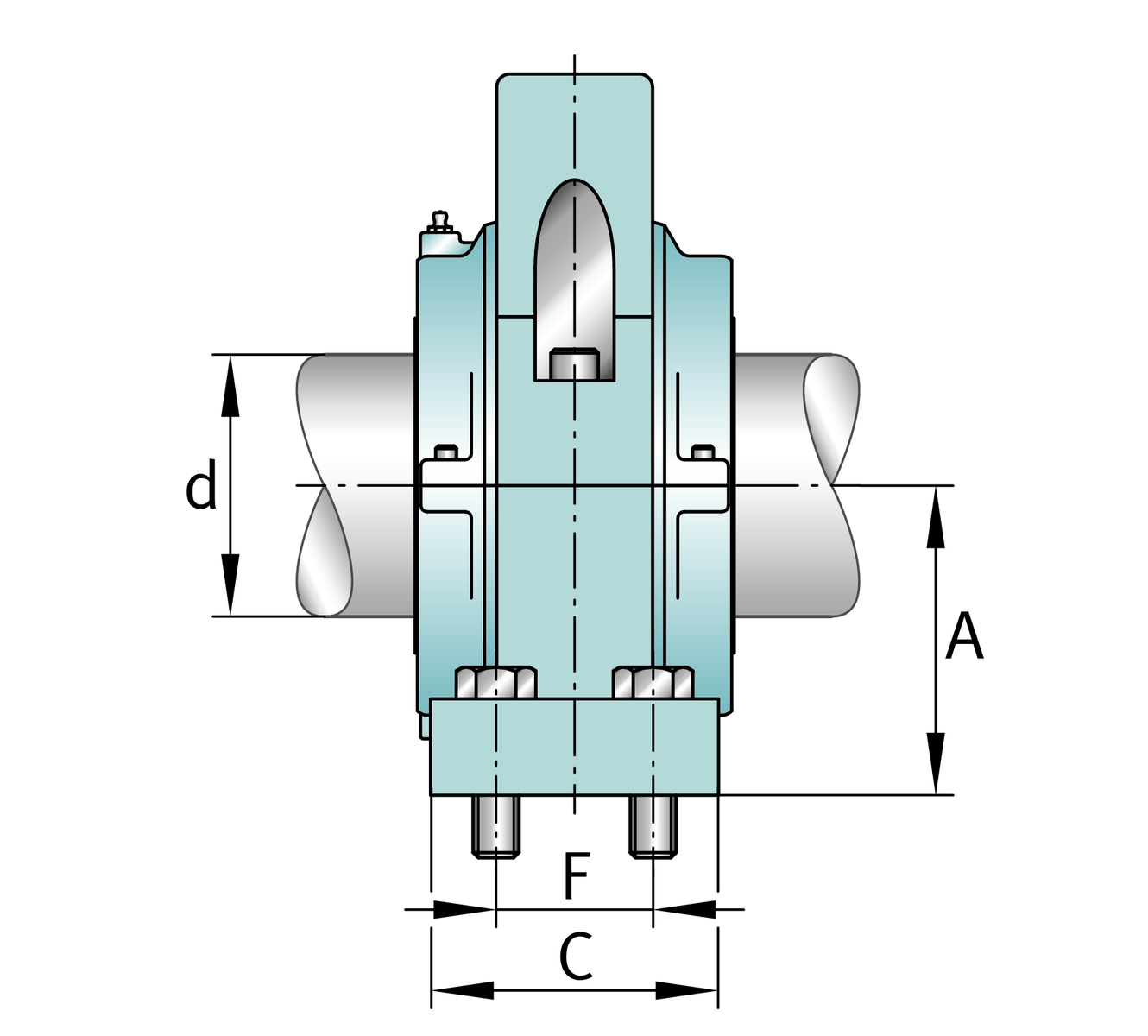

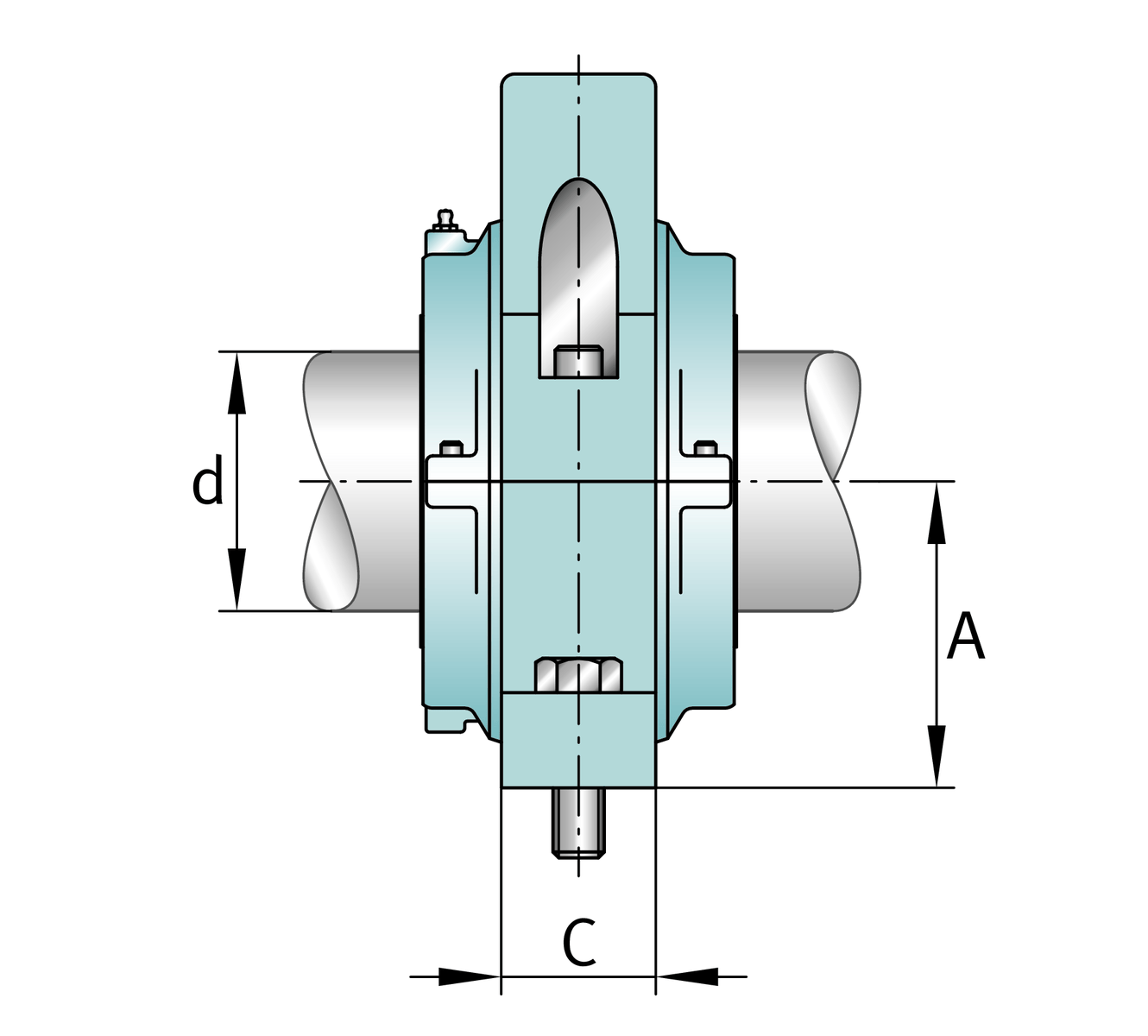

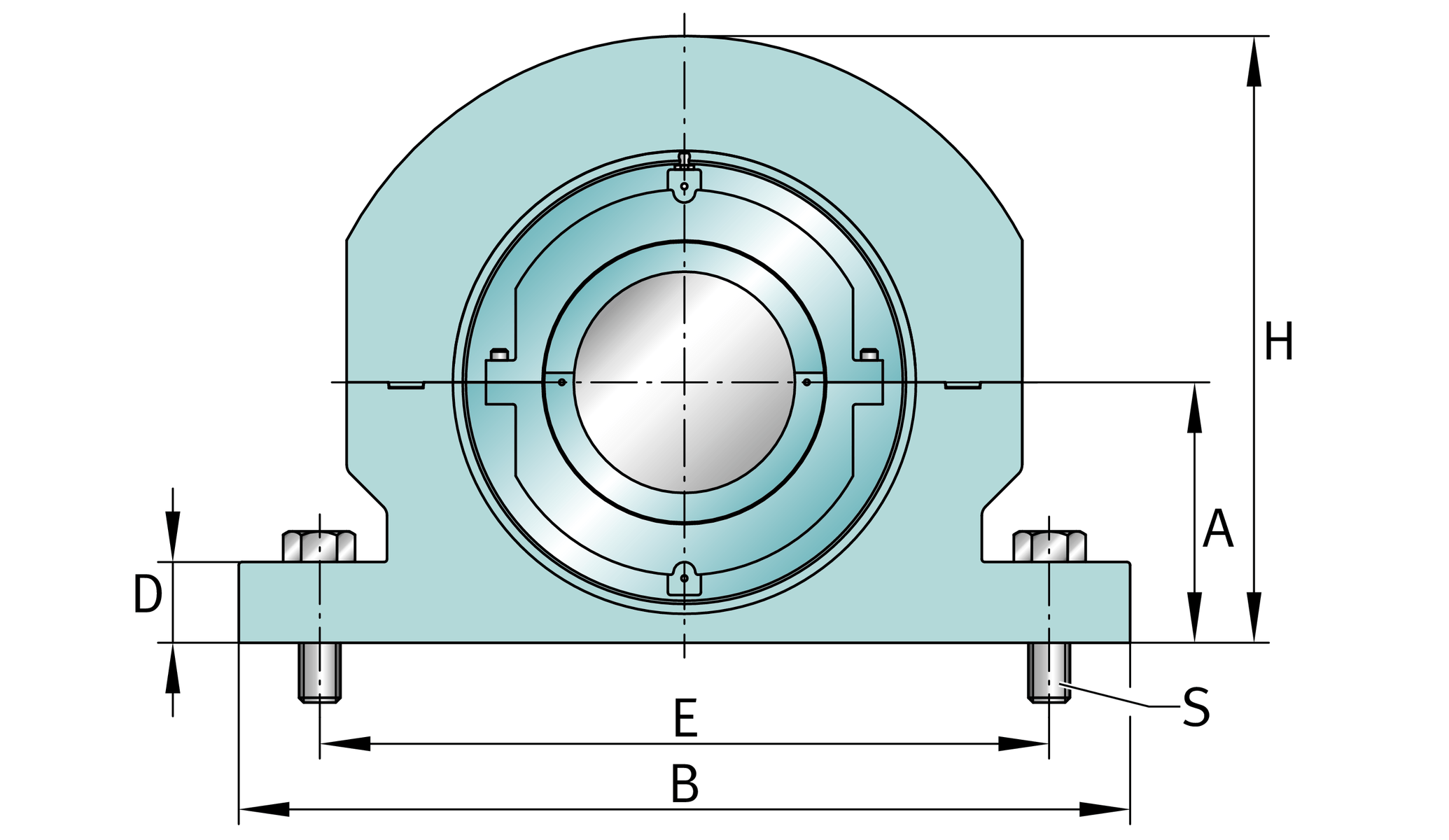

Main Dimensions & Performance Data
d
114.3 mm
Shaft diameter
H
311.15 mm
Housing height
A
139.7 mm
Center height
B
409.575 mm
Length Base
≈m
49.895 kg
Weight

Dimensions
S1SNLH-408-FL-2B
Complete unit float
S1SNLH-408-HD-2B
Complete unit held
SNLH-7-2B
Housing deignation
D
39.688 mm
Base height
C
73.025 mm
Base width
E
352.425 mm
Base hole distance 1
S
2
# of Mounting Bolts
S
25.4 mm
Mounting bolt diameter
