FAG INA Schaeffler
INA
GLCTE30-FA125.8
Flanged housing unit GLCTE30-FA125.8
Thêm vào yêu cầu báo giá

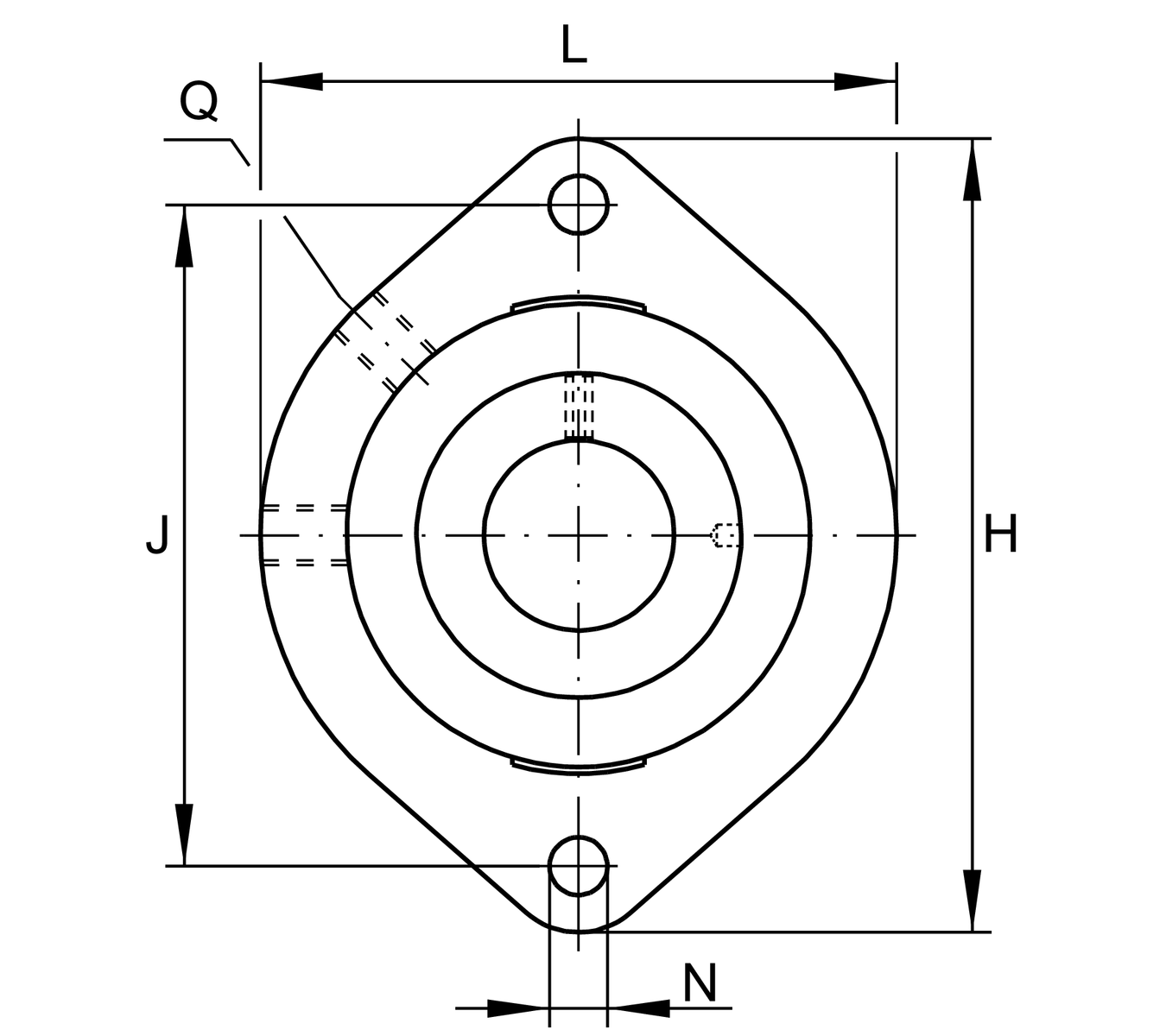

Main Dimensions & Performance Data
d
30 mm
Bore diameter
L
84 mm
Flange width
H
112.5 mm
Height flange
U
38.2 mm
Total height unit
Cr
20,700 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
≈m
0.76 kg
Weight

Mounting dimensions
J
90.5 mm
Distance fixing bore
N
11.5 mm
Fixing bore
W
4 mm
Width across flats
n
2
Number of screwing holes

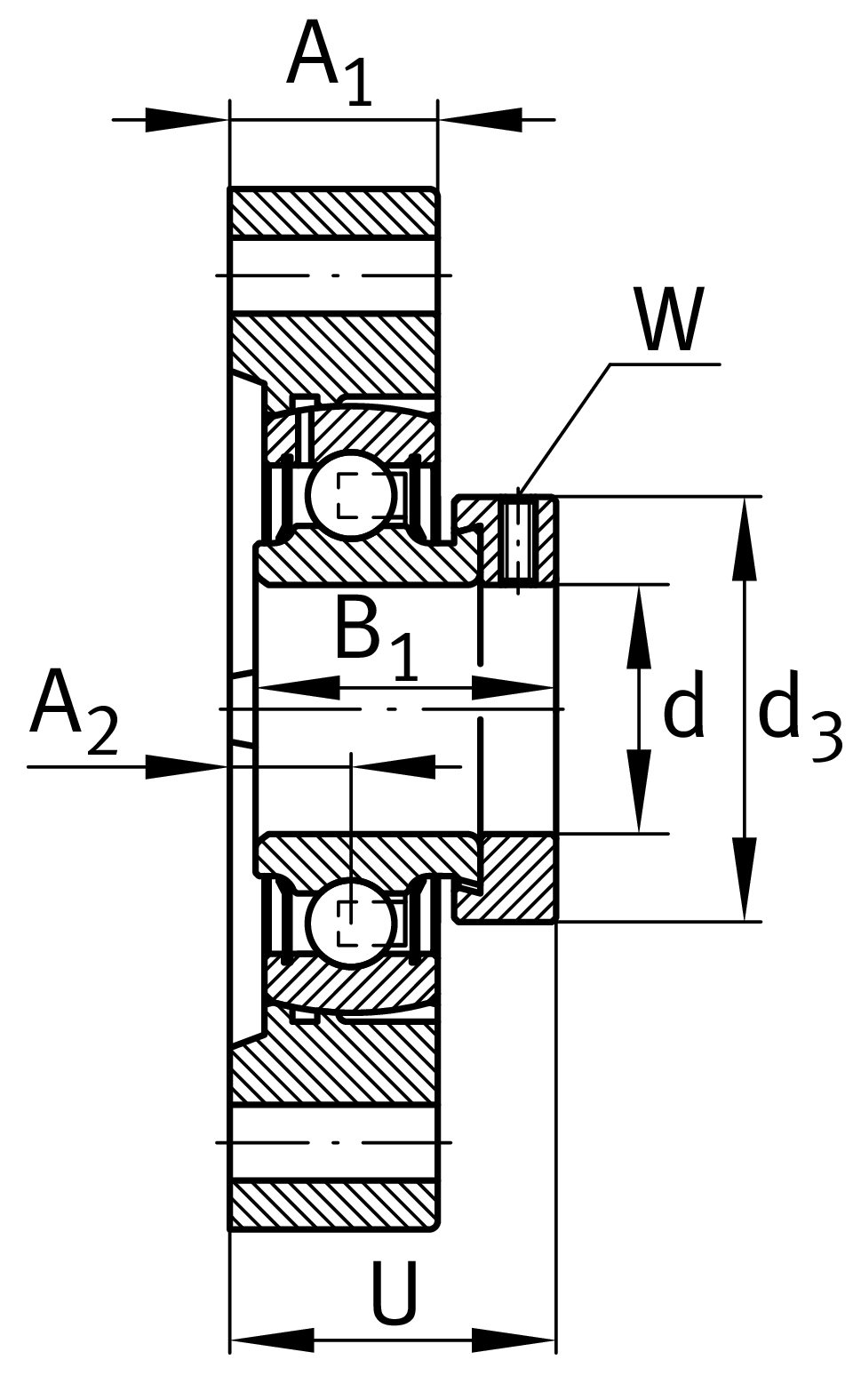

Dimensions
A1
22.5 mm
Thickness of flange
A2
11.4 mm
Distance raceway
B1
35.8 mm
Locking collar total width
Q
M6
Connection thread for lubrication
d3
44 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
GEHGLCTE06-gg-FA125.1
Housing
GRAE30-NPP-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
Manufacturing instructionFA125.8Housing with Corrotect coating
