FAG INA Schaeffler
INA
FLCTE30-XL-SML
Flanged housing unit FLCTE30-XL-SML
Thêm vào yêu cầu báo giá

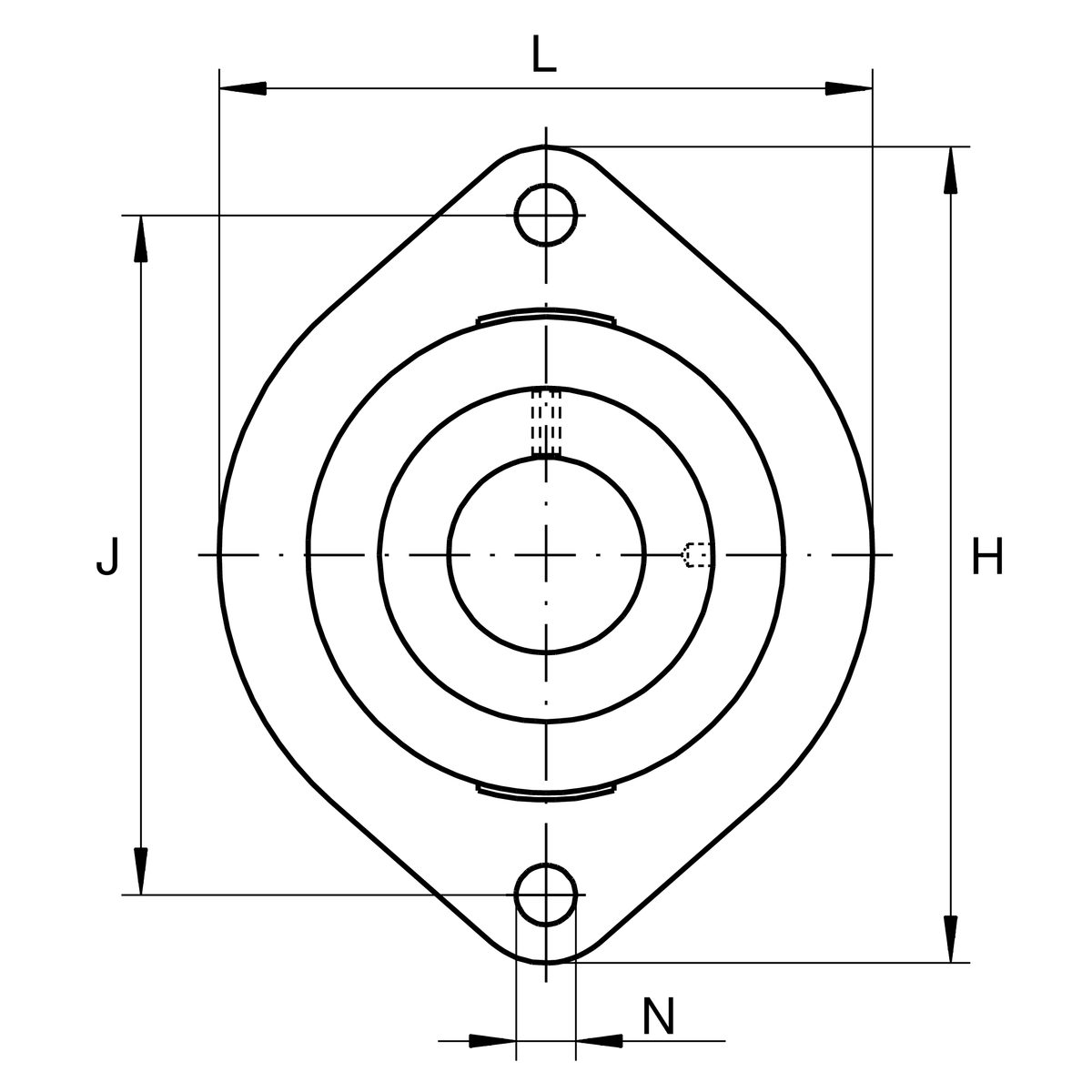

Main Dimensions & Performance Data
d
30 mm
Bore diameter
L
84 mm
Flange width
H
112.5 mm
Height flange
U
38.1 mm
Total height unit
Cr
20,700 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
Cur
480 N
Fatigue load limit, radial
≈m
0.75 kg
Weight

Mounting dimensions
J
90.5 mm
Distance fixing bore
N
11.5 mm
Fixing bore
W
4 mm
Width across flats
n
2
Number of screwing holes

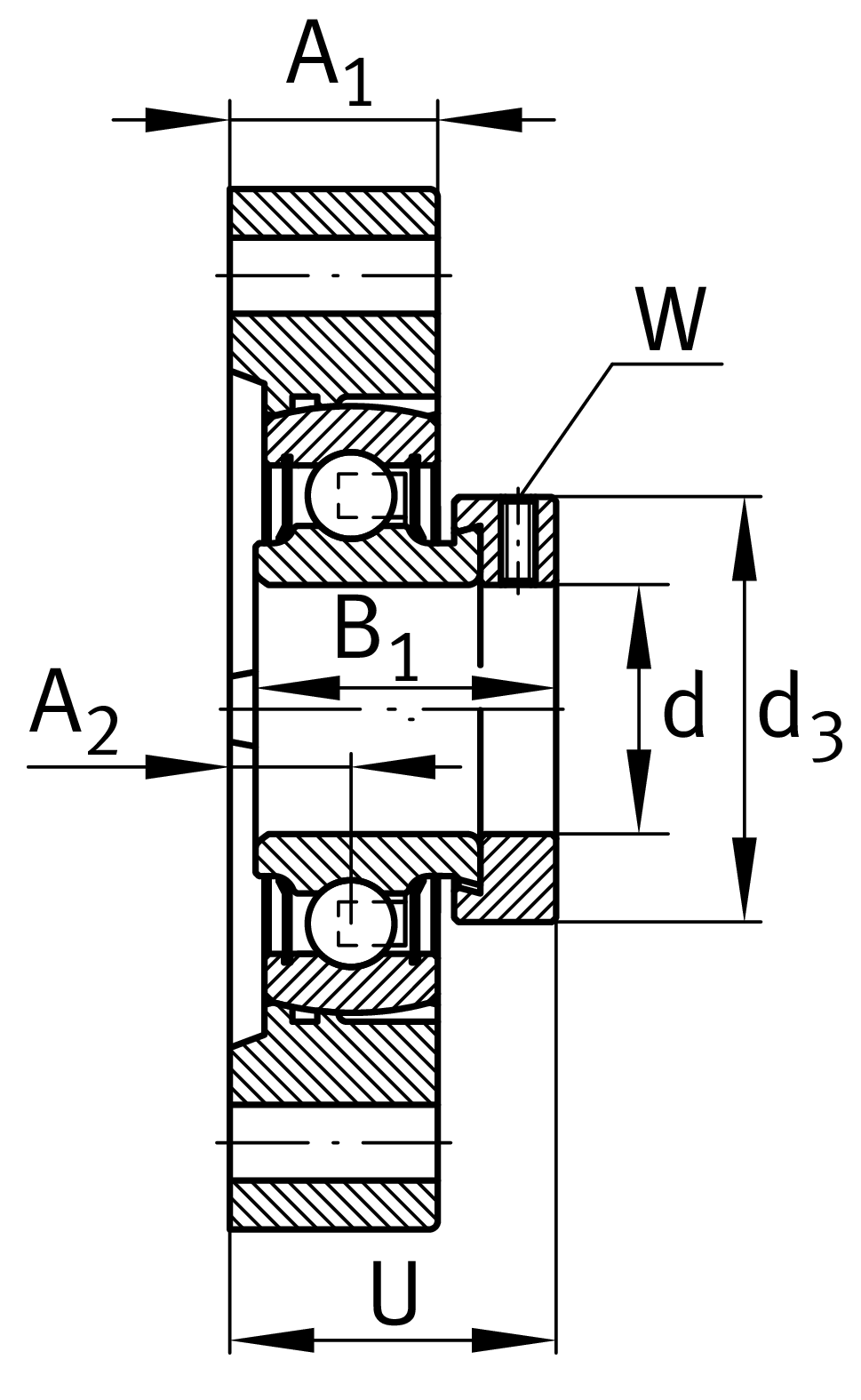

Dimensions
A1
22.5 mm
Thickness of flange
A2
11.4 mm
Distance raceway
B1
35.8 mm
Locking collar total width
d3
44 mm
Outside diameter eccentric locking collar

Additional information
GG.LCTE06-E
Housing
RAE30-XL-NPP-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
Swivel torqueSMLLow swivel torque
