Main Dimensions & Performance Data
| d | 114.3 mm | Bore diameter |
| D | 130.175 mm | Outside diameter |
| B | 7.938 mm | Width |
| Cr | 8,400 N | Basic dynamic load rating, radial |
| C0r | 13,500 N | Basic static load rating, radial |
| nG | 2,800 1/min | Limiting speed |
| ≈m | 150 g | Weight |

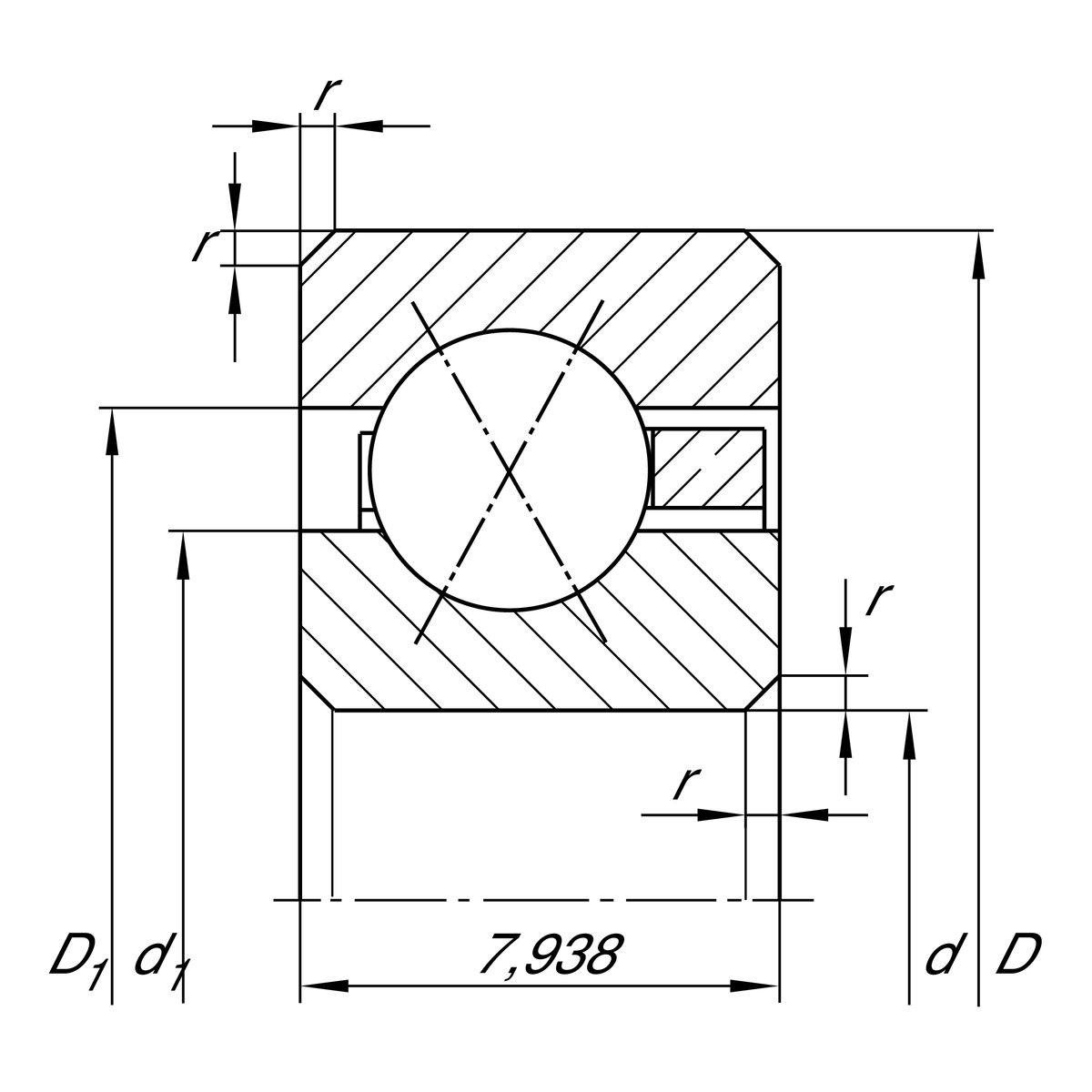

Dimensions
| rmin | 1 mm | Minimum chamfer dimension |
| d1 | 120.2 mm | Shoulder diameter inner ring |
| D1 | 124.3 mm | Shoulder diameter outer ring |
| α | 30 ° | Contact angle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Logistical code | HLE | - |
| Sealing | Without | Not sealed |
| Cage | YH | brass sheet metal |
| Tolerance class | PL1 | Class PL1, Normal |
| Lubricant | Without | Bearing not greased |
| Radial internal clearance | PL1 | Class PL1, Normal |
