Main Dimensions & Performance Data
| d | 114.3 mm | Bore diameter |
| D | 133.35 mm | Outside diameter |
| B | 9.525 mm | Width |
| Cr | 8,400 N | Basic dynamic load rating, radial |
| C0r | 11,400 N | Basic static load rating, radial |
| nG | 4,650 1/min | Limiting speed |
| ≈m | 220 g | Weight |

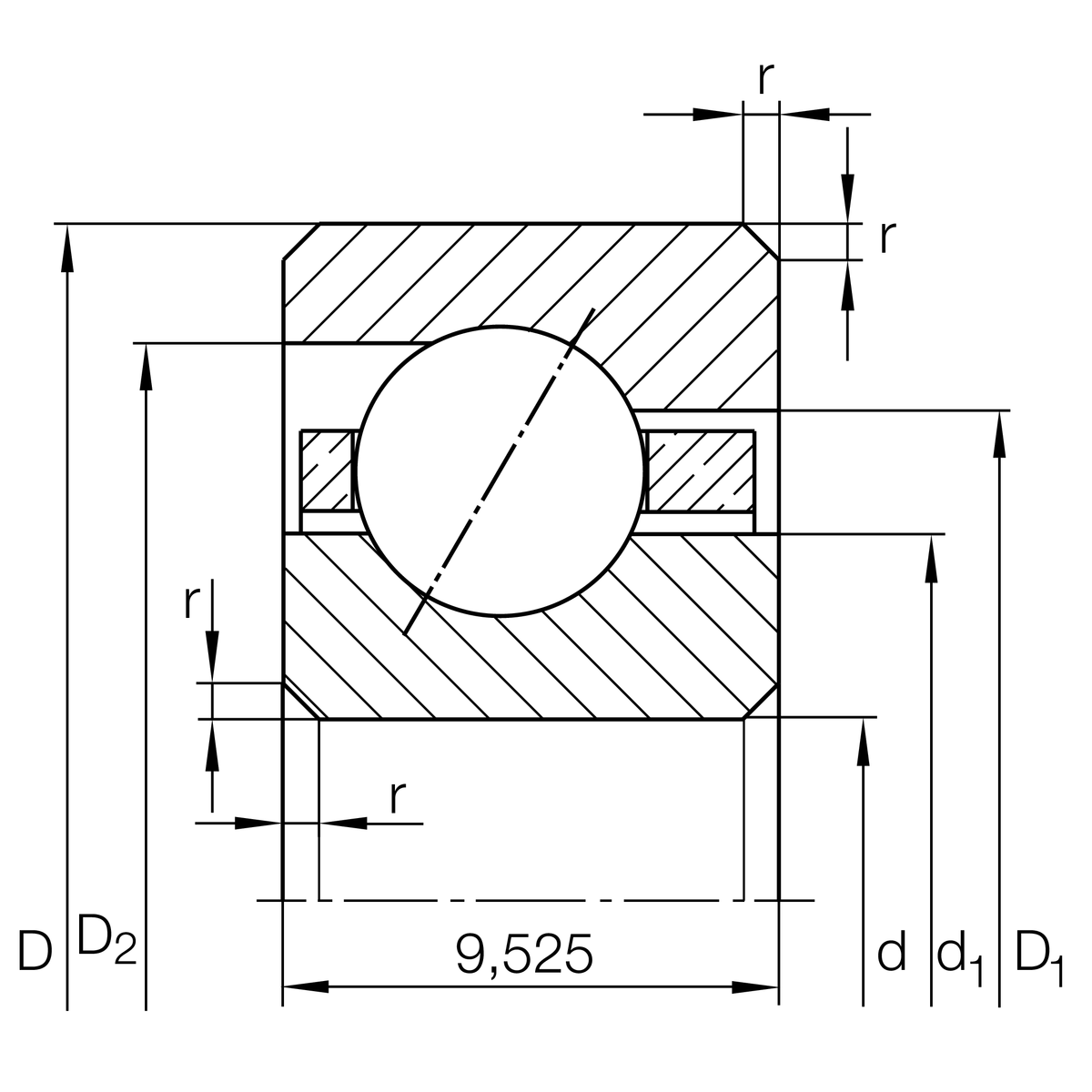

Dimensions
| rmin | 1 mm | Minimum chamfer dimension |
| d1 | 121.3 mm | Shoulder diameter inner ring |
| D1 | 126.3 mm | Shoulder diameter on outer ring wide side face |
| D2 | 128.3 mm | Shoulder diameter on outer ring small side face |
| α | 30 ° | Contact angle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Logistical code | HLE | - |
| Sealing | Without | Not sealed |
| Cage | YP | brass sheet metal |
| Tolerance class | PL1 | Class PL1, Normal |
| Lubricant | Without | Bearing not greased |
