Main Dimensions & Performance Data
| d | 30 mm | Bore diameter |
| D | 72 mm | Outside diameter |
| B | 27 mm | Width |
| Cr | 32,500 N | Basic dynamic load rating, radial |
| C0r | 8,800 N | Basic static load rating, radial |
| Cur | 560 N | Fatigue load limit, radial |
| nG | 15,300 1/min | Limiting speed |
| nϑr | 10,400 1/min | Reference speed |
| ≈m | 0.542 kg | Weight |

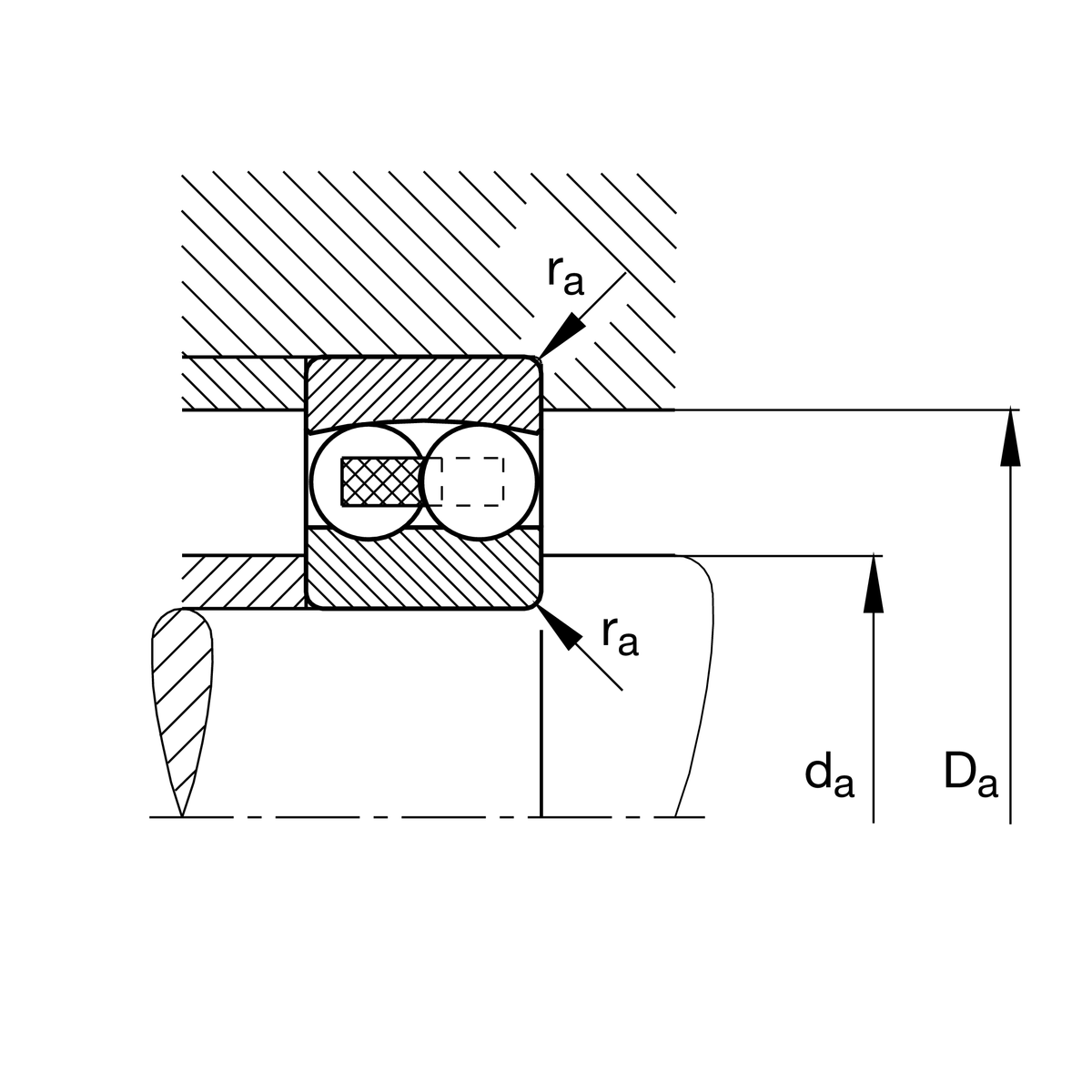

Mounting dimensions
| da min | 37 mm | Minimum diameter shaft shoulder |
| Da max | 65 mm | Maximum diameter of housing shoulder |
| ra max | 1 mm | Maximum fillet radius |

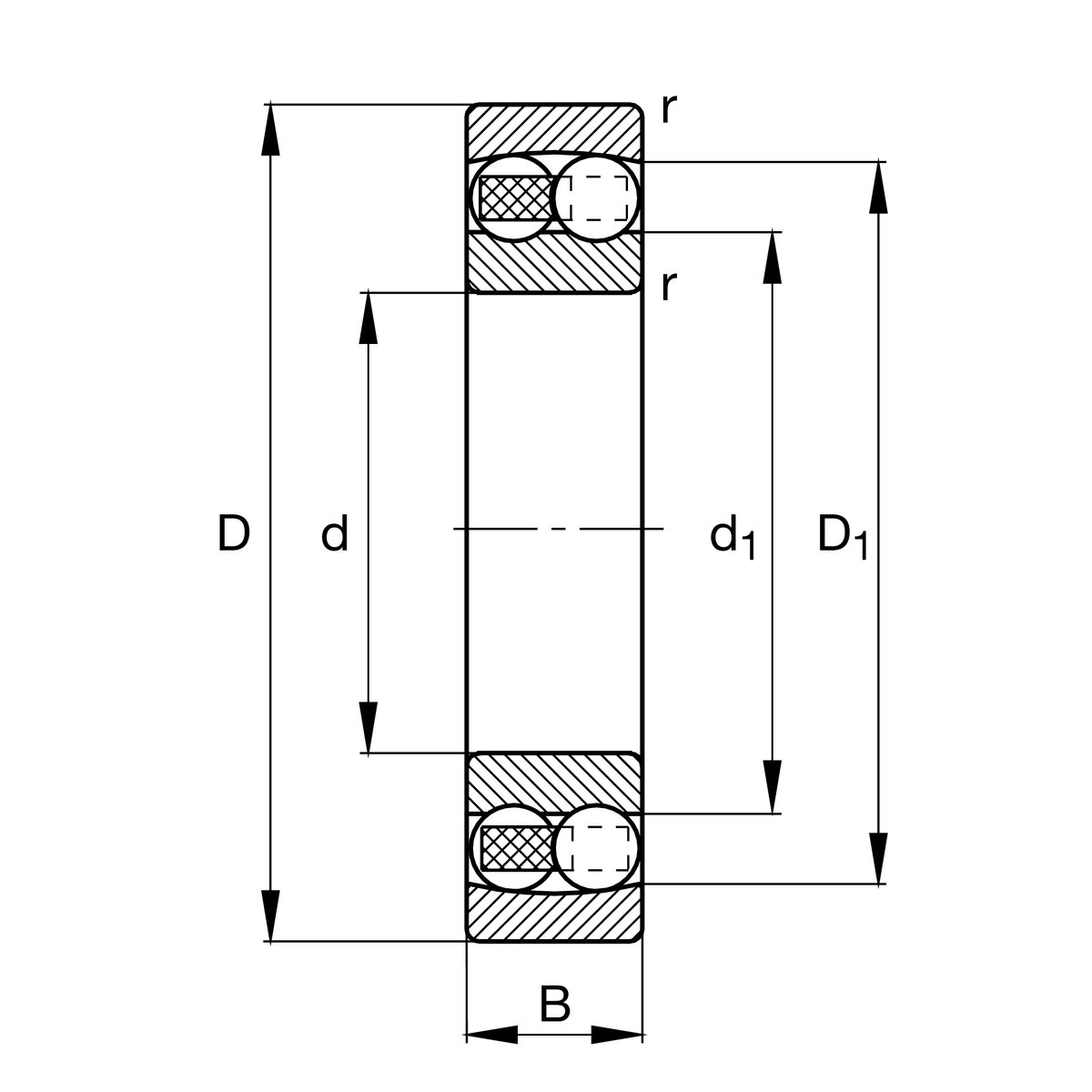

Dimensions
| rmin | 1.1 mm | Minimum chamfer dimension |
| D1 | 58.83 mm | Shoulder diameter outer ring |
| d1 | 41.45 mm | Shoulder diameter inner ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 150 °C | Operating temperature max. |
Calculation factors
| e | 0.45 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 1.4 | Dynamic axial load factor |
| Y2 | 2.17 | Dynamic axial load factor |
| Y0 | 1.47 | Static axial load factor |
Your current product variant
| Bore type | Z | Cylindrical |
| Sealing | Without | Not sealed |
| Cage | M | solid brass cage, ball guided |
| Tolerance class | PN | Normal (PN) |
| Lubricant | Without | Bearing not greased |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
