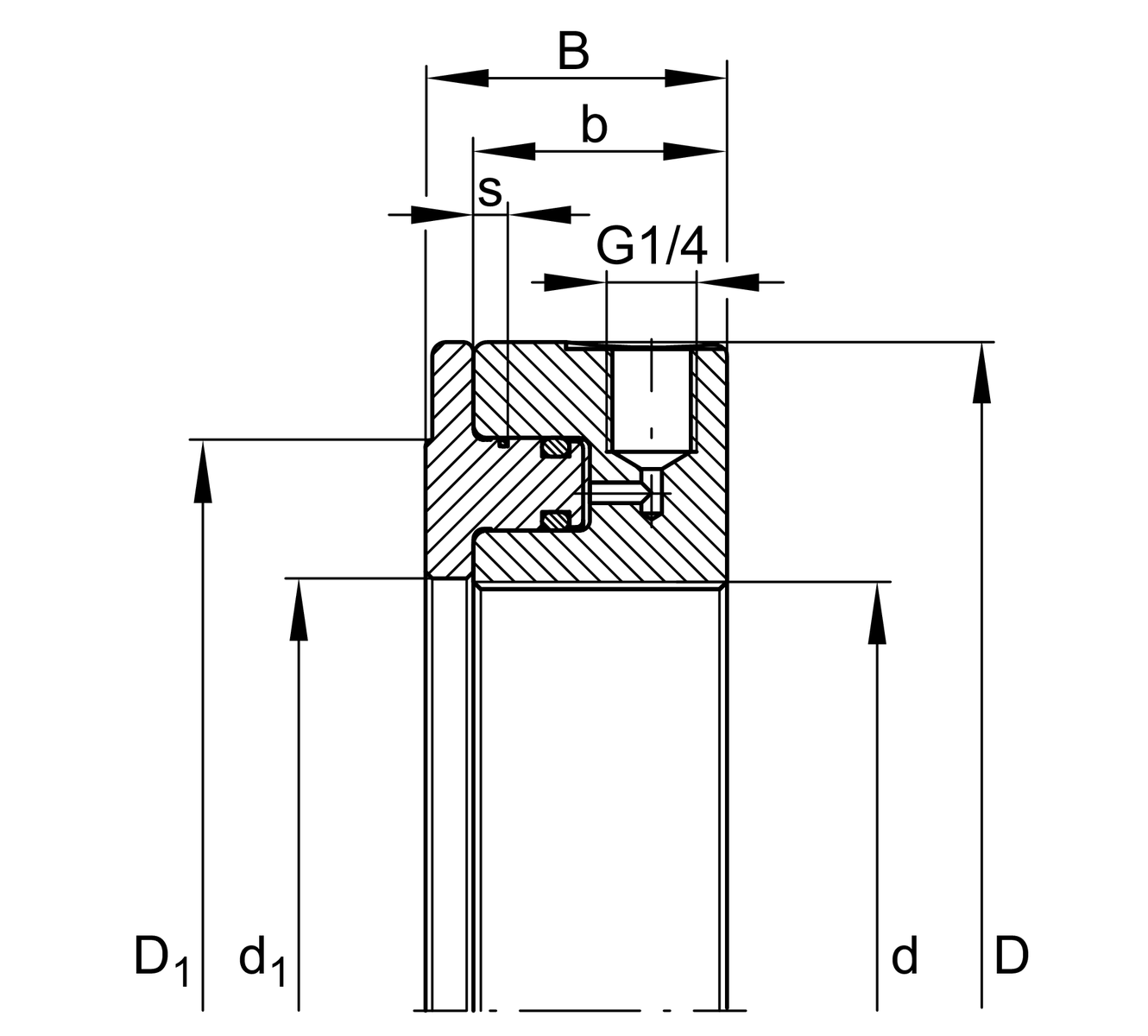

Technical data
| d | Tr900x7 | Thread |
| D | 1,070 mm | Outer Diameter |
| B | 101 mm | Width |
| b | 85 mm | Width press ring |
| D1 | 1,012 mm | |
| d1 | 903 mm | |
| s | 29 mm | Stroke, max. |
1,250.7 cm² | Piston surface | |
300 bar | Pressure, max. | |
3,752 kN | Drive-up force, max. | |
| ≈m | 210.4 kg | Weight |
Additional information
1 pc. Hydraulic nut, 3 pcs. Clamping screws, 1 pc. Screw plug, 1 pc. Connection nipple, 3 pcs. to 5 pcs. Threaded pins, 1 pc. Hand lever, 1 pc. Replacement seal set, 1 pc. User manual | Scope of delivery |
Your current product variant
| Series | E | metric fine pitch thread/trapezoid thread |
