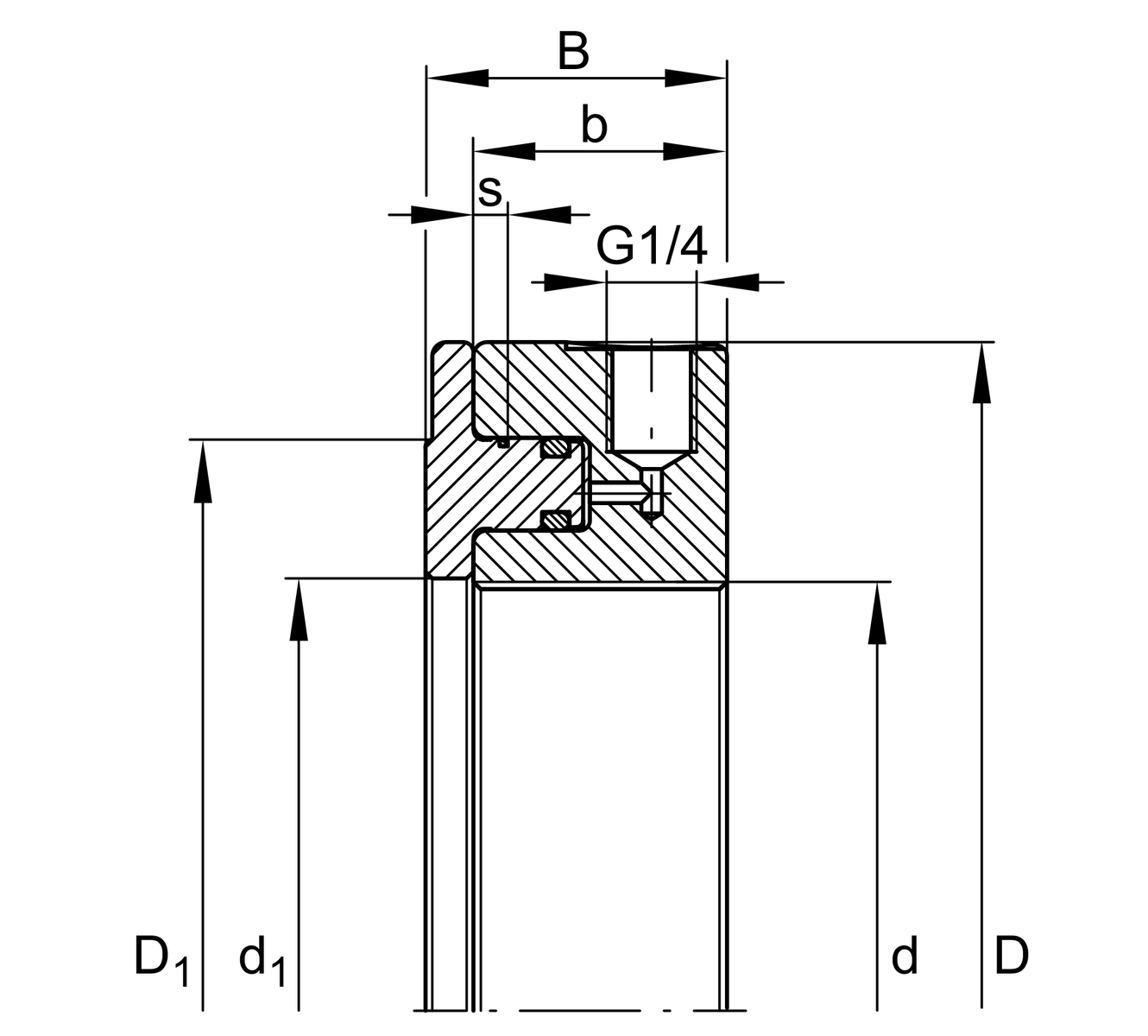

Technical data
| d | 69.873 mm | Thread nominal diameter |
68.958 mm | Thread flank diameter | |
UN | Thread type | |
18 | Number of thread convolutions per inch | |
| D | 140 mm | Outer Diameter |
| B | 40 mm | Width |
| b | 36 mm | Width press ring |
| D1 | 110 mm | |
| d1 | 71 mm | |
| s | 4 mm | Stroke, max. |
40.9 cm² | Piston surface | |
700 bar | Pressure, max. | |
286 kN | Drive-up force, max. | |
| ≈m | 3.69 kg | Weight |
Additional information
1 pc. Hydraulic nut, 3 pcs. Clamping screws, 1 pc. Screw plug, 1 pc. Connection nipple, 3 pcs. to 5 pcs. Threaded pins, 1 pc. Hand lever, 1 pc. Replacement seal set, 1 pc. User manual | Scope of delivery |
Your current product variant
| Series | E-INCH | inch thread by UN/ACME standard |
