HYDNUT600-E

Hydraulic nut HYDNUT600-E

Thêm vào yêu cầu báo giá

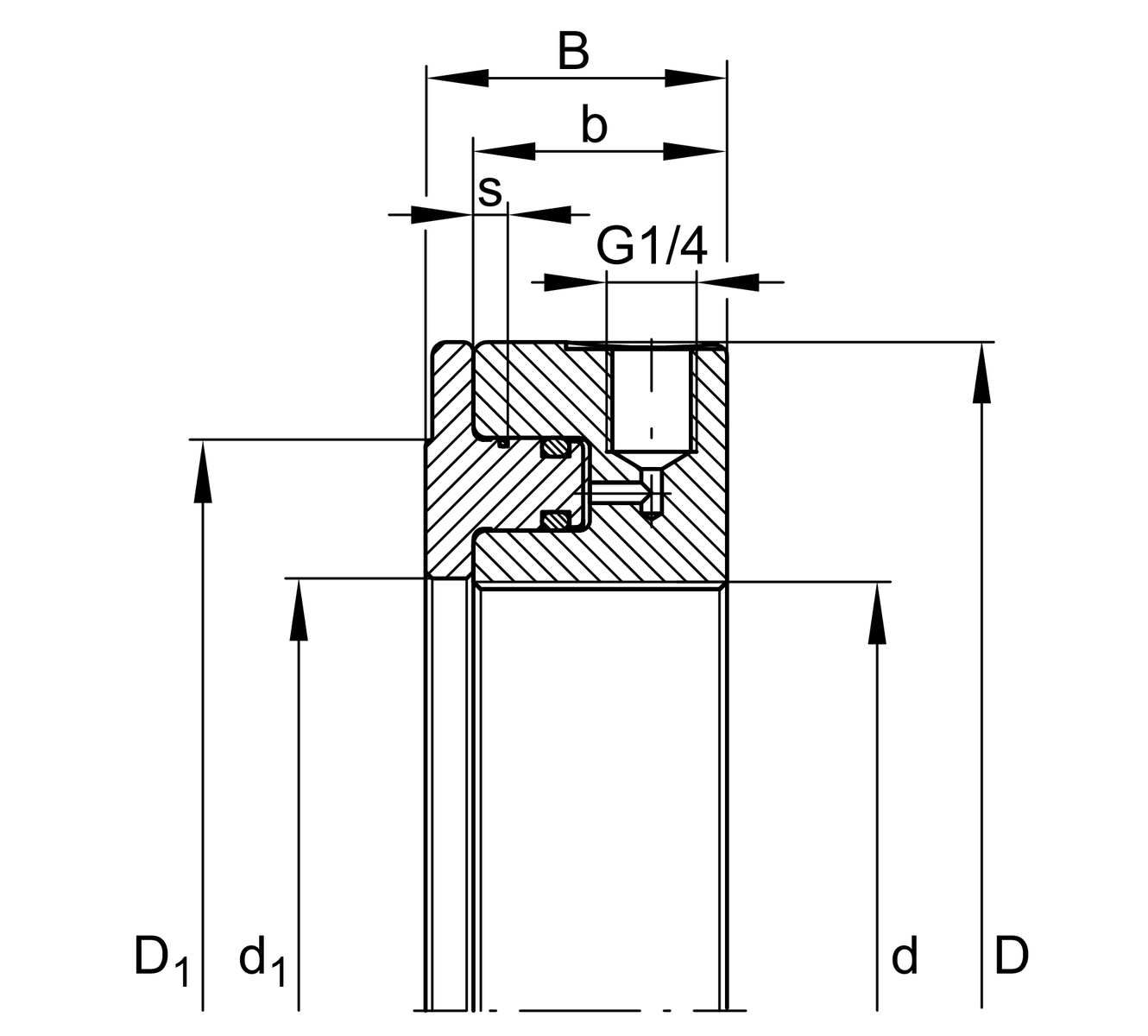

Technical data

d	Tr600x6	Thread
D	750 mm	Outer Diameter
B	87 mm	Width
b	74 mm	Width press ring
D₁	695 mm
d₁	603 mm
s	23 mm	Stroke, max.
	676.4 cm²	Piston surface
	400 bar	Pressure, max.
	2,706 kN	Drive-up force, max.
≈m	109.5 kg	Weight

Additional information

	1 pc. Hydraulic nut, 3 pcs. Clamping screws, 1 pc. Screw plug, 1 pc. Connection nipple, 3 pcs. to 5 pcs. Threaded pins, 1 pc. Hand lever, 1 pc. Replacement seal set, 1 pc. User manual	Scope of delivery

Your current product variant

Series	E	metric fine pitch thread/trapezoid thread
