HYDNUT530-E-INCH

Hydraulic nut HYDNUT530-E-INCH

Thêm vào yêu cầu báo giá

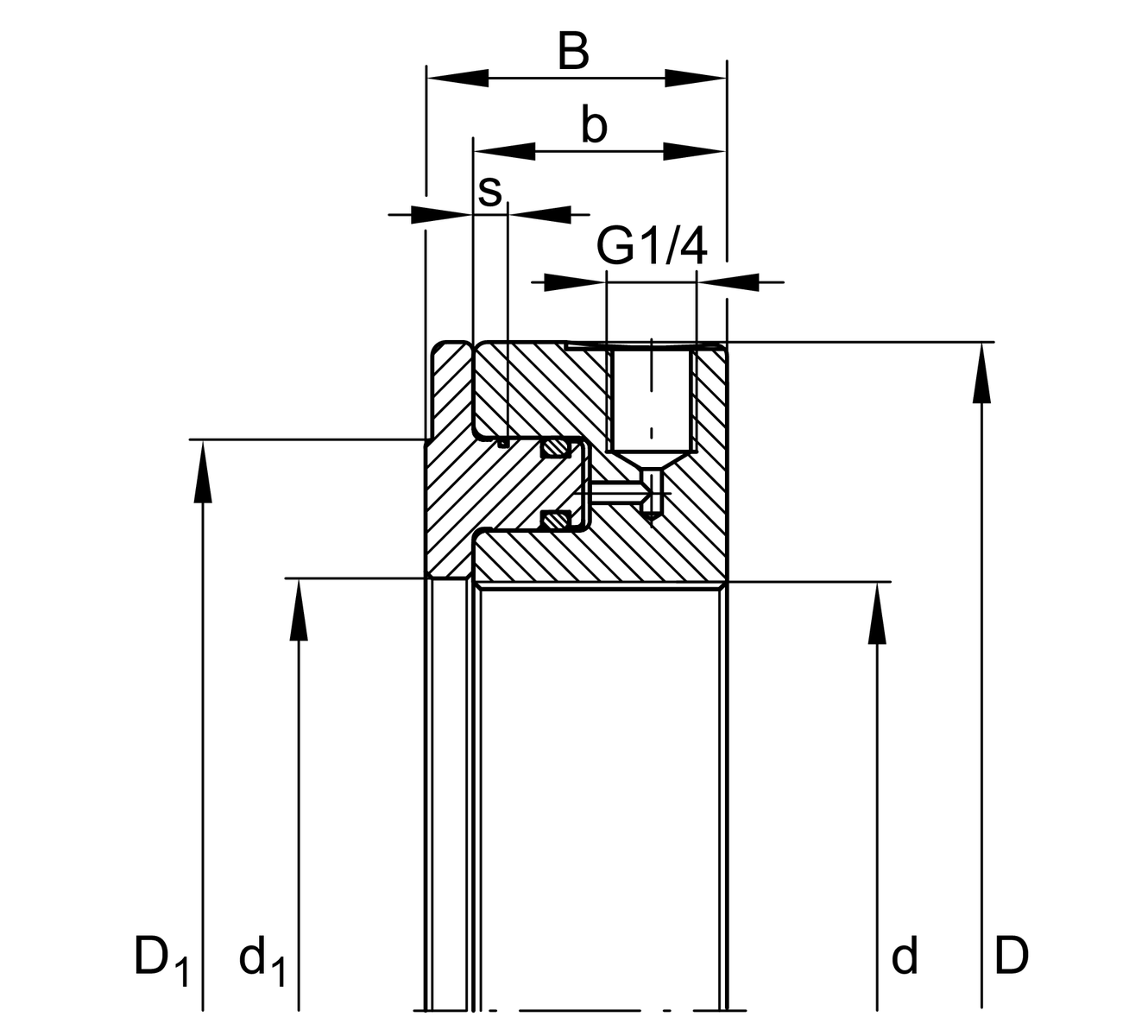

Technical data

d	530.022 mm	Thread nominal diameter
	526.339 mm	Thread flank diameter
	ACME	Thread type
	4	Number of thread convolutions per inch
D	670 mm	Outer Diameter
B	81 mm	Width
b	68 mm	Width press ring
D₁	617 mm
d₁	532 mm
s	22 mm	Stroke, max.
	562 cm²	Piston surface
	400 bar	Pressure, max.
	2,248 kN	Drive-up force, max.
≈m	84.9 kg	Weight

Additional information

	1 pc. Hydraulic nut, 3 pcs. Clamping screws, 1 pc. Screw plug, 1 pc. Connection nipple, 3 pcs. to 5 pcs. Threaded pins, 1 pc. Hand lever, 1 pc. Replacement seal set, 1 pc. User manual	Scope of delivery

Your current product variant

Series	E-INCH	inch thread by UN/ACME standard
