HYDNUT500-HEAVY

Hydraulic nut HYDNUT500-HEAVY

Thêm vào yêu cầu báo giá

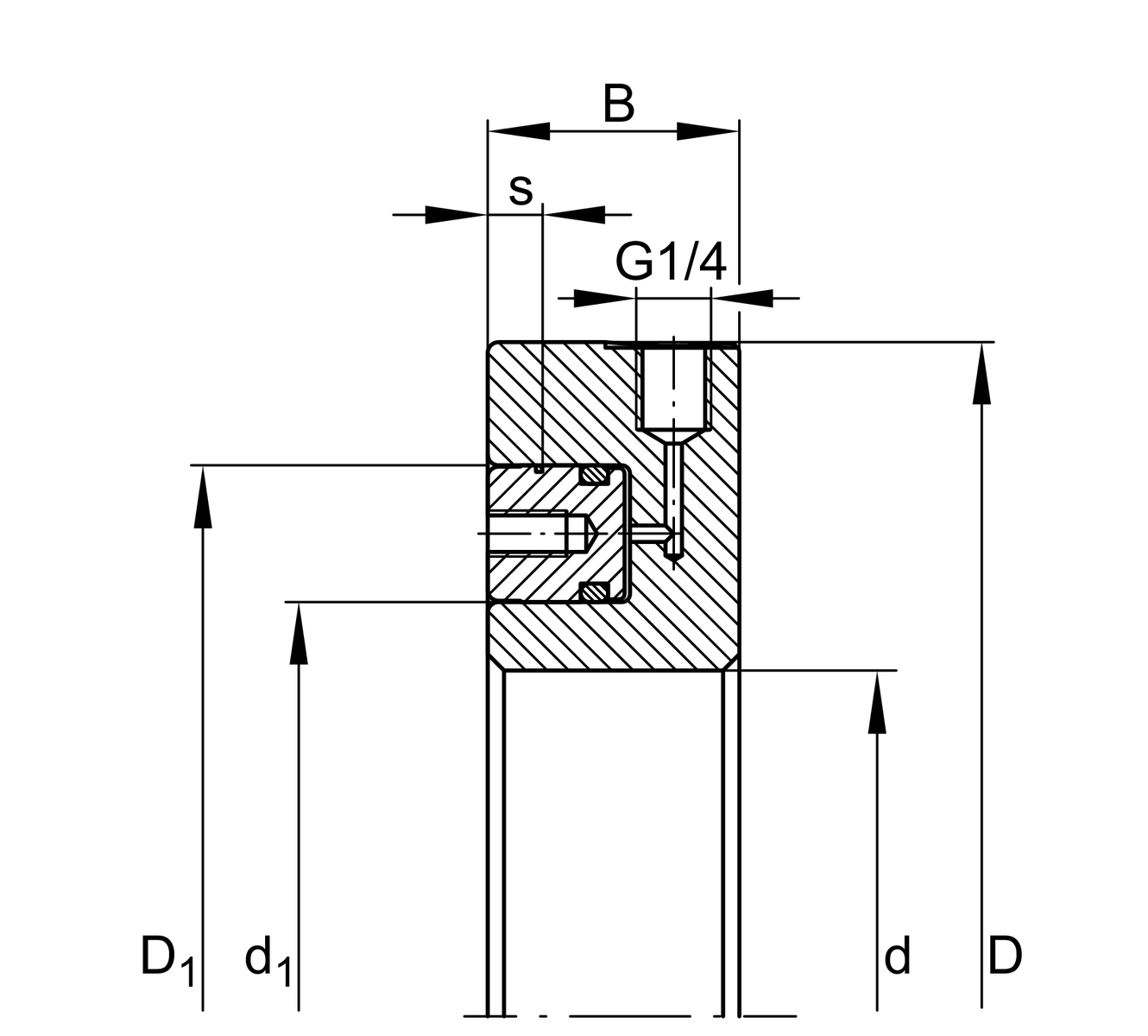

Technical data

d	500 mm	Inner diameter (tolerance: H7)
D	760 mm	Outer Diameter
B	66 mm	Width
D₁	675 mm
d₁	540 mm
s	20 mm	Stroke, max.
	1,288 cm²	Piston surface
	400 bar	Pressure, max.
	5,150 kN	Drive-up force, max.
≈m	131.1 kg	Weight

Additional information

	1 pc. Hydraulic nut, 1 pc. Screw plug, 1 pc. Connection nipple, 1 pc. Replacement seal set, 1 pc. User manual	Scope of delivery

Your current product variant

Series	HEAVY	reinforced version without thread
