UKP206
Plummer block housing unit UKP206
Thêm vào yêu cầu báo giá

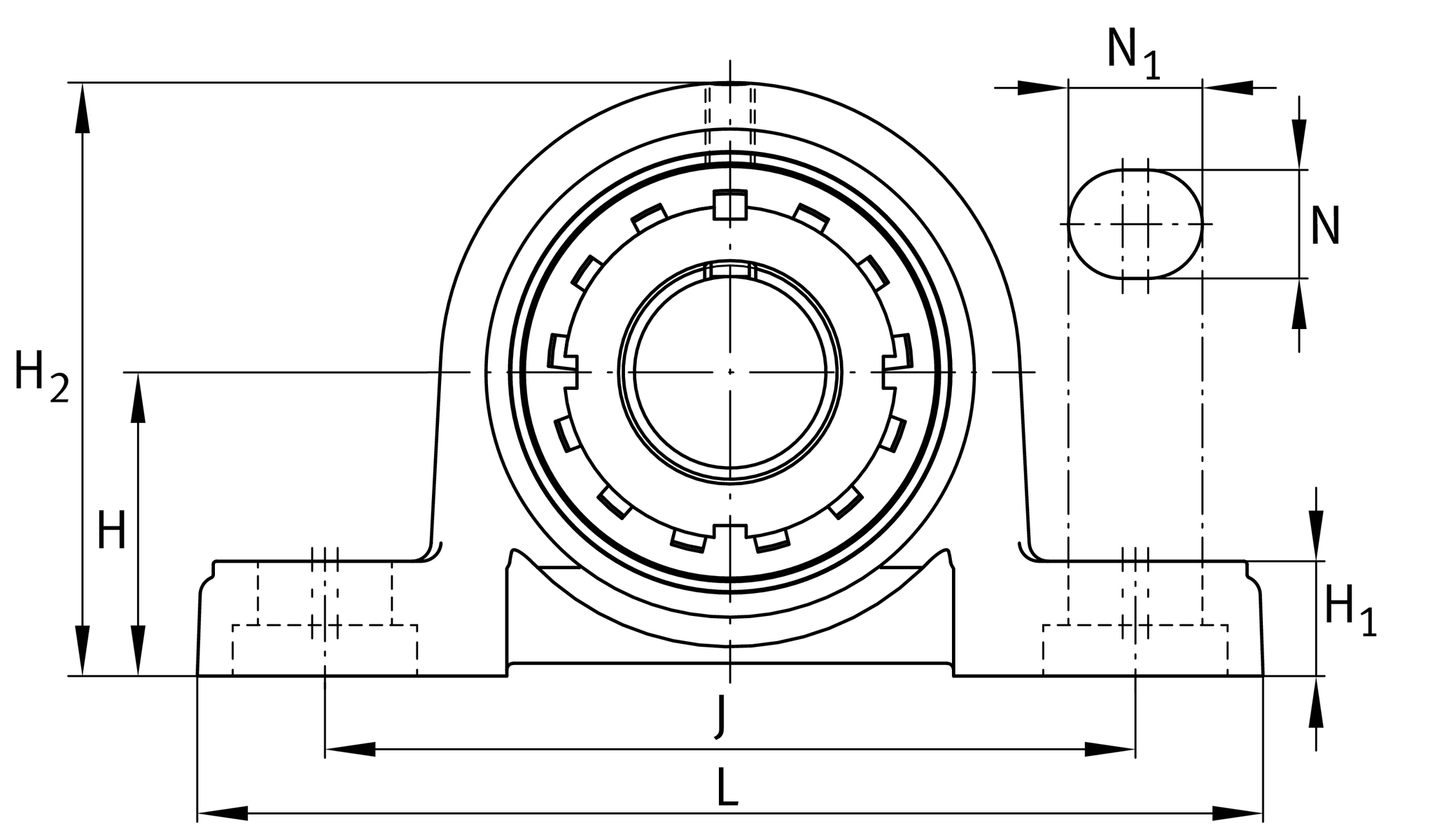

Main Dimensions & Performance Data
d
25 mm
Bore diameter
L
165 mm
Length total
H2
83 mm
Height
≈m
1.35 kg
Weight

Mounting dimensions
J
121 mm
Distance fixing bore
N
17 mm
Width (slot)
N1
21 mm
Length (slot)

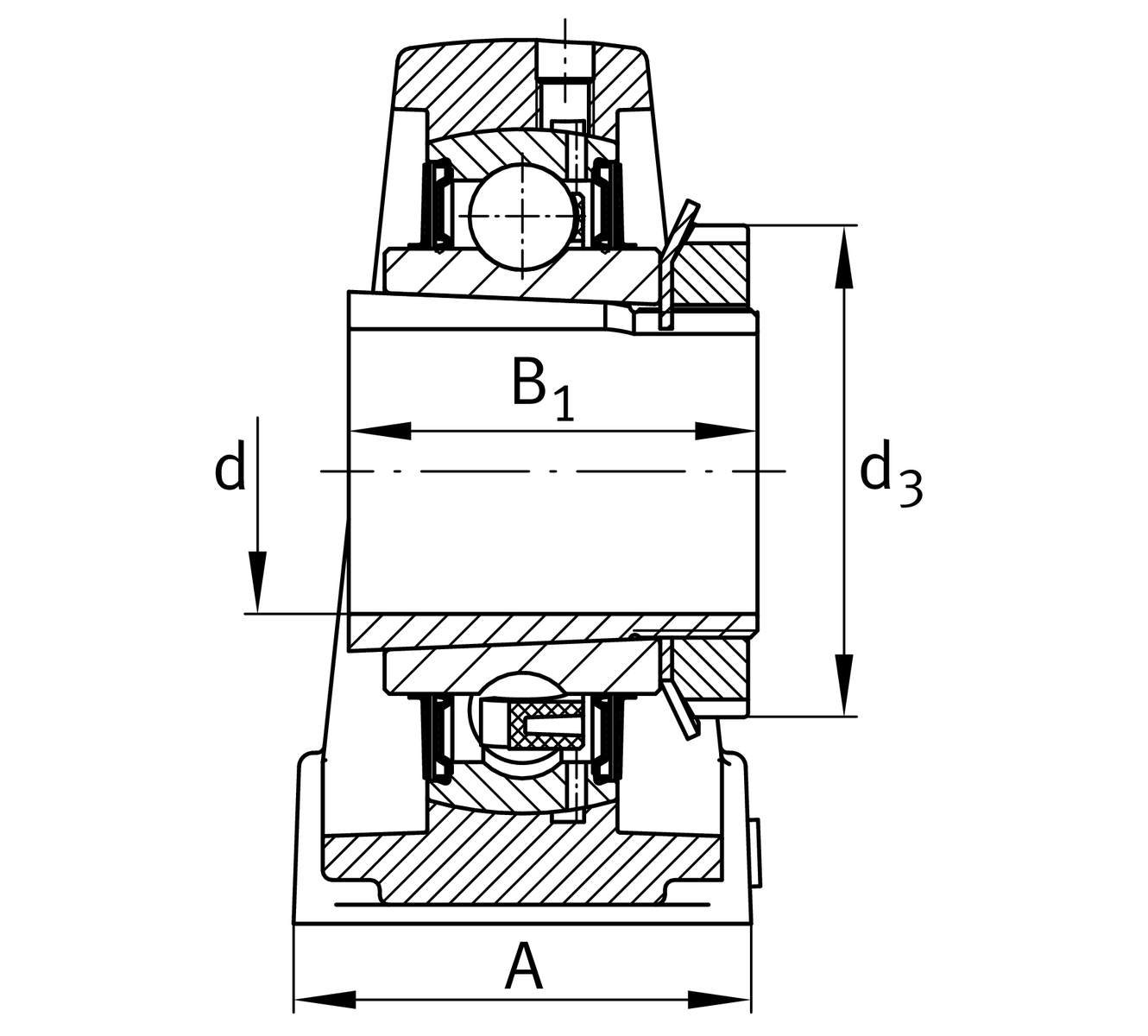

Dimensions
H
42.9 mm
Distance shaft axis
A
48 mm
Width (base)
H1
17 mm
Heigth (base)
B1
38 mm
Locking collar total width
Q
M6
Connection thread for lubrication

Additional information
P206
Housing
UK206
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
Housing clearanceJ7Normal swivel torque
