HYDNUT440-E

Hydraulic nut HYDNUT440-E

Thêm vào yêu cầu báo giá

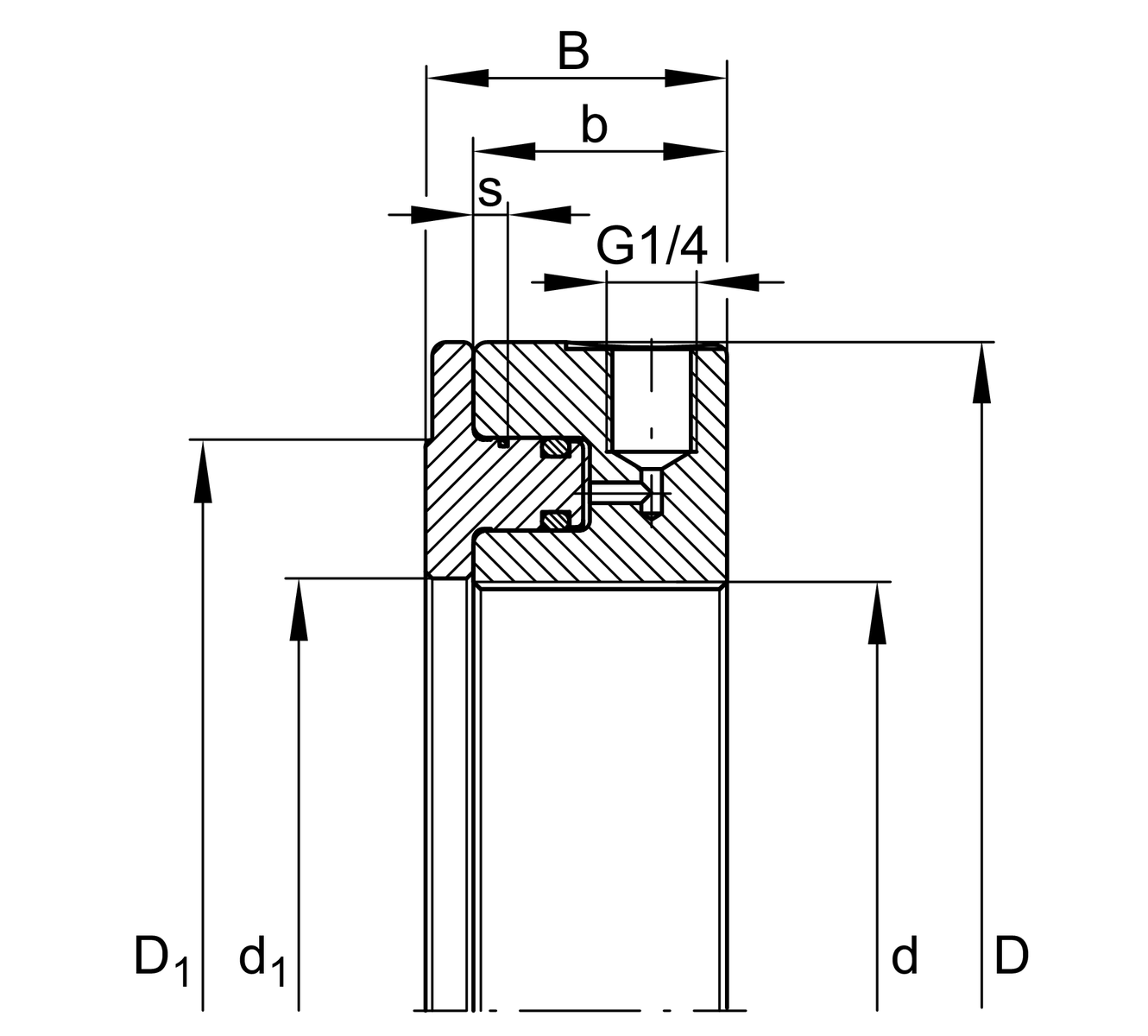

Technical data

d	Tr440x5	Thread
D	565 mm	Outer Diameter
B	75 mm	Width
b	63 mm	Width press ring
D₁	519 mm
d₁	442 mm
s	17 mm	Stroke, max.
	424.6 cm²	Piston surface
	400 bar	Pressure, max.
	1,699 kN	Drive-up force, max.
≈m	58.4 kg	Weight

Additional information

	1 pc. Hydraulic nut, 3 pcs. Clamping screws, 1 pc. Screw plug, 1 pc. Connection nipple, 3 pcs. to 5 pcs. Threaded pins, 1 pc. Hand lever, 1 pc. Replacement seal set, 1 pc. User manual	Scope of delivery

Your current product variant

Series	E	metric fine pitch thread/trapezoid thread
